• TEIN Street Advance Z Coilover Kit - 2016-2024 Honda Civic 2DR 1.5L Turbo Excl. Si FWD (FC3)
1 1

TEIN Street Advance Z Coilover Kit - 2016-2024 Honda Civic 2DR 1.5L Turbo Excl. Si FWD (FC3)

TEIN Street Advance Z Coilover Kit - 2016-2024 Honda Civic 2DR 1.5L Turbo Excl. Si FWD (FC3)

GSHH6-9UAS3

In stock

$940.50 USD
$990.00 USD $940.50 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Tein Street Advance Z Coilover Kit is a performance suspension upgrade designed specifically for the 2016-2024 Honda Civic 2-door models with a 1.5L turbo engine, excluding Si trims. Engineered to enhance handling and stance, these coilovers feature a stiffer yet comfortable ride with aggressive aesthetics. They incorporate 16-way adjustable damping settings, allowing precise tuning for different driving conditions and preferences. The coilovers are constructed to provide ample shock travel even at lower ride heights, ensuring improved stability and control. Their design emphasizes durability and performance, making them suitable for enthusiasts seeking a balance between daily comfort and spirited driving.

These coilovers are a direct fit for 2016-2024 Honda Civic 2-door models with the FC3 chassis, equipped with the 1.5L turbo engine. They are intended for street use, offering adjustable damping for customized ride quality and handling. Installation is a bolt-on process, compatible with the vehicle’s existing suspension points. The kit includes all necessary components for installation, providing a comprehensive upgrade for drivers aiming to improve their Civic’s stance and performance. Suitable for street and spirited driving, these coilovers deliver enhanced control and a more aggressive look without sacrificing daily comfort.

Overview

TEIN Street Advance Z Coilovers for your 2016-2024 Honda Civic 2DR 1.5L Turbo Excl. Si FWD (FC3) are designed for those who want more performance from their coilover system. Designed to provide a stiffer yet comfortable ride and aggressive stance, the street advance coilovers have 16 way adjustable settings giving you a much more noticeable feel in damping force change. These coilovers provide plenty of shock travel even lower than standard vehicle ride height. These coilovers adjust via an ultra strong ZT coated threaded sleeve and have updated internal components as well as external coating to dramatically increase durability and product life. Excellent choice for daily driving, and great for weekend track use.

Standard Features

  • Steel Construction
  • Twin Tube internal construction
  • Larger piston diameter for strut type front and rear (22mm)
  • 16-way Damping adjustment with over 200% increase in damping force change.*
  • Ride Height adjustable via spring seat
  • Powder coated damper body
  • Non-welded ZT coated Adjustment Tube
  • Full-Length Dust Boots
  • 1-piece Aluminum Spring Seat with Delrin Thrust Washer
  • Available for Overhaul
  • 1-year Manufacturers Defect Warranty*Over comparable Super Street damper, based on damping dyno graph data. Increase in damping force over comparable Super Street damper may vary for specific vehicle applications.

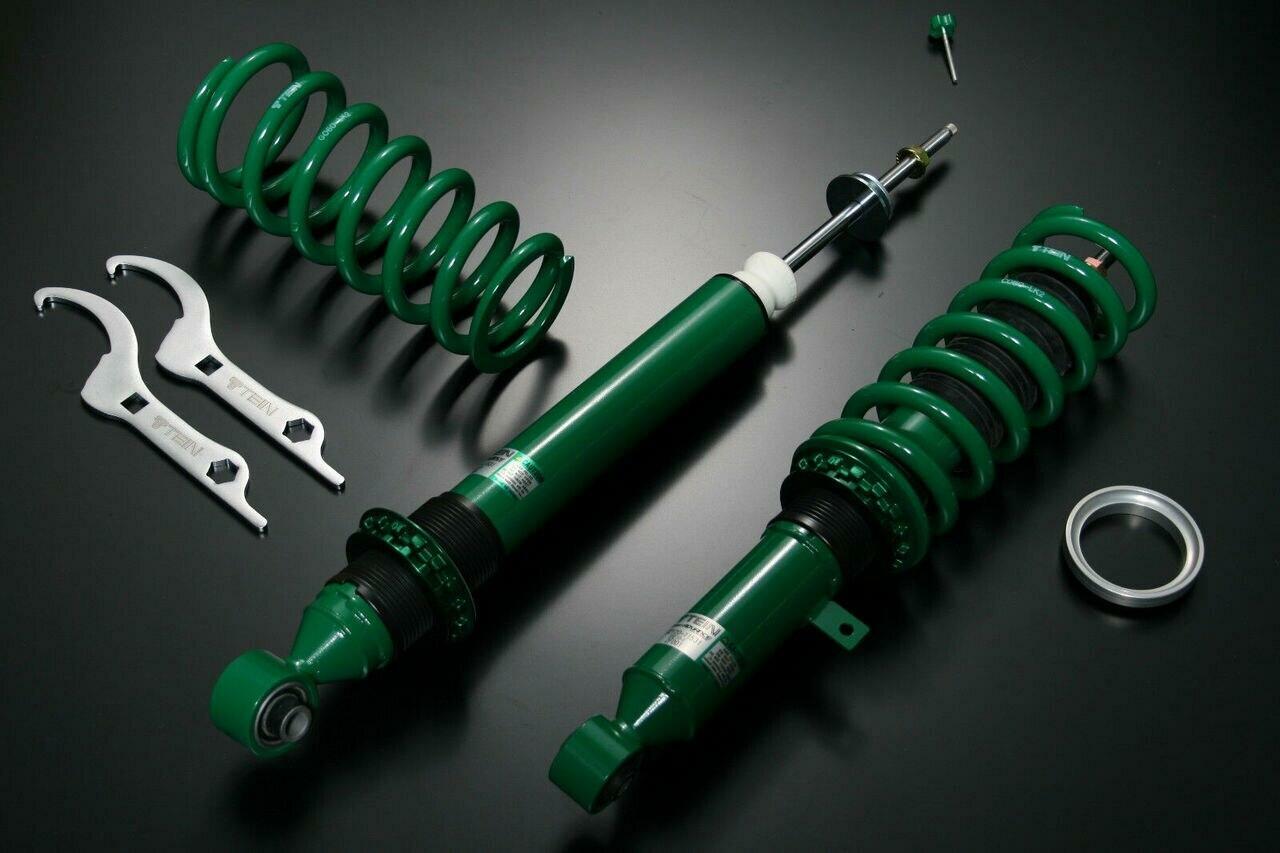

Contents of Damper Kit

  • 4 TEIN Coilover Shocks
  • 4 TEIN Coilover Springs (no sag version)**
  • 4 Rubber Bump Stops
  • 2 Hook Spanners
  • 4 Spring Seats
  • 4 Spring Locks
  • 4 Dust Covers(some kits reuse stock dust covers)***
  • 4 Delrin Thrust Washers
  • 1 TEIN Sticker Sheet****
  • 1 Instruction Manual**Some applications include helper springs***Some kits will retain use of OEM Dust Covers Spring Seats "Instruction Manual"****(Note that Stickers do not come included for all JDM part numbers and for certain applications)
Specifications
Part Number GSHH6-9UAS3
Part Name Street Advance Z Coilovers
Vehicle 2016-2024 Honda Civic 2DR 1.5L Turbo Excl. Si FWD (FC3)
Chassis FC3
Engine 1500
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front No
Ride-Height Adjustable - Rear No
Upper Mounts - Front OEM
Upper Mounts - Rear Rubber Reinforced
Spring Rates - Front 5 Kg/mm (279.99 lbs/in)
Spring Rates - Rear 5 Kg/mm (279.99 lbs/in)
Ride Height Range - Front -0.8 to -3.0
Ride Height Range - Rear -1.0 to -3.1
EDFC Compatible Yes
Notes Not compatible with vehicles produced in China. FT: OE dust boot and bump rubber need to be modified. RR: use of EDFC Series is recommended, as it's difficult to adjust damping force by hand due to vehicle structure.
Vehicle Fitment
  • 2016 Honda Civic 2DR 1.5L Turbo Excl. Si FWD (FC3)
  • 2017 Honda Civic 2DR 1.5L Turbo Excl. Si FWD (FC3)
  • 2018 Honda Civic 2DR 1.5L Turbo Excl. Si FWD (FC3)
  • 2019 Honda Civic 2DR 1.5L Turbo Excl. Si FWD (FC3)
  • 2020 Honda Civic 2DR 1.5L Turbo Excl. Si FWD (FC3)
  • 2021 Honda Civic 2DR 1.5L Turbo Excl. Si FWD (FC3)
  • 2022 Honda Civic 2DR 1.5L Turbo Excl. Si FWD (FC3)
  • 2023 Honda Civic 2DR 1.5L Turbo Excl. Si FWD (FC3)
  • 2024 Honda Civic 2DR 1.5L Turbo Excl. Si FWD (FC3)
