TEIN Super Drift Coilover Kit - 1991-1999 Nissan 180SX RWD (RPS13)

TEIN Super Drift Coilover Kit - 1991-1999 Nissan 180SX RWD (RPS13)

GSN20-D1SS1

Out of stock

$1,805.00 USD
$1,900.00 USD $1,805.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Tein Super Drift Coilover Kit is a high-performance suspension upgrade designed specifically for the 1991-1999 Nissan 180SX RWD (RPS13). Engineered with input from professional D1 drivers, these coilovers feature optimized spring rates and damping force characteristics to enhance vehicle control during drifting maneuvers. The kit includes full-length dampers with 16 levels of damping force adjustment, allowing drivers to fine-tune their suspension setup for optimal handling and slide initiation. Pillowball upper mounts with front camber adjustment further improve steering response and cornering stability, making this coilover system ideal for competitive drifting and enthusiast tuning.

This coilover kit is a direct bolt-on upgrade for Nissan 180SX RWD models from 1991 to 1999, providing a significant performance boost for street, track, or drift applications. Designed for easy installation, it offers adjustable ride height and damping settings to suit various driving styles and conditions. The kit includes all necessary components for a complete upgrade, ensuring compatibility with the vehicle's chassis and suspension geometry. Whether for competitive drifting or spirited driving, these coilovers deliver enhanced control, stability, and customization options to meet the demands of serious enthusiasts.

Overview

TEIN's support of competition D1 drivers and vehicles has led to the development of the TEIN Super Drift dampers, For 1991-1999 Nissan 180SX RWD (RPS13) which were specifically developed for the avid drifter. Spring rates and damping force characteristics were chosen to increase car control in a drift, and to aid in initiating a slide. Full length and 16 level damping force adjustment allow suspension tuning for drivers at all skill levels. Pillowball upper mounts with front camber adjustment plates are included*. EDFC compatible for quick and hassle free dampening force changes. Super Drift is the suspension of choice for all levels of drifters.

Standard Features

  • Steel Construction
  • Twin Tube internal construction
  • Ride Height adjustable via threaded body and spring seats
  • 16 way adjustable dampers, compression and rebound combined
  • Special damping force curves to improve drift control
  • Pillow ball upper mounts for increased steering feel
  • Upper camber adjustment on front for strut type vehicles
  • Larger piston diameter for strut type front and rear (22mm)
  • EDFC (Electronic Damping Force Controller) compatible
  • Anodized brackets with Teflon coated shock body for heavy duty rust prevention
  • 1-year manufacturer's limited warranty

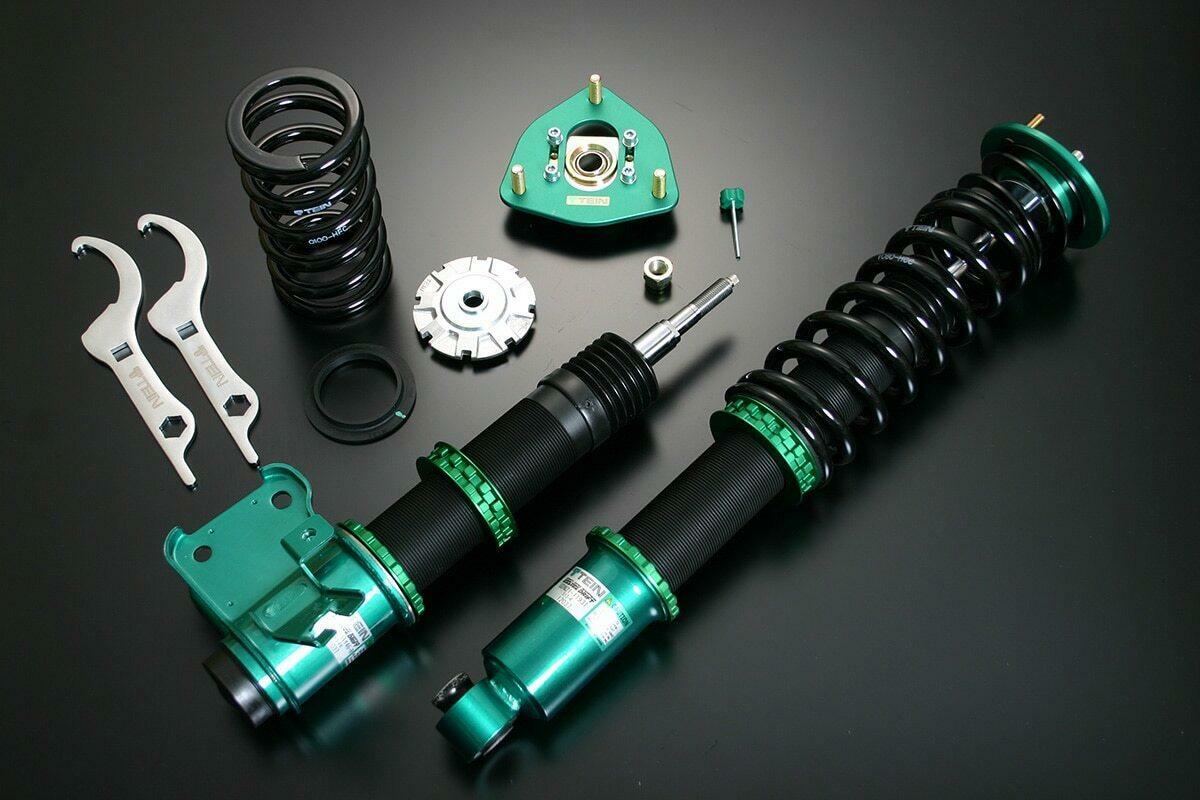

Contents of Damper Kit

  • Adjustable Shock Absorber x4
  • Bump Rubber x4
  • Main Spring x4
  • Hook Spanner x2
  • Some applications include helper springs
  • Dust Cover x4
  • Pillow ball Upper Mount x4
  • Instruction Manual x1
  • Lower Spring Seat x4
  • Sticker Sheet x1
  • Seat Lock x12
Specifications
Part Number GSN20-D1SS1
Part Name Super Drift Coilovers
Vehicle 1991-1999 Nissan 180SX RWD (RPS13)
Chassis RPS13
Engine 2000
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front Yes
Ride-Height Adjustable - Rear Yes
Upper Mounts - Front Camber Adjustable
Upper Mounts - Rear Pillowball
Spring Rates - Front 10 Kg/mm (559.97 lbs/in)
Spring Rates - Rear 8 Kg/mm (447.98 lbs/in)
Ride Height Range - Front 0.7 to -3.6
Ride Height Range - Rear 1.2 to -4.4
EDFC Compatible Yes
Vehicle Fitment
  • 1991 Nissan 180SX RWD (RPS13)
  • 1992 Nissan 180SX RWD (RPS13)
  • 1993 Nissan 180SX RWD (RPS13)
  • 1994 Nissan 180SX RWD (RPS13)
  • 1995 Nissan 180SX RWD (RPS13)
  • 1996 Nissan 180SX RWD (RPS13)
  • 1997 Nissan 180SX RWD (RPS13)
  • 1998 Nissan 180SX RWD (RPS13)
  • 1999 Nissan 180SX RWD (RPS13)
