• TEIN Super Racing Coilover Kit - 2004-2007 Subaru WRX STI AWD (GDB(E-))
1 1

TEIN Super Racing Coilover Kit - 2004-2007 Subaru WRX STI AWD (GDB(E-))

TEIN Super Racing Coilover Kit - 2004-2007 Subaru WRX STI AWD (GDB(E-))

DSS64-81LS1

Out of stock

$3,920.00 USD
$3,920.00 USD $3,920.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The TEIN Super Racing Coilover Kit is a high-performance suspension upgrade designed specifically for the 2004-2007 Subaru WRX STI AWD (GDB(E)). Engineered from actual competition experience, these coilovers feature fully adjustable dampers that allow precise tuning for various track conditions and weather scenarios. The kit incorporates a full-length adjustment system, enabling independent adjustment of shock length and spring pre-load. With separate 16-way adjustments for compression and rebound damping, users can fine-tune the suspension to optimize handling, stability, and ride quality. The design also includes camber and caster adjustment capabilities, providing comprehensive alignment options for enhanced cornering and steering response.

This coilover kit is tailored for Subaru WRX STI models from 2004 to 2007, equipped with the GDB(E) chassis. It is intended for enthusiasts seeking a versatile suspension solution suitable for track days, spirited driving, or aggressive street use. The installation is a direct bolt-on upgrade that replaces factory components, offering improved adjustability and performance. The kit includes all necessary hardware for installation, ensuring a straightforward setup process. Ideal for performance-oriented drivers, this coilover system enhances vehicle handling, cornering grip, and overall driving dynamics across a range of conditions.

Overview

Developed from actual competition, TEIN was able to create a fully adjustable damper that can be easily tuned for any track and weather conditions. TEIN Super Racing Dampers for your 2004-2007 Subaru WRX STI AWD (GDB(E-)) utilize a full-length adjustment system to allow shock length and spring pre-load to be adjusted independently. Separate 16 - way adjustments for compression and rebound damping enable the user to fine tune for any situation. TEIN has incorporated both camber and caster adjustment into the front pillow ball upper mounts for strut type vehicles. External reservoirs on SA type dampers allow for added oil capacity. Spring rates and shock valving were derived from many years of motorsports support, to provide the ultimate damper for competition. Designed and tested for circuit use by advanced and professional drivers who are seeking complete damper tuning capability.

Standard Features

  • Steel Construction
  • Mono Tube internal construction
  • Inverted design for strut type front and rear
  • Ride Height adjustable via threaded body and spring seats
  • 16 x 16 way adjustable dampers, compression and rebound separately adjustable
  • Pillow ball upper mounts for increased steering feel
  • Upper and lower camber adjustment on front for strut type vehicles
  • Caster adjustment on front for strut type vehicles
  • Dual EDFC (Electronic Damping Force Controller) compatible
  • Powder coated brackets with Teflon coated shock body for heavy duty rust prevention
  • Available for Overhaul & Revalving
  • 1 year warranty

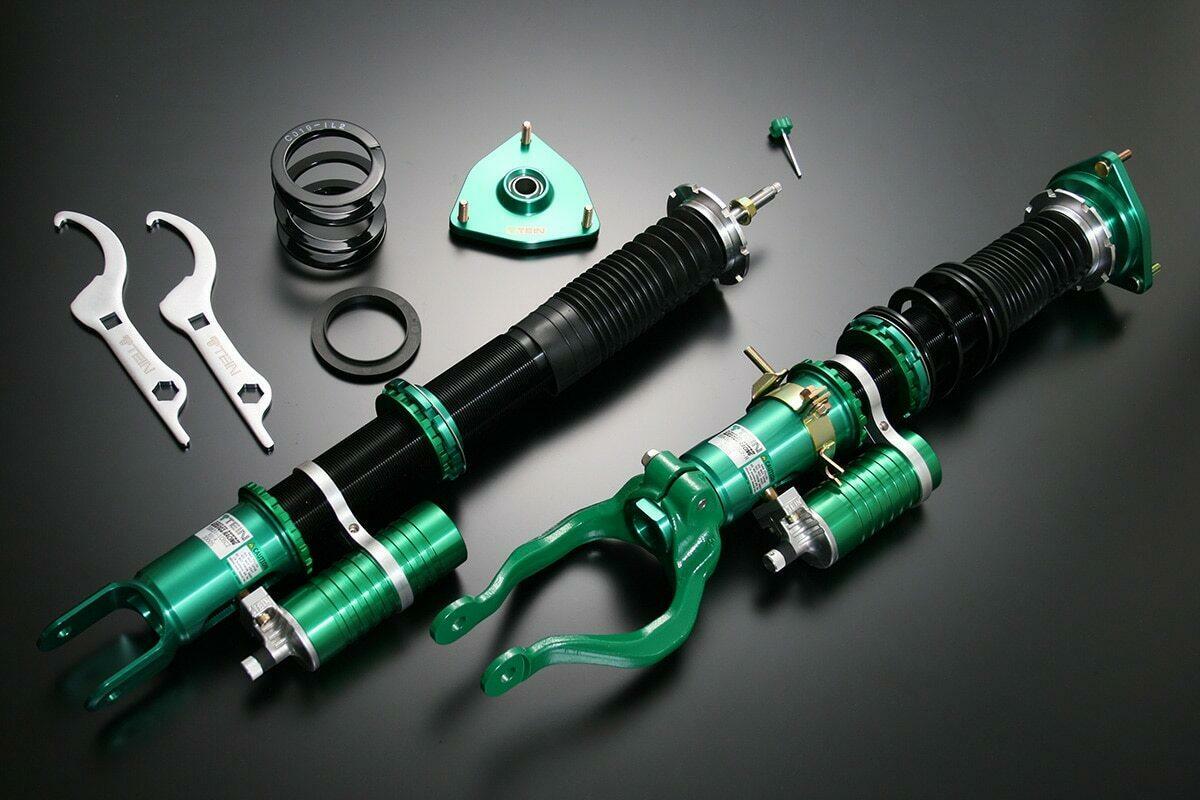

What's Included

  • Adjustable Shock Absorber x 4
  • Bump Rubber x 4
  • Hook Spanner x 2
  • Some applications include helper springs Dust Cover x 4
  • Pillow ball Upper Mount x 4
  • Instruction Manual x 1
  • Lower Spring Seat x 4
  • Sticker Sheet x 1
  • Seat Lock x 12
Specifications
Part Number DSS64-81LS1
Part Name Super Racing Coilovers
Vehicle 2004-2007 Subaru WRX STI AWD (GDB(E-))
Chassis GDB(E-)
Engine 2000
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front Yes
Ride-Height Adjustable - Rear Yes
Upper Mounts - Front Camber Caster Adjustable
Upper Mounts - Rear Camber Adjustable
Spring Rates - Front 12 Kg/mm (671.97 lbs/in)
Spring Rates - Rear 9 Kg/mm (503.98 lbs/in)
Ride Height Range - Front -0.8 to -2.4
Ride Height Range - Rear -0.2 to -1.8
EDFC Compatible Yes
Notes Ride height drop shown is recommended value for circuit use and might not meet vehicle safety regulations.
Vehicle Fitment
  • 2004 Subaru WRX STI AWD (GDB(E-))
  • 2005 Subaru WRX STI AWD (GDB(E-))
  • 2006 Subaru WRX STI AWD (GDB(E-))
  • 2007 Subaru WRX STI AWD (GDB(E-))
