• TEIN Super Racing Coilover Kit - 2009-2024 Nissan GT-R AWD (R35)
1 1

TEIN Super Racing Coilover Kit - 2009-2024 Nissan GT-R AWD (R35)

TEIN Super Racing Coilover Kit - 2009-2024 Nissan GT-R AWD (R35)

DSK00-81LS1

Out of stock

$3,910.00 USD
$3,910.00 USD $3,910.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The TEIN Super Racing Coilover Kit for the 2009-2024 Nissan GT-R AWD (R35) is a high-performance suspension upgrade designed for track and street use. Developed from actual competition experience, these coilovers feature fully adjustable dampers that allow precise tuning for various driving conditions. The kit includes a full-length adjustment system enabling independent shock length and spring pre-load adjustments. With 16-way compression and rebound damping adjustments, users can fine-tune the suspension to optimize handling, stability, and comfort. The coilovers also incorporate camber and caster adjustment features, providing comprehensive setup options for enthusiasts seeking maximum performance and customization.

Designed specifically for the 2009-2024 Nissan GT-R AWD (R35), these coilovers are a direct replacement for the factory suspension, offering enhanced control and responsiveness. Suitable for both street and track applications, they allow for aggressive cornering and improved ride quality. Installation is straightforward for those familiar with coilover setups, and the kit includes all necessary components for a complete upgrade. Whether for daily driving, spirited street use, or competitive racing, the TEIN Super Racing Coilover Kit delivers adjustable, durable performance to meet demanding driving needs.

Overview

Developed from actual competition, TEIN was able to create a fully adjustable damper that can be easily tuned for any track and weather conditions. TEIN Super Racing Dampers for your 2009-2024 Nissan GT-R AWD (R35) utilize a full-length adjustment system to allow shock length and spring pre-load to be adjusted independently. Separate 16 - way adjustments for compression and rebound damping enable the user to fine tune for any situation. TEIN has incorporated both camber and caster adjustment into the front pillow ball upper mounts for strut type vehicles. External reservoirs on SA type dampers allow for added oil capacity. Spring rates and shock valving were derived from many years of motorsports support, to provide the ultimate damper for competition. Designed and tested for circuit use by advanced and professional drivers who are seeking complete damper tuning capability.

Standard Features

  • Steel Construction
  • Mono Tube internal construction
  • Inverted design for strut type front and rear
  • Ride Height adjustable via threaded body and spring seats
  • 16 x 16 way adjustable dampers, compression and rebound separately adjustable
  • Pillow ball upper mounts for increased steering feel
  • Upper and lower camber adjustment on front for strut type vehicles
  • Caster adjustment on front for strut type vehicles
  • Dual EDFC (Electronic Damping Force Controller) compatible
  • Powder coated brackets with Teflon coated shock body for heavy duty rust prevention
  • Available for Overhaul & Revalving
  • 1 year warranty

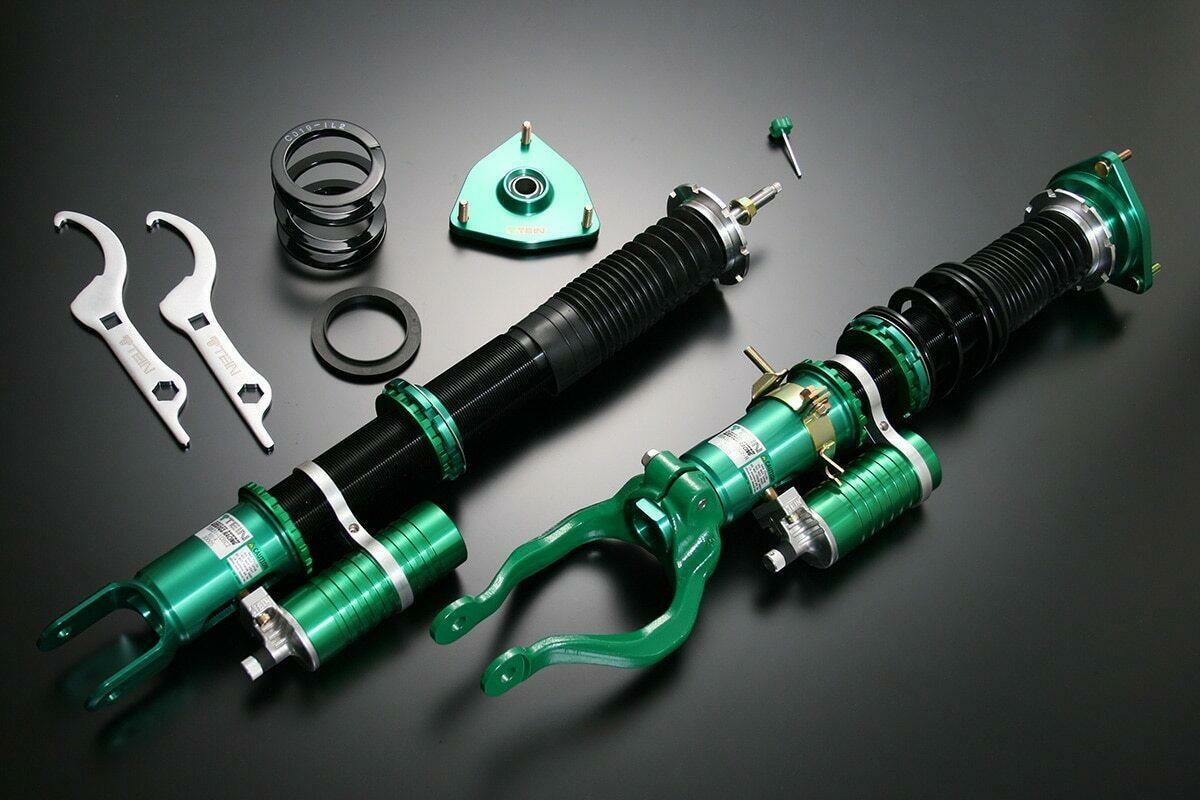

What's Included

  • Adjustable Shock Absorber x 4
  • Bump Rubber x 4
  • Hook Spanner x 2
  • Some applications include helper springs Dust Cover x 4
  • Pillow ball Upper Mount x 4
  • Instruction Manual x 1
  • Lower Spring Seat x 4
  • Sticker Sheet x 1
  • Seat Lock x 12
Specifications
Part Number DSK00-81LS1
Part Name Super Racing Coilovers
Vehicle 2009-2024 Nissan GT-R AWD (R35)
Chassis R35
Engine 3800
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front Yes
Ride-Height Adjustable - Rear Yes
Upper Mounts - Front Pillowball
Upper Mounts - Rear Pillowball
Spring Rates - Front 16 Kg/mm (895.96 lbs/in)
Spring Rates - Rear 10 Kg/mm (559.97 lbs/in)
Ride Height Range - Front 0.0 to -1.0
Ride Height Range - Rear 0.6 to -1.0
EDFC Compatible Yes
Notes 2DR/6CYL/ Springs sold separately.
Vehicle Fitment
  • 2009 Nissan GT-R AWD (R35)
  • 2010 Nissan GT-R AWD (R35)
  • 2011 Nissan GT-R AWD (R35)
  • 2012 Nissan GT-R AWD (R35)
  • 2013 Nissan GT-R AWD (R35)
  • 2014 Nissan GT-R AWD (R35)
  • 2015 Nissan GT-R AWD (R35)
  • 2016 Nissan GT-R AWD (R35)
  • 2017 Nissan GT-R AWD (R35)
  • 2018 Nissan GT-R AWD (R35)
  • 2019 Nissan GT-R AWD (R35)
  • 2020 Nissan GT-R AWD (R35)
  • 2021 Nissan GT-R AWD (R35)
  • 2022 Nissan GT-R AWD (R35)
  • 2023 Nissan GT-R AWD (R35)
  • 2024 Nissan GT-R AWD (R35)
