TEIN Type HG Coilover Kit - 2001-2002 Subaru WRX STI AWD (GDB(A/B))

TEIN Type HG Coilover Kit - 2001-2002 Subaru WRX STI AWD (GDB(A/B))

DSS28-W1LS2

Out of stock

$2,820.00 USD
$2,820.00 USD $2,820.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Tein Type HG Coilover Kit is a high-performance suspension component designed specifically for the 2001-2002 Subaru WRX STI AWD (GDB A/B). Engineered for rally and dirt trail racing, these coilovers feature adjustable compression and rebound damping forces, allowing precise tuning for various road surfaces. The twin-tube design, constructed from durable steel, ensures robustness and longevity in demanding off-road conditions. A unique free piston system is incorporated to prevent aeration, maintaining consistent performance during intense driving. These coilovers are built to withstand rough terrain while providing optimal handling, stability, and ride quality, making them ideal for rally enthusiasts and off-road racers seeking reliable suspension upgrades.

Designed for 2001-2002 Subaru WRX STI AWD models, these coilovers serve as a direct upgrade to factory suspension components. They are suitable for use on rally stages, dirt trails, or any off-road application requiring adjustable ride height and damping. Installation involves bolt-on replacement of existing struts, with no additional modifications needed. The kit includes the coilover units, providing a comprehensive suspension upgrade for improved performance and control. Whether for competitive racing or serious off-road driving, these coilovers enhance handling, durability, and driver confidence across challenging terrains.

Overview

TEIN Type HG Coilovers for your 2001-2002 Subaru WRX STI AWD (GDB(A/B)) is designed for rally and / or dirt trail racing. It meets the demands of any road surface with its individual compression / rebound damping force adjustment, and ride height adjustment. Utilizes a twin-tube design, and is constructed with steel for additional durability on rough courses. In order to prevent aeration that can diminish performance, a unique free piston was adapted in the construction of the HG. Developed from TEIN's extensive experience gained in Rally competitions and support.

Standard Features

  • Steel Construction for added durability
  • Twin Tube internal construction
  • Ride Height adjustable via adjustable spring seats
  • 16 x 16 way adjustable dampers, compression and rebound separately adjustable
  • External reservoirs for additional oil capacity and increased stroke
  • 3 stage powder coat
  • Some applications utilize large diameter spring seats which allows both OEM and aftermarket springs to be used
  • 1-year Manufacturers Defect Warranty
  • Available for Overhaul

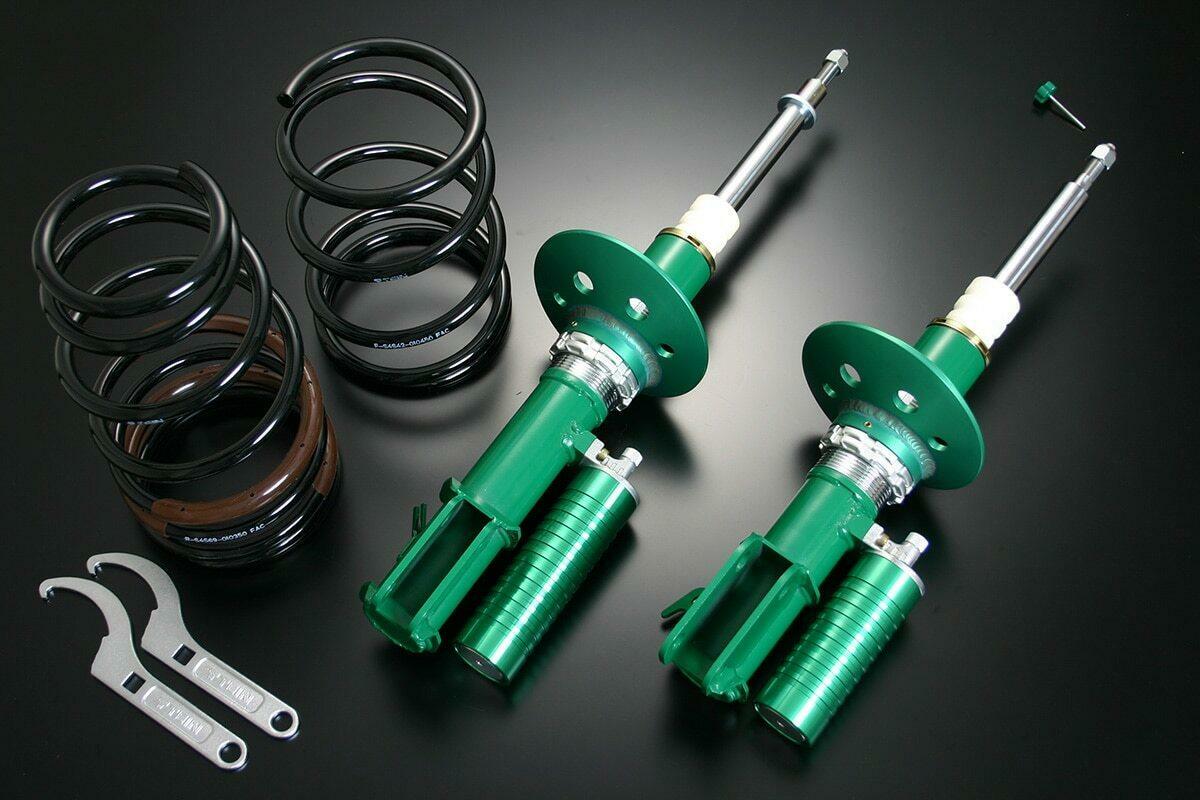

What's Included

  • Adjustable Shock Absorber x 4
  • Hook Spanner x 2
  • Main Spring x 4
  • Instruction manual
  • Upper Spring Seat Included in some applications
  • Lower Spring Seat x 4
  • Seat Lock x 4
  • Bump Rubber x 4
Specifications
Part Number DSS28-W1LS2
Part Name Type HG Coilovers
Vehicle 2001-2002 Subaru WRX STI AWD (GDB(A/B))
Chassis GDB(A/B)
Engine 2000
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front No
Ride-Height Adjustable - Rear No
Upper Mounts - Front OEM
Upper Mounts - Rear OEM
Spring Rates - Front 4.5 Kg/mm (251.99 lbs/in)
Spring Rates - Rear 3.5 Kg/mm (195.99 lbs/in)
Ride Height Range - Front Not Applicable
Ride Height Range - Rear Not Applicable
EDFC Compatible No
Notes Not compatible with RA model because springs are no longer available. Compatible with Spec C model only. FT/RR: Please use OE dust boots from non-inverted Type GC8 or GDB model.
Vehicle Fitment
  • 2001 Subaru WRX STI AWD (GDB(A/B))
  • 2002 Subaru WRX STI AWD (GDB(A/B))
