TEIN Type HG Coilover Kit - 2002-2003 Subaru Impreza WRX 4DR AWD (GDA)

TEIN Type HG Coilover Kit - 2002-2003 Subaru Impreza WRX 4DR AWD (GDA)

DSS28-W1LS2

Out of stock

$2,820.00 USD
$2,820.00 USD $2,820.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Tein Type HG Coilover Kit is a high-performance suspension component designed specifically for the 2002-2003 Subaru Impreza WRX 4DR AWD (GDA). Engineered for rally and dirt trail racing, these coilovers feature a twin-tube design constructed from durable steel to withstand rough terrain. They offer adjustable compression and rebound damping forces, allowing for precise tuning to optimize handling and stability across various road surfaces. The ride height adjustment capability enables users to customize their vehicle’s stance for improved aerodynamics and clearance. The inclusion of a unique free piston system helps prevent aeration, maintaining consistent damping performance even under demanding conditions. These coilovers are built to enhance both performance and durability, making them suitable for serious off-road and rally applications.

Designed to fit 2002-2003 Subaru Impreza WRX models with the GDA chassis, these coilovers are a direct bolt-on upgrade for stock suspension components. They are ideal for rally, off-road, and track use, providing improved handling, stability, and ride quality. Installation involves replacing existing struts with these coilovers, offering a straightforward upgrade for enthusiasts seeking enhanced performance. The kit includes the coilover units and necessary mounting hardware, ensuring a complete setup. Suitable for both competitive racing and spirited driving, the Tein Type HG Coilovers deliver reliable, adjustable suspension performance tailored to demanding driving environments.

Overview

TEIN Type HG Coilovers for your 2002-2003 Subaru Impreza WRX 4DR AWD (GDA) s designed for rally and / or dirt trail racing. It meets the demands of any road surface with its individual compression / rebound damping force adjustment, and ride height adjustment. Utilizes a twin-tube design, and is constructed with steel for additional durability on rough courses. In order to prevent aeration that can diminish performance, a unique free piston was adapted in the construction of the HG. Developed from TEIN's extensive experience gained in Rally competitions and support.

Standard Features

  • Steel Construction for added durability
  • Twin Tube internal construction
  • Ride Height adjustable via adjustable spring seats
  • 16 x 16 way adjustable dampers, compression and rebound separately adjustable
  • External reservoirs for additional oil capacity and increased stroke
  • 3 stage powder coat
  • Some applications utilize large diameter spring seats which allows both OEM and aftermarket springs to be used
  • 1-year Manufacturers Defect Warranty
  • Available for Overhaul

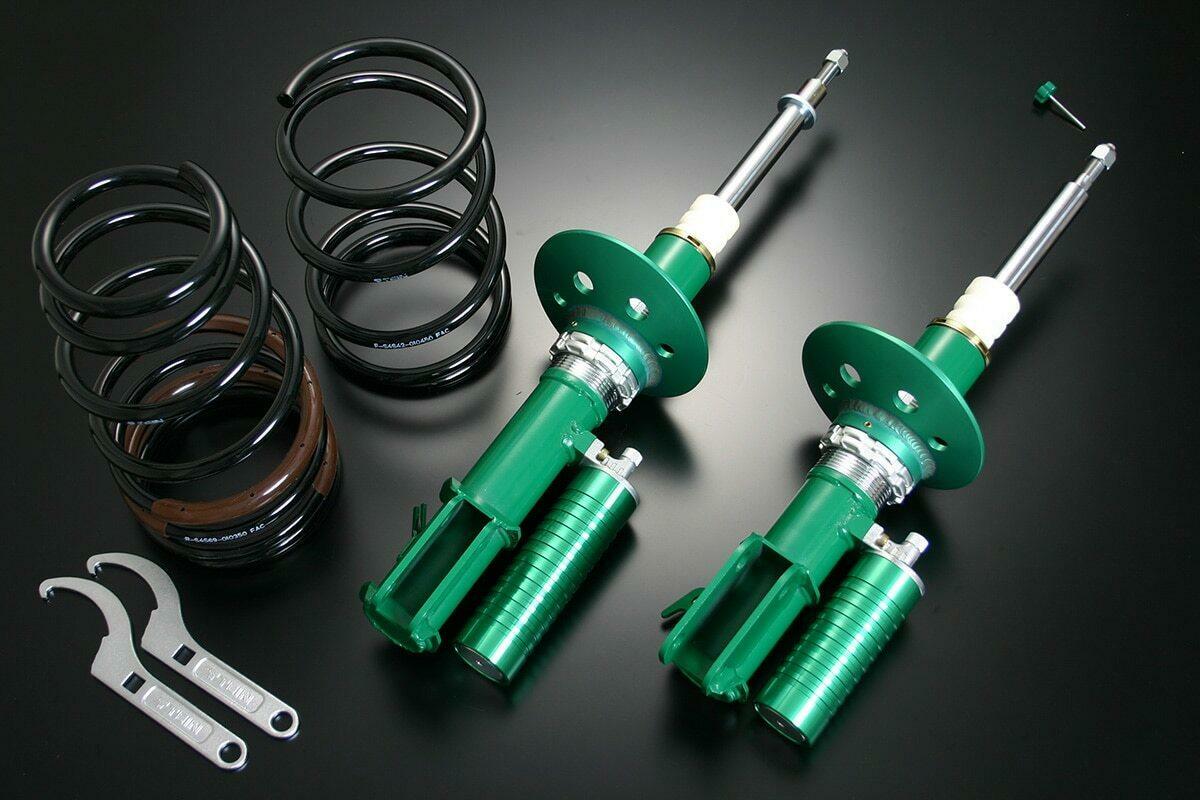

What's Included

  • Adjustable Shock Absorber x 4
  • Hook Spanner x 2
  • Main Spring x 4
  • Instruction manual
  • Upper Spring Seat Included in some applications
  • Lower Spring Seat x 4
  • Seat Lock x 4
  • Bump Rubber x 4
Specifications
Part Number DSS28-W1LS2
Part Name Type HG Coilovers
Vehicle 2002-2003 Subaru Impreza WRX 4DR AWD (GDA)
Chassis GDA
Engine 2000
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front No
Ride-Height Adjustable - Rear No
Upper Mounts - Front OEM
Upper Mounts - Rear OEM
Spring Rates - Front 4.5 Kg/mm (251.99 lbs/in)
Spring Rates - Rear 3.5 Kg/mm (195.99 lbs/in)
Ride Height Range - Front 1.1 to -0.1
Ride Height Range - Rear 0.1 to -0.6
EDFC Compatible No
Vehicle Fitment
  • 2002 Subaru Impreza WRX 4DR AWD (GDA)
  • 2003 Subaru Impreza WRX 4DR AWD (GDA)
