• TEIN Type HG Coilover Kit - 2003-2004 Subaru WRX STI AWD (GDB(C/D))
1 1

TEIN Type HG Coilover Kit - 2003-2004 Subaru WRX STI AWD (GDB(C/D))

TEIN Type HG Coilover Kit - 2003-2004 Subaru WRX STI AWD (GDB(C/D))

DSS28-W1LS2

Out of stock

$2,820.00 USD
$2,820.00 USD $2,820.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The TEIN Type HG Coilover Kit is a high-performance suspension component designed specifically for the 2003-2004 Subaru WRX STI AWD (GDB(C/D)). Engineered for rally and dirt trail racing, these coilovers feature a twin-tube design constructed from durable steel to withstand rough terrain. They offer adjustable compression and rebound damping forces, allowing precise tuning for various road conditions. The ride height adjustment capability enables users to optimize vehicle stance and handling, while the unique free piston design helps prevent aeration, maintaining consistent performance during demanding off-road use. These coilovers are built to deliver enhanced stability, improved traction, and superior durability in challenging environments.

Suitable for vehicles used in rally, off-road, or trail racing, these coilovers are intended for the 2003-2004 Subaru WRX STI AWD models with GDB chassis code. They are a direct bolt-on upgrade for stock suspension components, providing a significant performance boost for aggressive driving and racing applications. Installation involves replacing existing coilovers with these units, which include all necessary mounting hardware. Designed for enthusiasts seeking a rugged, adjustable suspension solution, the TEIN Type HG Coilover Kit ensures reliable performance on diverse terrains and demanding race conditions.

Overview

TEIN Type HG Coilovers for your 2003-2004 Subaru WRX STI AWD (GDB(C/D)) s designed for rally and / or dirt trail racing. It meets the demands of any road surface with its individual compression / rebound damping force adjustment, and ride height adjustment. Utilizes a twin-tube design, and is constructed with steel for additional durability on rough courses. In order to prevent aeration that can diminish performance, a unique free piston was adapted in the construction of the HG. Developed from TEIN's extensive experience gained in Rally competitions and support.

Standard Features

  • Steel Construction for added durability
  • Twin Tube internal construction
  • Ride Height adjustable via adjustable spring seats
  • 16 x 16 way adjustable dampers, compression and rebound separately adjustable
  • External reservoirs for additional oil capacity and increased stroke
  • 3 stage powder coat
  • Some applications utilize large diameter spring seats which allows both OEM and aftermarket springs to be used
  • 1-year Manufacturers Defect Warranty
  • Available for Overhaul

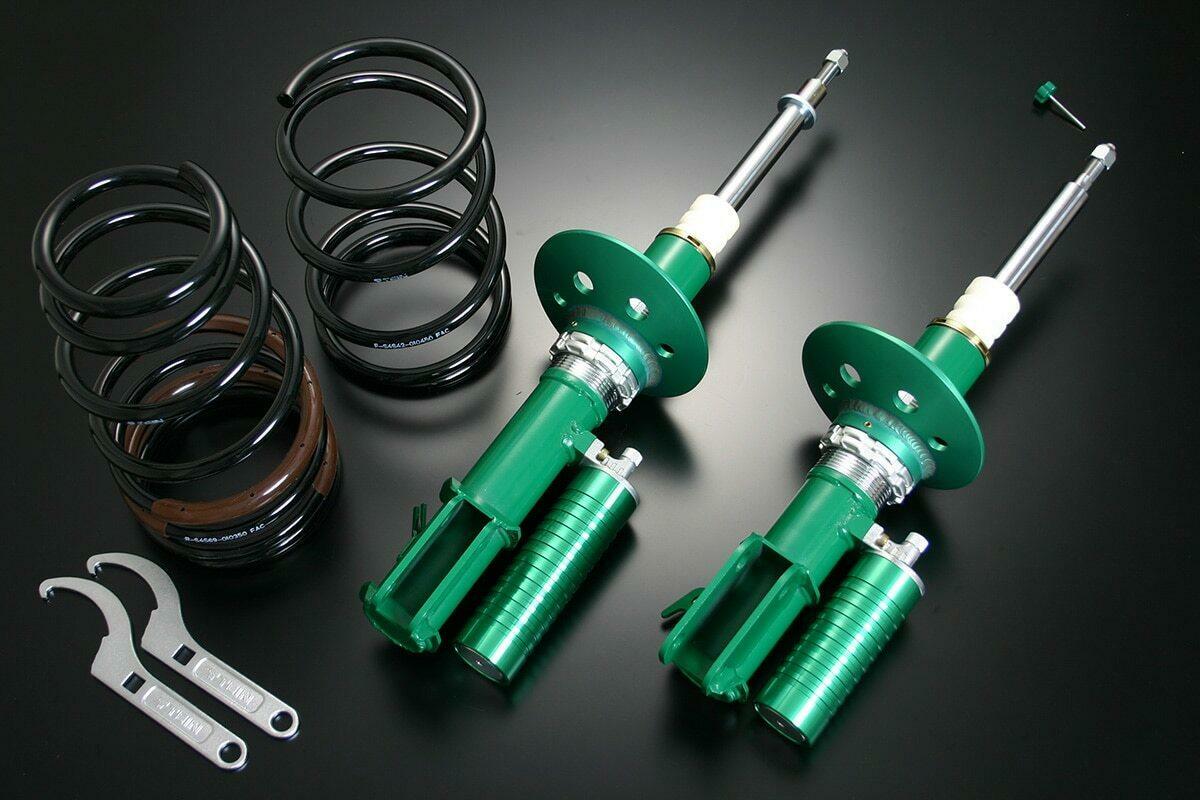

What's Included

  • Adjustable Shock Absorber x 4
  • Hook Spanner x 2
  • Main Spring x 4
  • Instruction manual
  • Upper Spring Seat Included in some applications
  • Lower Spring Seat x 4
  • Seat Lock x 4
  • Bump Rubber x 4
Specifications
Part Number DSS28-W1LS2
Part Name Type HG Coilovers
Vehicle 2003-2004 Subaru WRX STI AWD (GDB(C/D))
Chassis GDB(C/D)
Engine 2000
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front No
Ride-Height Adjustable - Rear No
Upper Mounts - Front OEM
Upper Mounts - Rear OEM
Spring Rates - Front 4.5 Kg/mm (251.99 lbs/in)
Spring Rates - Rear 3.5 Kg/mm (195.99 lbs/in)
Ride Height Range - Front Not Applicable
Ride Height Range - Rear Not Applicable
EDFC Compatible No
Notes Not compatible with RA model because springs are no longer available. Compatible with Spec C model only. Not compatible with Type E model (Jun 2004+ /Rim P.C.D.=114.3). To install onto Type C or D model (Nov 2002 - Jun 2004), OE RR upper mount for Type A or B model (Cct 2000 - Nov 2002) is required. FT/RR: Please use OE dust boots from non-inverted type GC8 or GDB model.
Vehicle Fitment
  • 2003 Subaru WRX STI AWD (GDB(C/D))
  • 2004 Subaru WRX STI AWD (GDB(C/D))
