TEIN Type HG Coilover Kit - 2004-2007 Subaru Impreza WRX 4DR AWD (GDA)

TEIN Type HG Coilover Kit - 2004-2007 Subaru Impreza WRX 4DR AWD (GDA)

DSS28-W1LS2

Out of stock

$2,820.00 USD
$2,820.00 USD $2,820.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

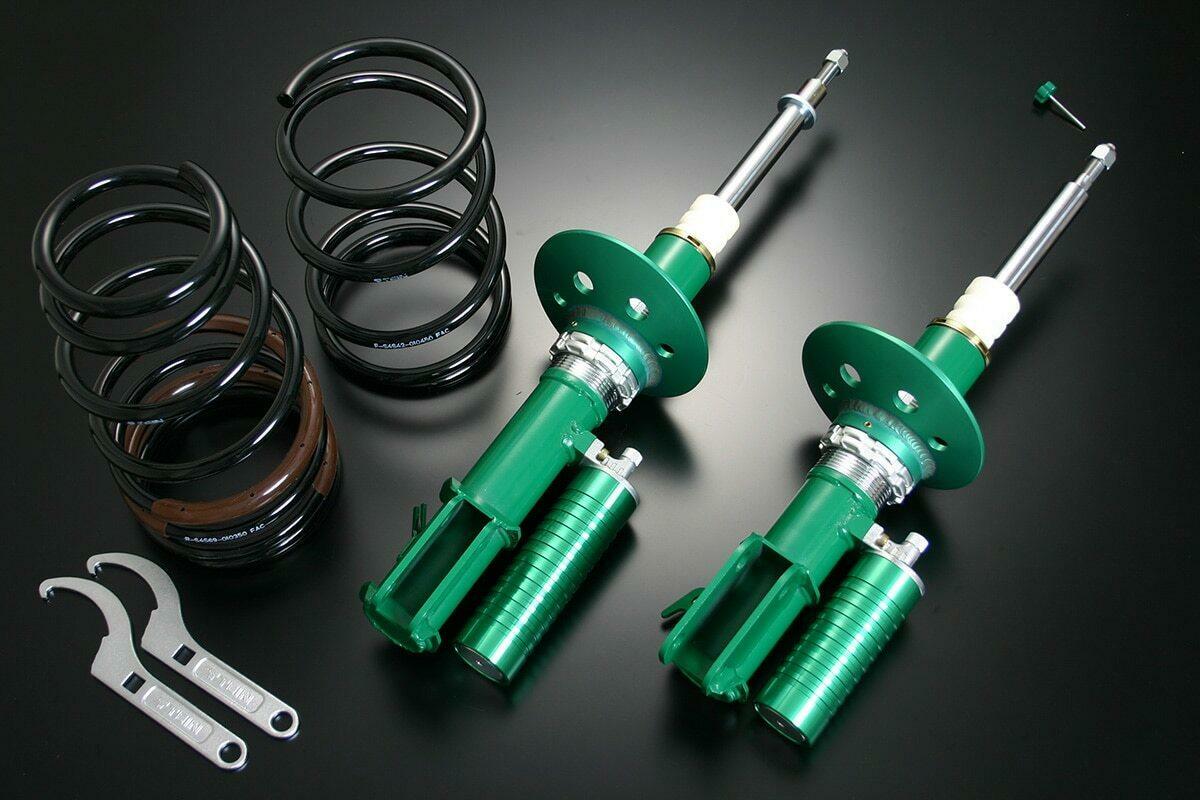

The Tein Type HG Coilover Kit is a high-performance suspension component designed for the 2004-2007 Subaru Impreza WRX 4-door AWD (GDA). Engineered for rally and dirt trail racing, these coilovers feature adjustable compression and rebound damping forces, allowing precise tuning for various road surfaces. The kit includes ride height adjustment to customize stance and handling. Constructed with a durable twin-tube steel design, the coilovers are built to withstand rough terrain and demanding conditions. A unique free piston system prevents aeration, maintaining consistent damping performance during intense driving. These coilovers deliver enhanced stability, improved handling, and superior durability, making them ideal for motorsport enthusiasts and off-road racers seeking reliable suspension upgrades.

Designed specifically for 2004-2007 Subaru Impreza WRX models with the GDA chassis, these coilovers are a direct bolt-on upgrade for stock suspension components. They are suitable for both rally and off-road applications, providing adjustable ride height and damping to optimize performance on challenging terrains. Installation involves replacing existing struts with these coilovers, offering a straightforward upgrade for enthusiasts looking to improve handling and ground clearance. The kit includes all necessary components for installation, ensuring a secure fit and reliable operation. Perfect for track days, rally events, or off-road adventures, these coilovers enhance vehicle control and durability in demanding environments.

Overview

TEIN Type HG Coilovers for your 2004-2007 Subaru Impreza WRX 4DR AWD (GDA) s designed for rally and / or dirt trail racing. It meets the demands of any road surface with its individual compression / rebound damping force adjustment, and ride height adjustment. Utilizes a twin-tube design, and is constructed with steel for additional durability on rough courses. In order to prevent aeration that can diminish performance, a unique free piston was adapted in the construction of the HG. Developed from TEIN's extensive experience gained in Rally competitions and support.

Standard Features

  • Steel Construction for added durability
  • Twin Tube internal construction
  • Ride Height adjustable via adjustable spring seats
  • 16 x 16 way adjustable dampers, compression and rebound separately adjustable
  • External reservoirs for additional oil capacity and increased stroke
  • 3 stage powder coat
  • Some applications utilize large diameter spring seats which allows both OEM and aftermarket springs to be used
  • 1-year Manufacturers Defect Warranty
  • Available for Overhaul

What's Included

  • Adjustable Shock Absorber x 4
  • Hook Spanner x 2
  • Main Spring x 4
  • Instruction manual
  • Upper Spring Seat Included in some applications
  • Lower Spring Seat x 4
  • Seat Lock x 4
  • Bump Rubber x 4
Specifications
Part Number DSS28-W1LS2
Part Name Type HG Coilovers
Vehicle 2004-2007 Subaru Impreza WRX 4DR AWD (GDA)
Chassis GDA
Engine 2000/2500
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front No
Ride-Height Adjustable - Rear No
Upper Mounts - Front OEM
Upper Mounts - Rear OEM
Spring Rates - Front 4.5 Kg/mm (251.99 lbs/in)
Spring Rates - Rear 3.5 Kg/mm (195.99 lbs/in)
Ride Height Range - Front 0.4 to -0.9
Ride Height Range - Rear -0.2 to -1.0
EDFC Compatible No
Vehicle Fitment
  • 2004 Subaru Impreza WRX 4DR AWD (GDA)
  • 2005 Subaru Impreza WRX 4DR AWD (GDA)
  • 2006 Subaru Impreza WRX 4DR AWD (GDA)
  • 2007 Subaru Impreza WRX 4DR AWD (GDA)
