The Tein Type HG Coilover Kit is a high-performance suspension component designed specifically for the 2004-2007 Subaru Impreza WRX 5-door AWD (GGE). Engineered for rally and dirt trail racing, these coilovers feature adjustable compression and rebound damping forces, allowing for precise tuning to suit various road surfaces. The twin-tube design, constructed from durable steel, ensures enhanced strength and longevity in demanding off-road conditions. A unique free piston system is incorporated to prevent aeration, maintaining consistent damping performance even on rough terrain. These coilovers provide a combination of ride height adjustment and damping control, making them ideal for rally, off-road, and performance driving applications.

Designed to fit 2004-2007 Subaru Impreza WRX 5-door AWD models with the GGE chassis code, these coilovers serve as a direct upgrade for improved handling and stability. They are suitable for use in rally, dirt trail racing, or aggressive street driving, offering enhanced control and durability. Installation is straightforward as they are bolt-on replacements for factory suspension components. The kit includes coilover units with adjustable ride height and damping settings, enabling drivers to customize their suspension setup for various driving conditions. These coilovers are perfect for enthusiasts seeking a robust, adjustable suspension solution for off-road and performance use.

Overview

TEIN Type HG Coilovers for your 2004-2007 Subaru Impreza WRX 5DR AWD (GGE) s designed for rally and / or dirt trail racing. It meets the demands of any road surface with its individual compression / rebound damping force adjustment, and ride height adjustment. Utilizes a twin-tube design, and is constructed with steel for additional durability on rough courses. In order to prevent aeration that can diminish performance, a unique free piston was adapted in the construction of the HG. Developed from TEIN's extensive experience gained in Rally competitions and support.

Standard Features

  • Steel Construction for added durability
  • Twin Tube internal construction
  • Ride Height adjustable via adjustable spring seats
  • 16 x 16 way adjustable dampers, compression and rebound separately adjustable
  • External reservoirs for additional oil capacity and increased stroke
  • 3 stage powder coat
  • Some applications utilize large diameter spring seats which allows both OEM and aftermarket springs to be used
  • 1-year Manufacturers Defect Warranty
  • Available for Overhaul

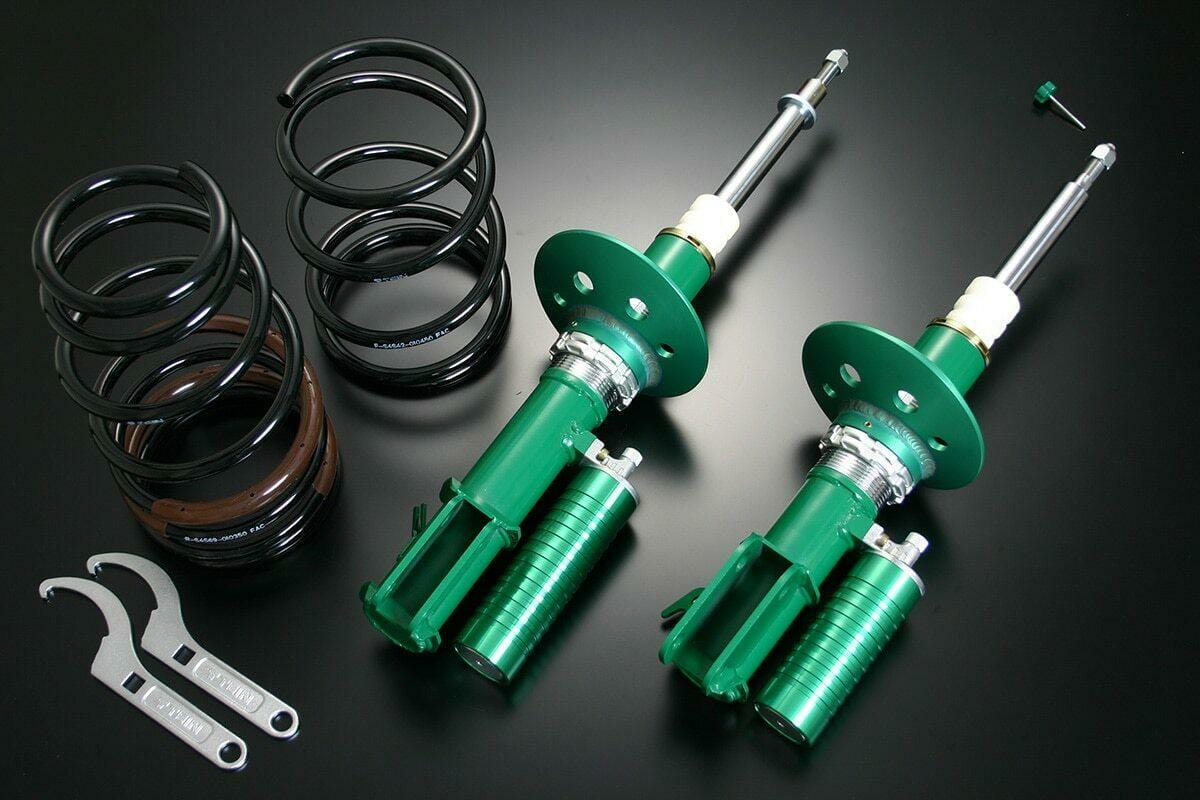

What's Included

  • Adjustable Shock Absorber x 4
  • Hook Spanner x 2
  • Main Spring x 4
  • Instruction manual
  • Upper Spring Seat Included in some applications
  • Lower Spring Seat x 4
  • Seat Lock x 4
  • Bump Rubber x 4
Specifications
Part Number DSS28-W1LS2
Part Name Type HG Coilovers
Vehicle 2004-2007 Subaru Impreza WRX 5DR AWD (GGE)
Chassis GGE
Engine 2000/2500
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front No
Ride-Height Adjustable - Rear No
Upper Mounts - Front OEM
Upper Mounts - Rear OEM
Spring Rates - Front 4.5 Kg/mm (251.99 lbs/in)
Spring Rates - Rear 3.5 Kg/mm (195.99 lbs/in)
Ride Height Range - Front 0.9 to -0.3
Ride Height Range - Rear -0.1 to -0.8
EDFC Compatible No
Vehicle Fitment
  • 2004 Subaru Impreza WRX 5DR AWD (GGE)
  • 2005 Subaru Impreza WRX 5DR AWD (GGE)
  • 2006 Subaru Impreza WRX 5DR AWD (GGE)
  • 2007 Subaru Impreza WRX 5DR AWD (GGE)
