TEIN Type HG Coilover Kit - 2004 Subaru WRX STI (RIM P.C.D.=100) AWD (GDF)

TEIN Type HG Coilover Kit - 2004 Subaru WRX STI (RIM P.C.D.=100) AWD (GDF)

DSS28-W1LS2

Out of stock

$2,820.00 USD
$2,820.00 USD $2,820.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The TEIN Type HG Coilover Kit for the 2004 Subaru WRX STI (RIM P.C.D.=100) AWD is a high-performance suspension upgrade designed for rally and dirt trail racing. Featuring a twin-tube construction with steel components, these coilovers provide enhanced durability for rough terrain. The kit offers individual compression and rebound damping force adjustment, allowing precise tuning to match various road surfaces. Ride height adjustment further enables customization for optimal handling and stance. The incorporation of a unique free piston design helps prevent aeration, ensuring consistent performance under demanding conditions. Built to withstand harsh environments, these coilovers deliver improved stability, control, and responsiveness for competitive and off-road driving.

Designed specifically for 2004 Subaru WRX STI models with RIM P.C.D. of 100mm, these coilovers are suitable for vehicles used in rally, off-road, or trail racing. They serve as a direct replacement for stock suspension components, providing a significant upgrade in handling and ride quality. Installation involves replacing existing struts with these coilovers, which are engineered to meet the rigorous demands of racing and off-road use. The kit includes the coilover units and necessary mounting hardware. Ideal for enthusiasts seeking performance-oriented suspension modifications, these coilovers enhance vehicle capability on challenging terrains while maintaining street drivability when properly tuned.

Overview

TEIN Type HG Coilovers for your 2004 Subaru WRX STI (RIM P.C.D.=100) AWD (GDF) s designed for rally and / or dirt trail racing. It meets the demands of any road surface with its individual compression / rebound damping force adjustment, and ride height adjustment. Utilizes a twin-tube design, and is constructed with steel for additional durability on rough courses. In order to prevent aeration that can diminish performance, a unique free piston was adapted in the construction of the HG. Developed from TEIN's extensive experience gained in Rally competitions and support.

Standard Features

  • Steel Construction for added durability
  • Twin Tube internal construction
  • Ride Height adjustable via adjustable spring seats
  • 16 x 16 way adjustable dampers, compression and rebound separately adjustable
  • External reservoirs for additional oil capacity and increased stroke
  • 3 stage powder coat
  • Some applications utilize large diameter spring seats which allows both OEM and aftermarket springs to be used
  • 1-year Manufacturers Defect Warranty
  • Available for Overhaul

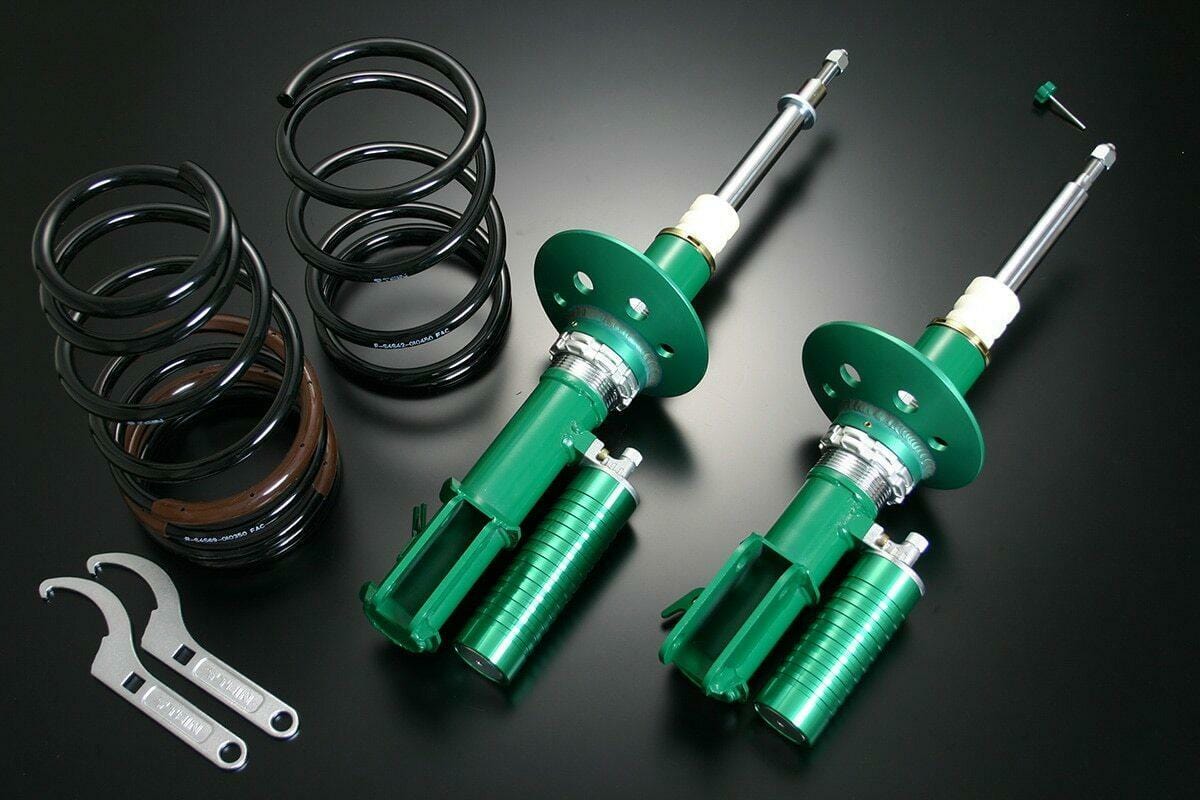

What's Included

  • Adjustable Shock Absorber x 4
  • Hook Spanner x 2
  • Main Spring x 4
  • Instruction manual
  • Upper Spring Seat Included in some applications
  • Lower Spring Seat x 4
  • Seat Lock x 4
  • Bump Rubber x 4
Specifications
Part Number DSS28-W1LS2
Part Name Type HG Coilovers
Vehicle 2004 Subaru WRX STI (RIM P.C.D.=100) AWD (GDF)
Chassis GDF
Engine 2500
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front No
Ride-Height Adjustable - Rear No
Upper Mounts - Front OEM
Upper Mounts - Rear OEM
Spring Rates - Front 4.5 Kg/mm (251.99 lbs/in)
Spring Rates - Rear 3.5 Kg/mm (195.99 lbs/in)
Ride Height Range - Front 0.9 to -0.2
Ride Height Range - Rear 0.6 to -0.2
EDFC Compatible No
Vehicle Fitment
  • 2004 Subaru WRX STI (RIM P.C.D.=100) AWD (GDF)
