• TEIN Type HG Coilover Kit - 2005 Subaru WRX STI AWD (GDF (D))
1 1

TEIN Type HG Coilover Kit - 2005 Subaru WRX STI AWD (GDF (D))

TEIN Type HG Coilover Kit - 2005 Subaru WRX STI AWD (GDF (D))

DSS68-W1LS2

Out of stock

$2,770.00 USD
$2,770.00 USD $2,770.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The TEIN Type HG Coilover Kit is a high-performance suspension component designed specifically for the 2005 Subaru WRX STI AWD (GDF D). Engineered for rally and dirt trail racing, these coilovers feature adjustable compression and rebound damping forces, allowing for precise tuning to match various road surfaces. The twin-tube design, constructed from durable steel, ensures robustness and longevity in demanding off-road conditions. A unique free piston system is incorporated to prevent aeration, maintaining consistent damping performance even on rough terrain. These coilovers are built to enhance handling, stability, and ride quality during intense rally or trail driving, making them an ideal upgrade for competitive or adventurous drivers seeking reliable performance.

Designed for 2005 Subaru WRX STI AWD models, these coilovers are a direct replacement for the factory suspension, offering adjustable ride height and damping settings for customized performance. They are suitable for off-road, rally, and trail applications where durability and precise handling are critical. Installation involves bolt-on mounting, compatible with the stock chassis and suspension points. The kit includes the coilover units necessary for a complete upgrade, providing improved ground clearance and suspension response. These coilovers are perfect for enthusiasts looking to optimize their vehicle's off-road capabilities while maintaining street driving comfort.

Overview

TEIN Type HG Coilovers for your 2005 Subaru WRX STI AWD (GDF (D)) s designed for rally and / or dirt trail racing. It meets the demands of any road surface with its individual compression / rebound damping force adjustment, and ride height adjustment. Utilizes a twin-tube design, and is constructed with steel for additional durability on rough courses. In order to prevent aeration that can diminish performance, a unique free piston was adapted in the construction of the HG. Developed from TEIN's extensive experience gained in Rally competitions and support.

Standard Features

  • Steel Construction for added durability
  • Twin Tube internal construction
  • Ride Height adjustable via adjustable spring seats
  • 16 x 16 way adjustable dampers, compression and rebound separately adjustable
  • External reservoirs for additional oil capacity and increased stroke
  • 3 stage powder coat
  • Some applications utilize large diameter spring seats which allows both OEM and aftermarket springs to be used
  • 1-year Manufacturers Defect Warranty
  • Available for Overhaul

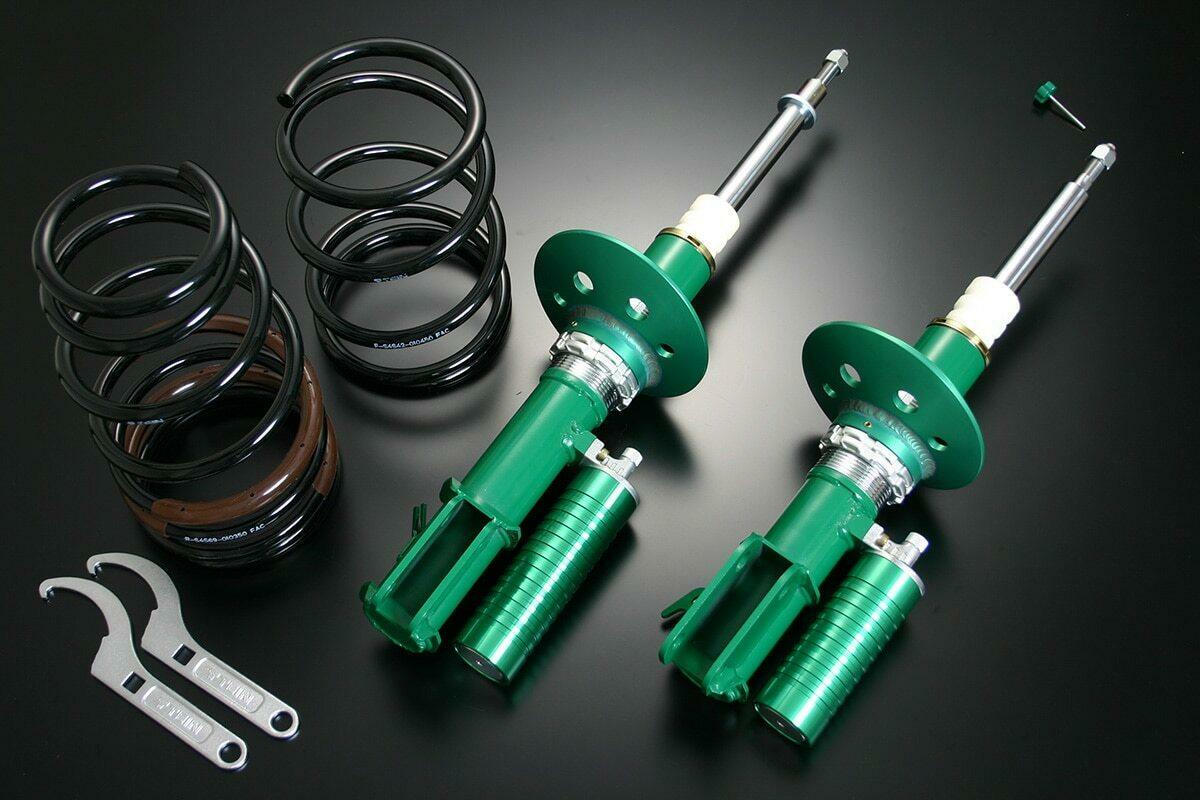

What's Included

  • Adjustable Shock Absorber x 4
  • Hook Spanner x 2
  • Main Spring x 4
  • Instruction manual
  • Upper Spring Seat Included in some applications
  • Lower Spring Seat x 4
  • Seat Lock x 4
  • Bump Rubber x 4
Specifications
Part Number DSS68-W1LS2
Part Name Type HG Coilovers
Vehicle 2005 Subaru WRX STI AWD (GDF (D))
Chassis GDF (D)
Engine 2500
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front No
Ride-Height Adjustable - Rear No
Upper Mounts - Front OEM
Upper Mounts - Rear OEM
Spring Rates - Front 4.5 Kg/mm (251.99 lbs/in)
Spring Rates - Rear 3.5 Kg/mm (195.99 lbs/in)
Ride Height Range - Front 1.0 to -0.2
Ride Height Range - Rear 0.9 to -0.1
EDFC Compatible No
Vehicle Fitment
  • 2005 Subaru WRX STI AWD (GDF (D))
