TEIN Type HG Coilover Kit - 2006-2007 Subaru WRX STI AWD (GDF (E))

TEIN Type HG Coilover Kit - 2006-2007 Subaru WRX STI AWD (GDF (E))

DSS68-W1LS2

Out of stock

$2,770.00 USD
$2,770.00 USD $2,770.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Tein Type HG Coilover Kit is a high-performance suspension upgrade designed specifically for the 2006-2007 Subaru WRX STI AWD (GDF (E)). Engineered for rally and dirt trail racing, these coilovers feature adjustable compression and rebound damping forces, allowing for precise tuning to match various road surfaces and driving conditions. The twin-tube design, constructed from durable steel, ensures robustness and longevity in demanding off-road environments. A unique free piston system is incorporated to prevent aeration, maintaining consistent damping performance even during intense rally stages. These coilovers deliver improved handling, stability, and ride quality, making them ideal for competitive racing or serious off-road enthusiasts seeking reliable suspension performance.

Designed to fit 2006-2007 Subaru WRX STI AWD models, these coilovers are a direct replacement for stock suspension components. They are suitable for rally, dirt trail, and off-road applications where adjustable ride height and damping are critical. Installation involves bolt-on replacement of existing struts, providing a straightforward upgrade for enthusiasts looking to enhance vehicle capability. The kit includes coilover units with adjustable features, enabling fine-tuning of ride height and damping forces to optimize performance. Compatible with models equipped with the GDF (E) chassis code, these coilovers are perfect for drivers seeking a durable, adjustable suspension solution for demanding terrain and racing conditions.

Overview

TEIN Type HG Coilovers for your 2006-2007 Subaru WRX STI AWD (GDF (E)) s designed for rally and / or dirt trail racing. It meets the demands of any road surface with its individual compression / rebound damping force adjustment, and ride height adjustment. Utilizes a twin-tube design, and is constructed with steel for additional durability on rough courses. In order to prevent aeration that can diminish performance, a unique free piston was adapted in the construction of the HG. Developed from TEIN's extensive experience gained in Rally competitions and support.

Standard Features

  • Steel Construction for added durability
  • Twin Tube internal construction
  • Ride Height adjustable via adjustable spring seats
  • 16 x 16 way adjustable dampers, compression and rebound separately adjustable
  • External reservoirs for additional oil capacity and increased stroke
  • 3 stage powder coat
  • Some applications utilize large diameter spring seats which allows both OEM and aftermarket springs to be used
  • 1-year Manufacturers Defect Warranty
  • Available for Overhaul

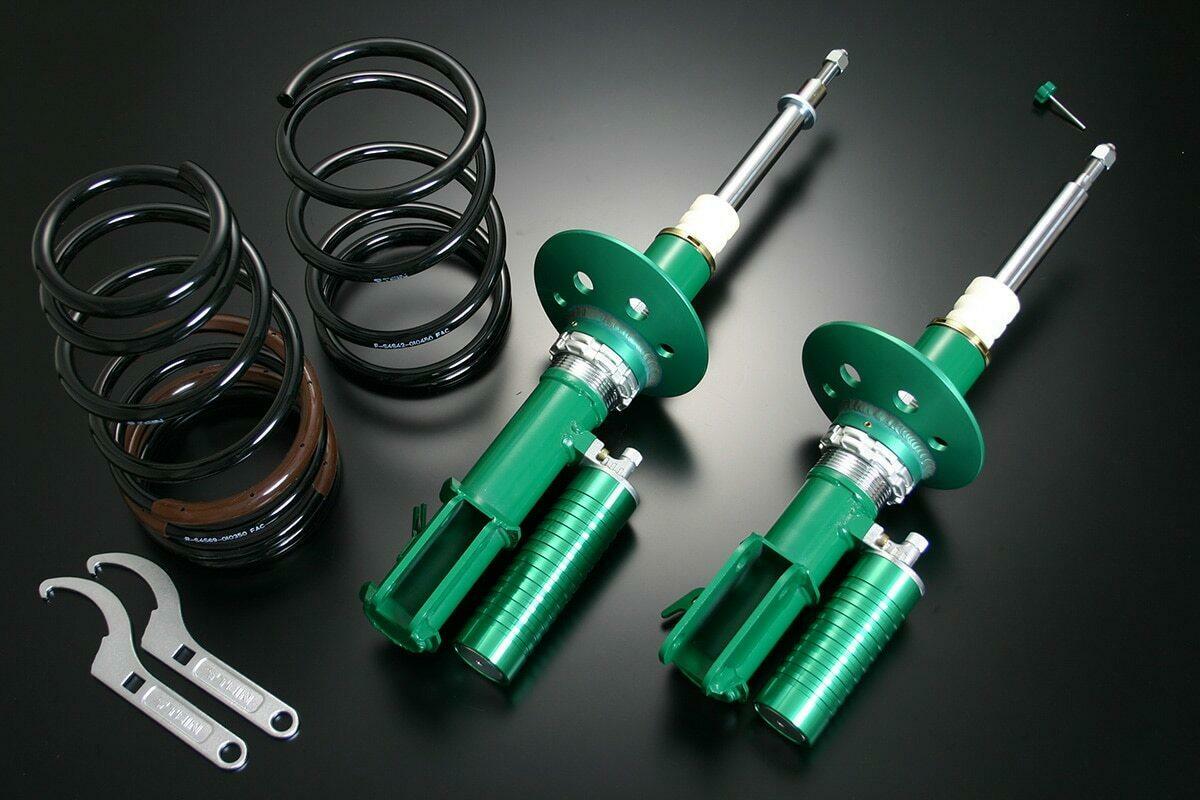

What's Included

  • Adjustable Shock Absorber x 4
  • Hook Spanner x 2
  • Main Spring x 4
  • Instruction manual
  • Upper Spring Seat Included in some applications
  • Lower Spring Seat x 4
  • Seat Lock x 4
  • Bump Rubber x 4
Specifications
Part Number DSS68-W1LS2
Part Name Type HG Coilovers
Vehicle 2006-2007 Subaru WRX STI AWD (GDF (E))
Chassis GDF (E)
Engine 2500
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front No
Ride-Height Adjustable - Rear No
Upper Mounts - Front OEM
Upper Mounts - Rear OEM
Spring Rates - Front 4.5 Kg/mm (251.99 lbs/in)
Spring Rates - Rear 3.5 Kg/mm (195.99 lbs/in)
Ride Height Range - Front 0.9 to -0.4
Ride Height Range - Rear 0.9 to -0.2
EDFC Compatible No
Vehicle Fitment
  • 2006 Subaru WRX STI AWD (GDF (E))
  • 2007 Subaru WRX STI AWD (GDF (E))
