TEIN Type HG Coilover Kit - 2008-2016 Mitsubishi Lancer Evolution Evo X AWD (CZ4A)

TEIN Type HG Coilover Kit - 2008-2016 Mitsubishi Lancer Evolution Evo X AWD (CZ4A)

DSE18-W1LS2

Out of stock

$2,580.00 USD
$2,580.00 USD $2,580.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Tein Type HG Coilover Kit is a high-performance suspension component designed for the 2008-2016 Mitsubishi Lancer Evolution Evo X AWD (CZ4A). Engineered for rally and dirt trail racing, these coilovers feature adjustable compression and rebound damping forces, allowing for precise tuning to suit various road surfaces. The twin-tube design, constructed from durable steel, ensures longevity and resilience in demanding off-road conditions. A unique free piston system is incorporated to prevent aeration, maintaining consistent damping performance even on rough terrain. These coilovers deliver enhanced handling, stability, and ride quality, making them ideal for competitive motorsport or serious off-road enthusiasts seeking reliable, adjustable suspension components.

Suitable for vehicles from 2008 to 2016 Mitsubishi Lancer Evolution Evo X AWD models, these coilovers are a direct upgrade for performance-oriented driving. They are designed for installation on models with the CZ4A chassis and are suitable for rally, dirt trail, or mixed-surface racing applications. The kit includes coilover units with adjustable ride height and damping settings, providing versatility for various track or off-road conditions. Installation is a bolt-on process, requiring no additional modifications. These coilovers are perfect for drivers seeking a durable, adjustable suspension solution that enhances handling and stability in challenging environments.

Overview

TEIN Type HG Coilovers for your 2008-2016 Mitsubishi Lancer Evolution Evo X AWD (CZ4A) s designed for rally and / or dirt trail racing. It meets the demands of any road surface with its individual compression / rebound damping force adjustment, and ride height adjustment. Utilizes a twin-tube design, and is constructed with steel for additional durability on rough courses. In order to prevent aeration that can diminish performance, a unique free piston was adapted in the construction of the HG. Developed from TEIN's extensive experience gained in Rally competitions and support.

Standard Features

  • Steel Construction for added durability
  • Twin Tube internal construction
  • Ride Height adjustable via adjustable spring seats
  • 16 x 16 way adjustable dampers, compression and rebound separately adjustable
  • External reservoirs for additional oil capacity and increased stroke
  • 3 stage powder coat
  • Some applications utilize large diameter spring seats which allows both OEM and aftermarket springs to be used
  • 1-year Manufacturers Defect Warranty
  • Available for Overhaul

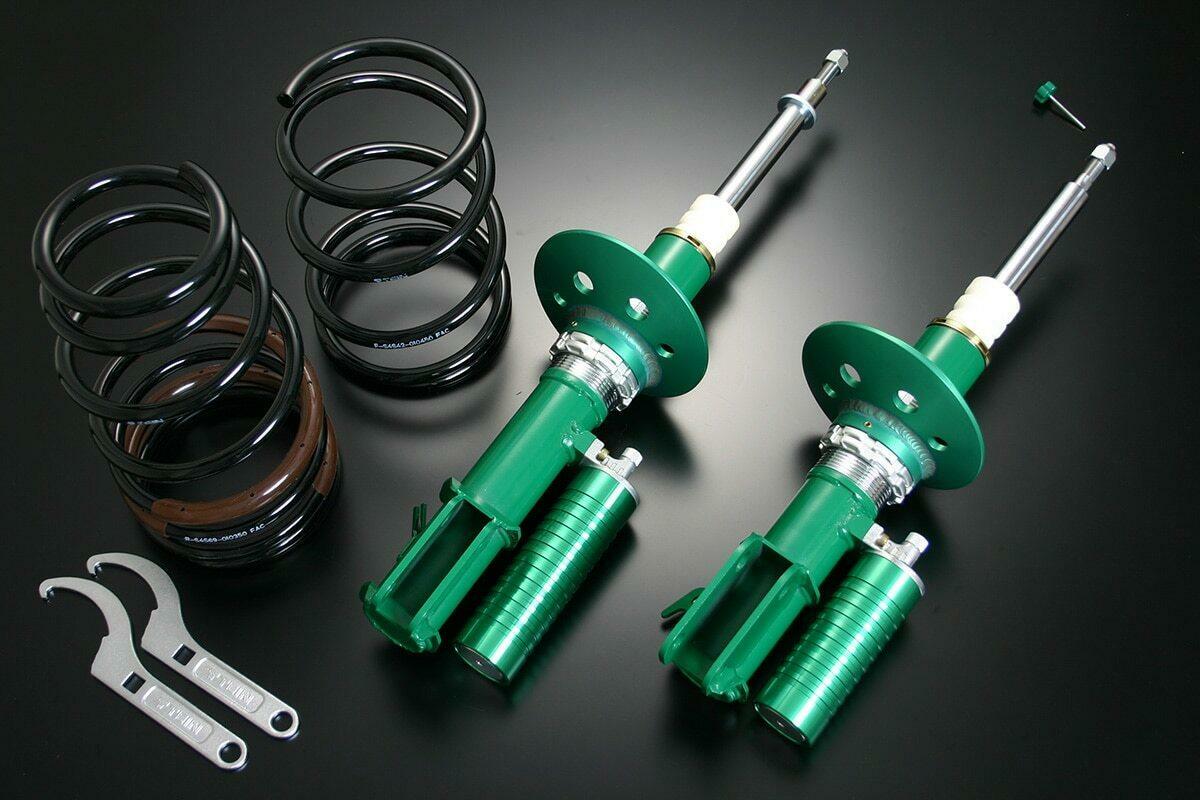

What's Included

  • Adjustable Shock Absorber x 4
  • Hook Spanner x 2
  • Main Spring x 4
  • Instruction manual
  • Upper Spring Seat Included in some applications
  • Lower Spring Seat x 4
  • Seat Lock x 4
  • Bump Rubber x 4
Specifications
Part Number DSE18-W1LS2
Part Name Type HG Coilovers
Vehicle 2008-2016 Mitsubishi Lancer Evolution Evo X AWD (CZ4A)
Chassis CZ4A
Engine 2000
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front No
Ride-Height Adjustable - Rear No
Upper Mounts - Front OEM
Upper Mounts - Rear OEM
Spring Rates - Front 4.1 Kg/mm (229.59 lbs/in)
Spring Rates - Rear 4.1 Kg/mm (229.59 lbs/in)
Ride Height Range - Front 0.4 to -1.4
Ride Height Range - Rear 0.2 to -1.5
EDFC Compatible No
Vehicle Fitment
  • 2008 Mitsubishi Lancer Evolution Evo X AWD (CZ4A)
  • 2009 Mitsubishi Lancer Evolution Evo X AWD (CZ4A)
  • 2010 Mitsubishi Lancer Evolution Evo X AWD (CZ4A)
  • 2011 Mitsubishi Lancer Evolution Evo X AWD (CZ4A)
  • 2012 Mitsubishi Lancer Evolution Evo X AWD (CZ4A)
  • 2013 Mitsubishi Lancer Evolution Evo X AWD (CZ4A)
  • 2014 Mitsubishi Lancer Evolution Evo X AWD (CZ4A)
  • 2015 Mitsubishi Lancer Evolution Evo X AWD (CZ4A)
  • 2016 Mitsubishi Lancer Evolution Evo X AWD (CZ4A)
