Torque Solution HD Oil Pan | Multiple Subaru Fitments (TS-SU-599-OP)

Multiple Subaru Fitments HD Oil Pan by Torque Solution

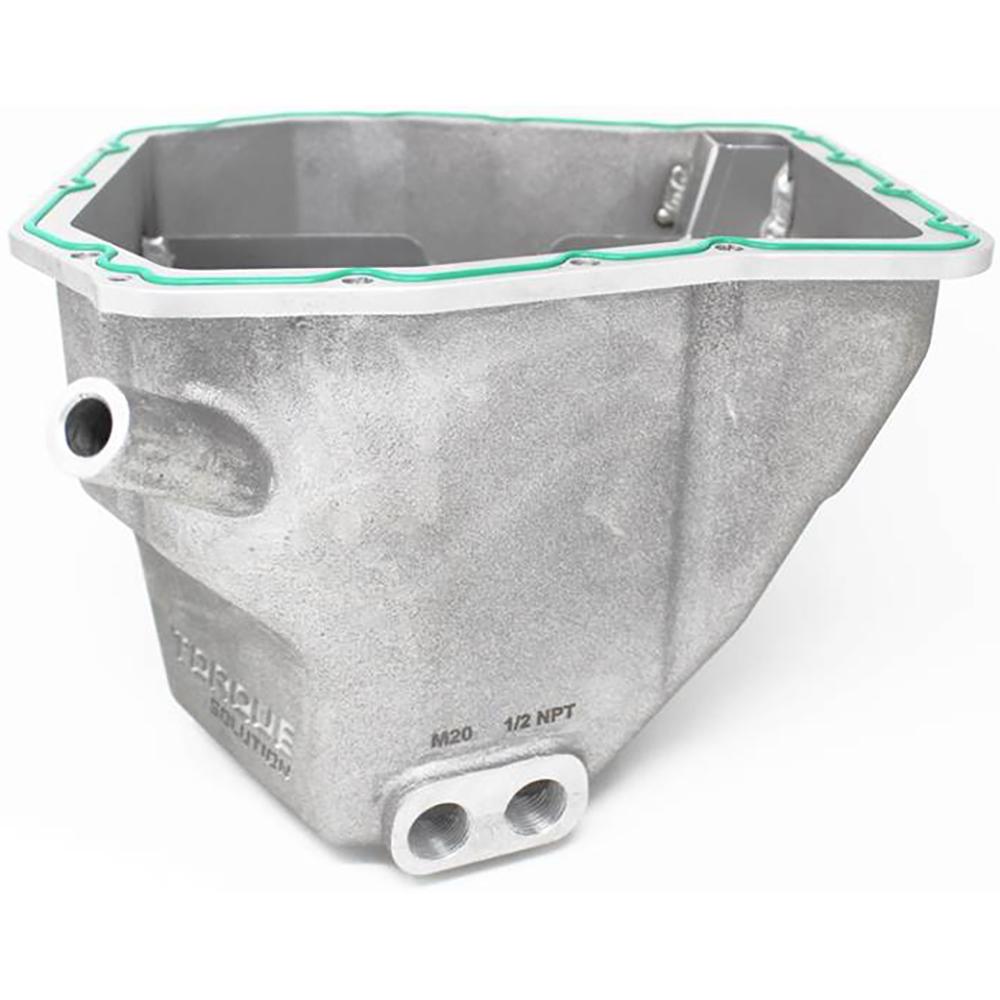

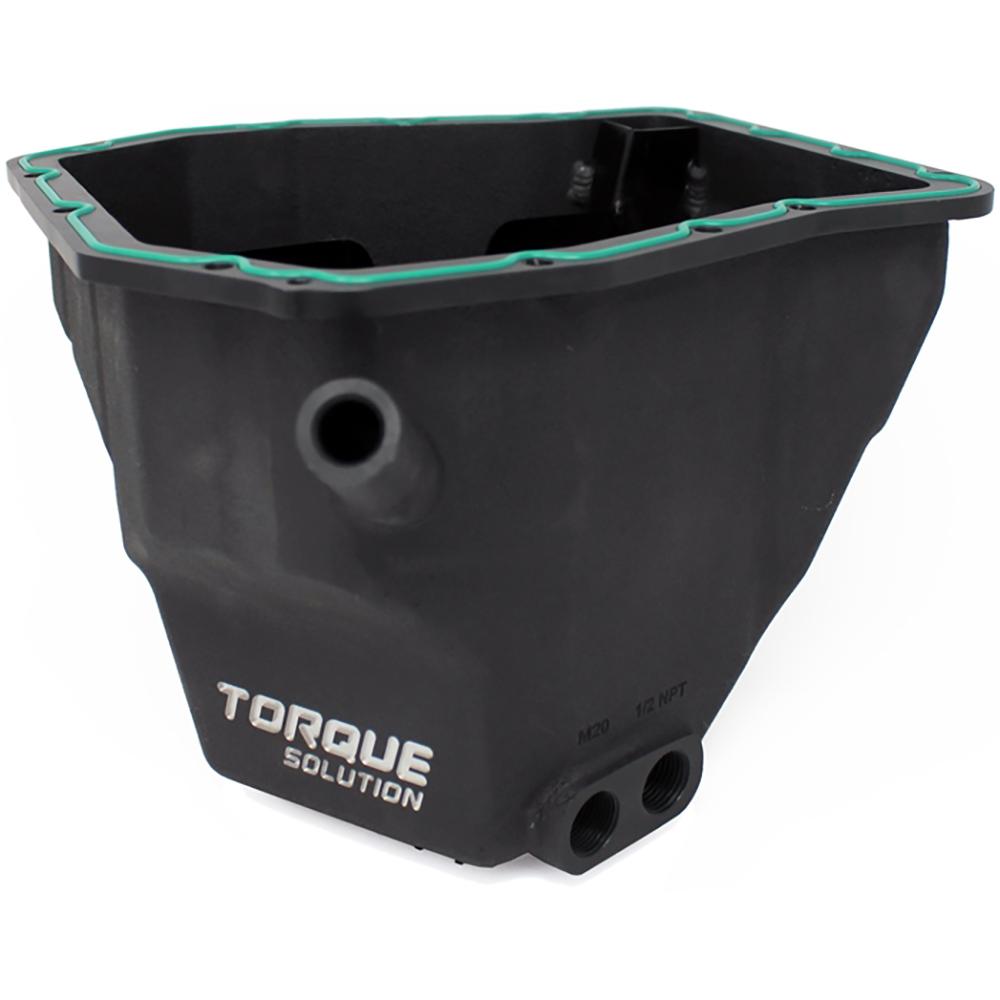

Torque Solution HD Oil Pan is the perfect solution to keep your EJ engine happy and lubricated. Our pan is molded from cast aluminum and then CNC'd to perfection. Featuring an FKM rubber o-ring gasket for a leak-proof seal and ease of installation or removal. No more scraping off gasket material!! We also incorporated cooling fins to the bottom of the pan, which are positioned to have airflow pass through them to aid in keeping oil temps down. We have also welded in internal baffles to prevent slosh and help keep the oil at the pickup where it is needed. All necessary installation hardware is included. No need to buy any extra parts to complete the install!!

Features

• CNC'd Cast Aluminum
• Black Anodized
• Seamless FKM Rubber O-Ring Gasket
• CNC'd Cooling Fins
• M20 and 1/2" NPT Ports
• Stainless Steel and Alloy Install Hardware

Benefits

• 6 Quart Oil Capacity (Over 30% Increase In Oil Capacity)
• Welded Internal Baffles

Please Note: Will not fit Moroso oil pick up. Tested to fit most headers but the Perrin header needs to be compressed down a little to clear for install.

Applications

• 1992-1996 Subaru WRX
• 2002-2014 Subaru WRX
• 1997-1998 Subaru WRX Wagon
• 1997-1998 Subaru WRX STI
• 2004-2021 Subaru WRX STI
• 2005-2012 Subaru Legacy GT
• 2005-2009 Subaru Outback XT
• 2005-2006 Saab 9-2X Aero
• 1999-2004 Subaru Forester
• 1999-2004 Subaru Legacy
• 2000-2004 Subaru Outback
• 2003-2005 Subaru Baja

What's In The Box?

• 1 - Cast Aluminum Oil Pan Black Anodized1 - Seamless FKM Rubber Oil Pan O-Ring Gasket2 - FKM Rubber Dipstick Tube O-Ring Gaskets1 - M20 OEM Subaru Drain Plug P/N: 32103AA0805 - M20 Copper Drain Plug Gaskets1 - 1/2" NPT Brass Plug w/ Teflon Tape1 - Billet Aluminum Oil Pick Up Suction Tube Spacer w/ FKM O-Ring Gasket2 - Billet Aluminum Oil Pick Up Pedestal Spacers14 - M6 x 18 Stainless Steel Socket Cap Bolts2 - M6 x 25 Flanged Alloy Socket Cap Bolts2 - M6 Split Lock Washer2 - M6 x 30 Grade 12.9 Zinc Coated Bolt

Warranty

• Torque Solution offers a limited lifetime warranty on this product.
