| Year | Make | Model |
|---|---|---|
| 1991 - 1996 | Chevrolet | Caprice |
| 1994 - 1996 | Chevrolet | Impala |
1
/
of
6
UMI Performance 91-96 Impala SS Adjustable Extended Length Lower Control Arms
UMI Performance 91-96 Impala SS Adjustable Extended Length Lower Control Arms
SKU:3612-R
Out of stock
Regular price
$349.99 USD
Regular price
$349.99 USD
Sale price
$349.99 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments

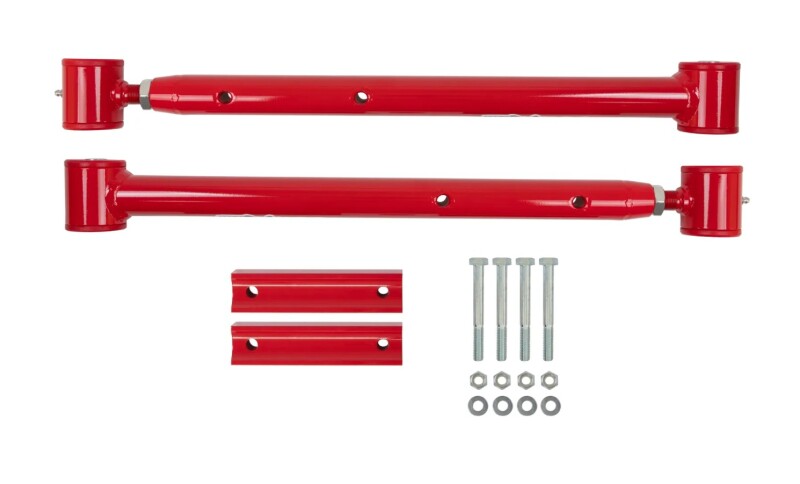

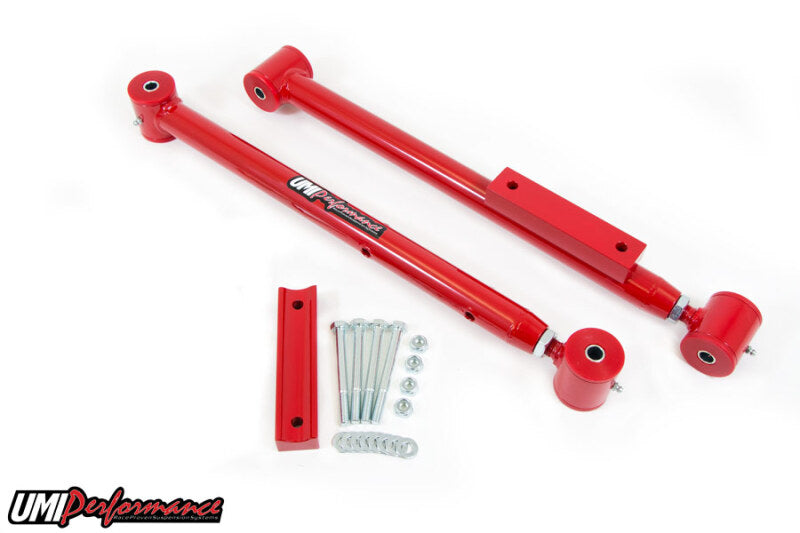

The UMI Performance 91-96 Impala SS Adjustable Extended Length Lower Control Arms are high-quality suspension components designed to improve rear wheel alignment and handling. Constructed from 1.500-inch DOM tubing and fully TIG welded, these control arms offer maximum strength and durability. They feature a 5/8-inch extension with additional adjustment capabilities for precise rear end centering, allowing users to further fine-tune the length by an extra ¼ inch. Reinforced sway bar provisions with steel sleeves and a billet aluminum spacer enable compatibility with stock or aftermarket sway bars. Fully assembled with greaseable bushings and finished with a glossy powder coat, these control arms are built for long-lasting performance and precise tolerances, with threaded tube adapters made from 4140 Chrome moly.
Designed for 1991–1996 Impala SS models, these control arms are compatible with factory or aftermarket sway bars and are intended for performance upgrades on street or track applications. They can be used with UMI Performance weld-in relocation brackets (part #3610) and require a longer driveshaft depending on ride height adjustments. Installation typically takes 1-2 hours using OEM hardware, and the kit includes installation instructions and new 10.9 grade sway bar hardware. These control arms serve as a robust upgrade for rear suspension alignment, offering improved handling, stability, and customization for the Impala SS chassis.
Share
Overview
Overview

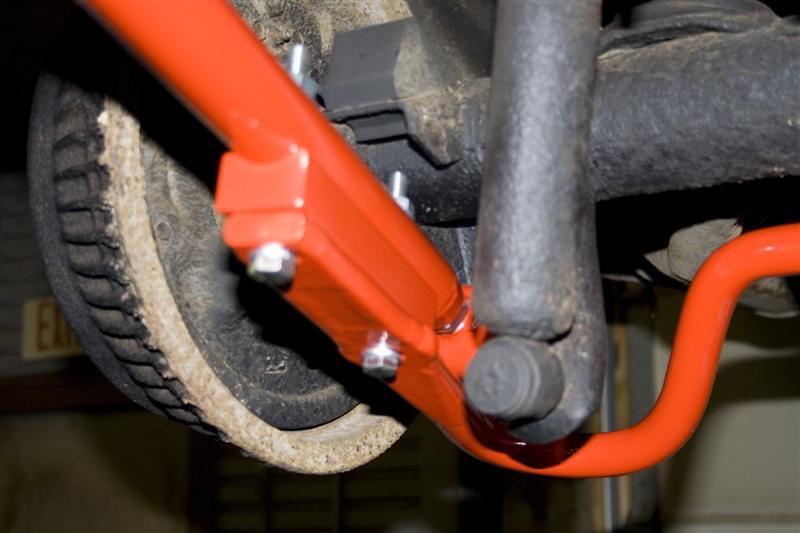

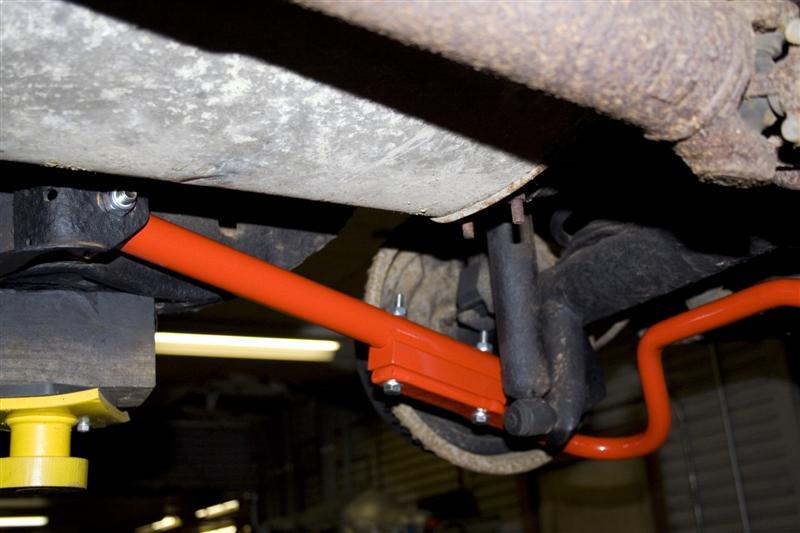

UMI Performance extended length control arms are designed to center the rear wheels of the Impala SS correctly within the wheel well. These control arms feature a 5/8” extension with added adjustment capabilities for precise centering of the rear end. Users can further adjust the length of the control arms by an additional ¼” beyond the initial extension. Made from 1.500” DOM tubing and fully TIG welded for maximum strength, these control arms also provide provisions for attaching a stock or aftermarket sway bar. The sway bar holes are reinforced with a 0.120” steel sleeve that is TIG welded and sanded in place. A billet aluminum spacer is used to attach the sway bar to the control arms in the factory location. Please note that depending on ride height variations, a longer driveshaft may be necessary when using these extended length control arms. This control arm setup is compatible with UMI Performance weld-in relocation brackets, part #3610. Rotating the sway bar spacer block on top of the control arms allows the relocation brackets to be used while reinstalling the sway bar. Installation typically takes 1-2 hours using OEM hardware. Installation instructions and new 10.9 grade sway bar hardware are included, with additional mounting hardware available for purchase if needed. These control arms are constructed from 0.120 wall thickness DOM steel tubing, CNC machined for precise tolerances, and come fully assembled with greaseable bushings. They feature 4140 Chrome moly threaded tube adapters and bushing threads, as well as a durable glossy powder coat finish for long-lasting durability.
