| Year | Make | Model |
|---|---|---|
| 2024 - 2026 | Toyota | Tacoma |
1
/
of
4
Untitled Product
Untitled Product
SKU:K53293T
In stock
Regular price
$3,129.75 USD
Regular price
$3,129.75 USD
Sale price
$3,129.75 USD
Unit price
/
per
Couldn't load pickup availability
â–¶ Vehicle Fitments

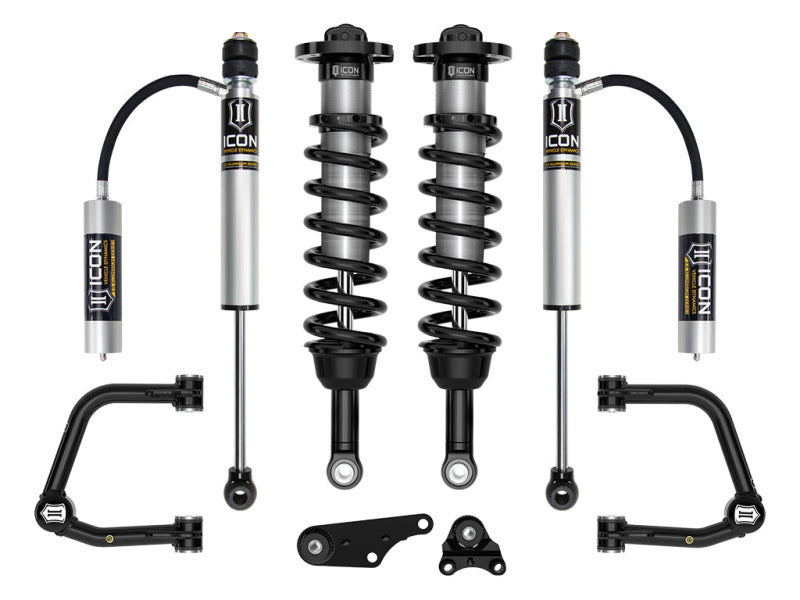

The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension system is a comprehensive Stage 3 upgrade designed for maximum performance and off-road capability. It features vehicle-specific tuned 2.5 Series coilover shocks with internal reservoirs for superior cooling and damping, along with ICON-engineered coil springs that enhance vehicle feel throughout the suspension travel. The system allows height adjustments from 1.25 to 3 inches of front lift, enabling larger wheel and tire setups. Additional components include front differential drop brackets, coilover length optimization to prevent CV bind, polyurethane differential bushings to reduce differential movement under load, and a tubular upper control arm kit that improves front-end geometry, caster, and clearance. The inclusion of serviceable ICON Delta Joint PRO ball joints ensures full bump and droop travel while eliminating bind, and ICON 2.0 Aluminum Series remote reservoir rear shocks provide balanced performance and improved cooling for the rear suspension.
This suspension system is designed specifically for 2024-2025 Toyota Tacoma models, offering a direct bolt-on upgrade for trucks with a focus on enhanced on- and off-road handling. It fits Tacoma pickups with the appropriate chassis and drivetrain configurations, serving as a performance upgrade for drivers seeking improved wheel travel, ride quality, and vehicle control. The kit includes coilover shocks, control arms, differential bushings, and rear shocks, making it suitable for off-road enthusiasts, daily drivers, and those looking to increase their Tacoma’s capabilities. Installation involves replacing stock components with these performance parts to maximize suspension travel, stability, and overall vehicle performance.
Share
Overview
Overview
ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 3 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. The included ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024-2025 Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. ICON 2.0 Aluminum Series remote reservoir rear shocks provide improved cooling ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
