• Wagner Tuning Competition Intercooler Kit | 2008+ Fiat 500 Abarth Manual European Model (200001109.S)
1 1

Wagner Tuning Comp Intercooler Kit | Fiat 500 Abarth (08+) (200001109.S)

Wagner Tuning Comp Intercooler Kit | Fiat 500 Abarth (08+) (200001109.S)

200001109.S

Out of stock

$859.44 USD
$910.00 USD $859.44 USD
vADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Wagner Tuning Comp Intercooler Kit for the Fiat 500 Abarth is a high-performance upgrade designed to enhance charge cooling efficiency. Featuring a custom-developed tube fin core measuring 600 mm x 204.6 mm x 80 mm with a capacity of 9.8 liters, this intercooler significantly improves thermal management. Its larger frontal surface area, 85% greater than stock, combined with 131% increased core volume, ensures better heat dissipation and reduced intake temperatures. Constructed with precision-machined aluminum cast endtanks, optimized through CAD design and CFD simulations, the kit offers durability and optimized airflow for improved engine performance and reliability under demanding conditions.

This intercooler kit is specifically engineered for the Fiat 500 Abarth models from 2008 onward, providing a direct bolt-on upgrade that enhances overall turbocharged system efficiency. It is ideal for street and track use, offering increased charge density and reduced heat soak during high-performance driving. The kit includes all necessary mounting components for straightforward installation, ensuring compatibility with the factory setup. Designed to maximize cooling capacity, this intercooler is suitable for enthusiasts seeking to improve power output and engine responsiveness in their Fiat 500 Abarth.

Overview

Fiat 500 Abarth Competition Intercooler Kit by Wagner Tuning

The WAGNERTUNING high-performance intercooler has a new competition core (Tube Fin) with the dimensions 600 mm x 204.6 mm x 80 mm (9.8 liters), which was developed especially for the requirements of the Fiat 500 Abarth. This high-performance core offers an 85% larger frontal surface and 131% more core volume compared to the stock intercooler. The aluminum cast endtanks were designed in CAD and optimized by using CFD simulations (for an ideal internal airflow).

For the best possible heat exchange, the WAGNERTUNING high-performance intercooler is installed in the front of the car, replacing the two original side intercooler. The newly developed elliptical hose connection at the outlet of this intercooler and the WAGNERTUNING silicone hoses enables a maximum possible reduction of the charge air distance. As a result of the generally lower back pressure of the complete intercooler system (see diagram) and the short charge air distance the overall response could be significantly improved.

An anti-corrosion coating with heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, as a result of which a lasting and optimal cooling effect can be guaranteed. Installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.

Features

  • Latest tube fin technology intercooler cores
  • 131% more core volume compared to the stock intercooler
  • CAD optimized Aluminum End tank design
  • Anti-corrosion coating with heat-conducting properties
  • Lasting and optimal cooling effect
  • Stealth Flat Black finish

Benefits

  • Designed to reduce fuel consumption while increasing the engine power and efficiency

Please Note: doesn´t fit plug and play for US-models

Applications

  • 2008+ Fiat 500 Abarth

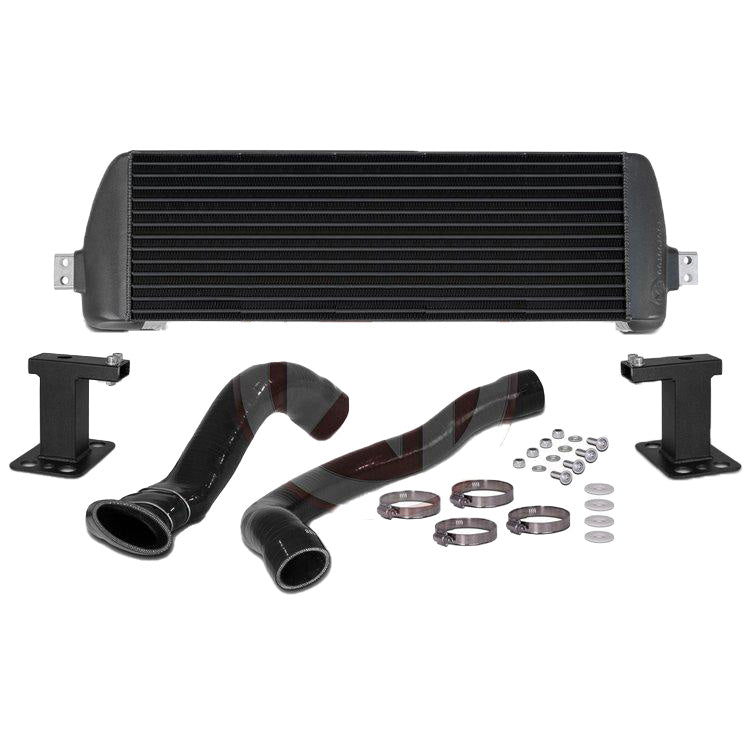

What's In The Box?

  • 1 - Intercooler
  • 1 - Cross member
  • 2 - Silicon Hose
  • 1 - Mounting Material
  • 1 - Installation Instruction

References

Warranty

  • Manufacturers Standard Warranty
