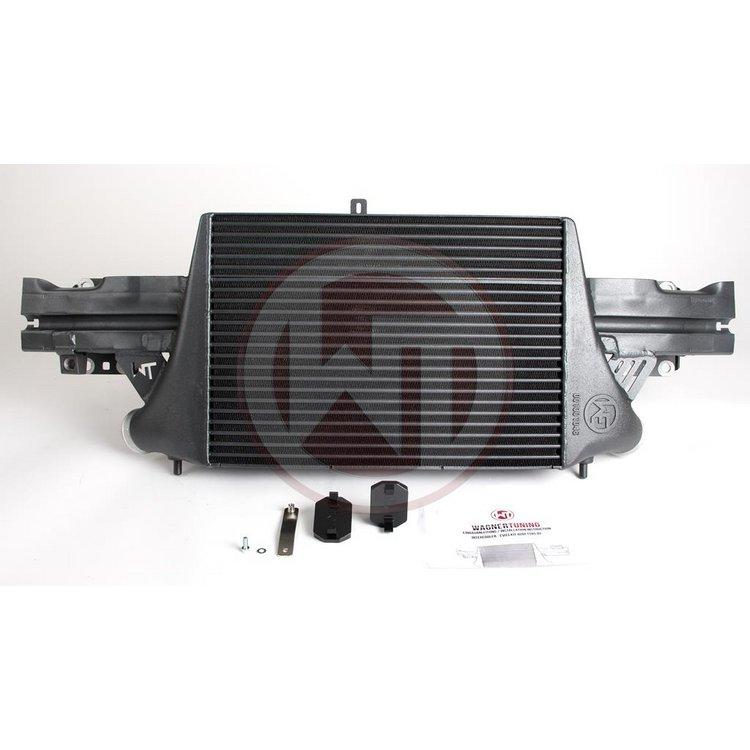

Wagner Tuning EVO 3.X Competition Intercooler | 2009+ Audi TTRS 8J Over 600hp (200001056.X)

Wagner Tuning EVO 3.X Competition Intercooler | 2009+ Audi TTRS 8J Over 600hp (200001056.X)

200001056.X

Out of stock

$1,945.56 USD
$2,060.00 USD $1,945.56 USD
xADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Wagner Tuning EVO 3.X Competition Intercooler for the 2009+ Audi TTRS 8J is a high-performance upgrade designed to significantly improve charge air cooling efficiency. Featuring a core measuring 515mm x 367mm (274mm thick) x 95mm, this intercooler provides a 120% larger cooling surface and 142% more charge air volume compared to the stock unit. Constructed with a newly developed competition core, it ensures optimal airflow to adjacent components such as the water cooler, enhancing overall cooling performance. The end tanks are made of cast aluminum, optimized for strength and weight reduction, contributing to improved thermal management and durability under demanding conditions.

This intercooler kit is specifically designed for 2009 and newer Audi TTRS 8J models, offering a direct bolt-on upgrade for enhanced performance. Its larger core and efficient airflow design make it ideal for high-horsepower applications, including track and aggressive street use. The lightweight construction and optimized end tanks facilitate straightforward installation without modifications. The kit includes the intercooler core and cast aluminum end tanks, providing a comprehensive upgrade for enthusiasts seeking increased charge cooling capacity and improved engine reliability during high-performance driving.

Overview

EVO3 Audi TTRS 8J Competition Intercooler Kit by Wagner Tuning

The high performance intercooler has the following core dimension (515mm x 367 [274] mm x 95mm) and thus offers a 120% larger cooling surface and 142% more charge air volume compared to the original intercooler. The newly developed competition core granted the adjacent components, for example watercooler, sufficient airflow and is also very light. The endtanks of the intercooler are made of cast aluminum and have been optimized under flow analyzes in the CAD system. With the help of additional air baffles, inside inlet, providing for a uniform filling of the intercooler. The result is excellent cooling properties with minimum back pressure. So this kit is just the right thing for racing. The intercooler and the original crossmember form a stable unit and weighs only 11.2 kg. It is mounted to the original mounting points and is easy to perform (1:1 exchange). Optimum cooling of the charged air with a clear increase in performance! On both sides the connection diameter is 68mm.

Features

  • 120% larger cooling surface and 142% more charge air volume compared to the original intercooler
  • Additional air baffles, inside inlet, providing for a uniform filling of the intercooler
  • Cast aluminum endtanks

Benefits

  • Designed to reduce fuel consumption while increasing the engine power and efficiency

Please Note: We recommend to use the standard version for power applications up to 600HP and the X-version for power application above 600HP.

Applications

  • 2009+ Audi TT RS 8J

What's In The Box?

  • 1 - Intercooler including crossmember
  • 1 - Mounting material
  • 1 - Set license plate holder
  • 1 - Installation instruction

References

Warranty

  • Manufacturers Standard Warranty
