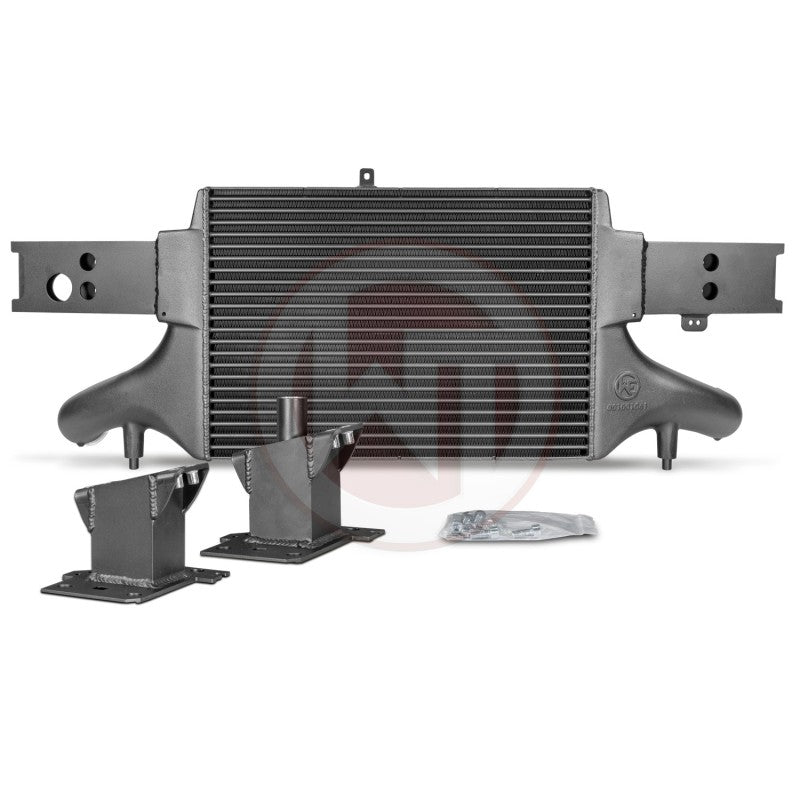

Wagner Tuning EVO 3.X Competition Intercooler | Audi RS3 8V Over 600hp (200001081.NOACC.X)

Wagner Tuning EVO 3.X Competition Intercooler | Audi RS3 8V Over 600hp (200001081.NOACC.X)

200001081.NOACC.X

Out of stock

$1,945.56 USD
$2,060.00 USD $1,945.56 USD
xADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Wagner Tuning EVO 3.X Competition Intercooler for the Audi RS3 8V is a high-performance cooling component designed to significantly improve charge air cooling efficiency. Featuring a core dimension of 515mm x 367mm x 95mm, this intercooler offers a total volume of 16.5 liters and a cooling surface area that is 84% larger than the stock unit. The design incorporates an optimized end tank structure to eliminate OEM bottlenecks, resulting in increased airflow and enhanced heat dissipation. Built with high-quality materials and engineered for maximum thermal performance, this intercooler delivers superior charge cooling capabilities, supporting increased horsepower and improved engine responsiveness in demanding conditions.

This intercooler is specifically engineered for the Audi RS3 8V models, suitable for vehicles with power outputs over 600 horsepower. It is a direct bolt-on upgrade that replaces the factory intercooler, providing a substantial upgrade in cooling capacity for street, track, or high-performance applications. The kit includes all necessary mounting components and is designed for easy installation without modifications. Ideal for tuning enthusiasts seeking to maximize engine performance, this intercooler ensures optimal charge temperatures and consistent power delivery during aggressive driving or racing scenarios.

Overview

EVO3 Audi RS3 8V Competition Intercooler by Wagner Tuning

The high performance intercooler has the following core dimension (515mm x 367mm x 95mm = 16,5L/14,45Inch x 3,74Inch = 1006,9Inch³) and this offers a 84% larger cooling surface and 101% more charge air volume compared to the original intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. This Audi RS3 intercooler uses our award winning WAGNERTUNING Competition Intercooler Core, which is made specifically for this application.

Constructed of the highest quality TUBE and FIN intercooler cores with inside turbulators combined with cast aluminum endtanks optimized by CFD for best possible internal airflow. With the help of additional air guides, inside inlet, a uniform filling of the intercooler is provided. The result is excellent cooling properties with minimum pressure drop. So this kit is just the right thing for racing. The intercooler and the crossmember form a stable unit and weighs only 14,3 kg. It is mounted to the original mounting points and is easy to perform (1:1 exchange). Optimum cooling of the charged air with a clear increase in performance! 68mm (2,67Inch) in- and outlets.

Features

  • 84% larger cooling surface and 101% more charge air volume compared to the original intercooler
  • Constructed of the highest quality Tube and Fin intercooler cores with inside turbulators
  • Additional air guides, inside inlet, an uniform filling of the intercooler is provided
  • Cast aluminum endtanks

Benefits

  • Designed to reduce fuel consumption while increasing the engine power and efficiency
  • Excellent cooling properties with minimum pressure drop

Please Note: We recommend to use the standard version for power applications up to 600HP and the X-version for power application above 600HP. Recalibration of the ACC maybe necessary

Applications

  • Audi RS3 8V (Over 600hp)

What's In The Box?

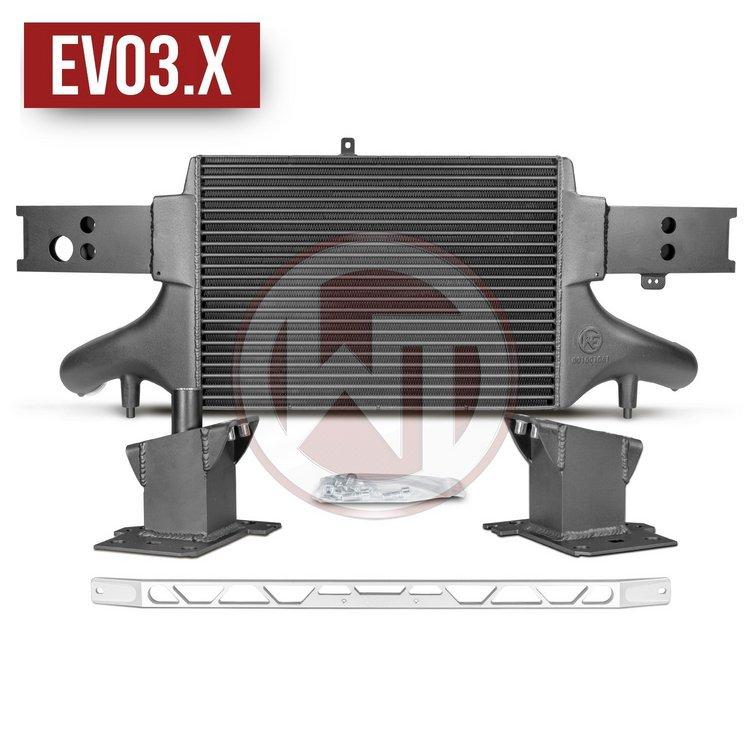

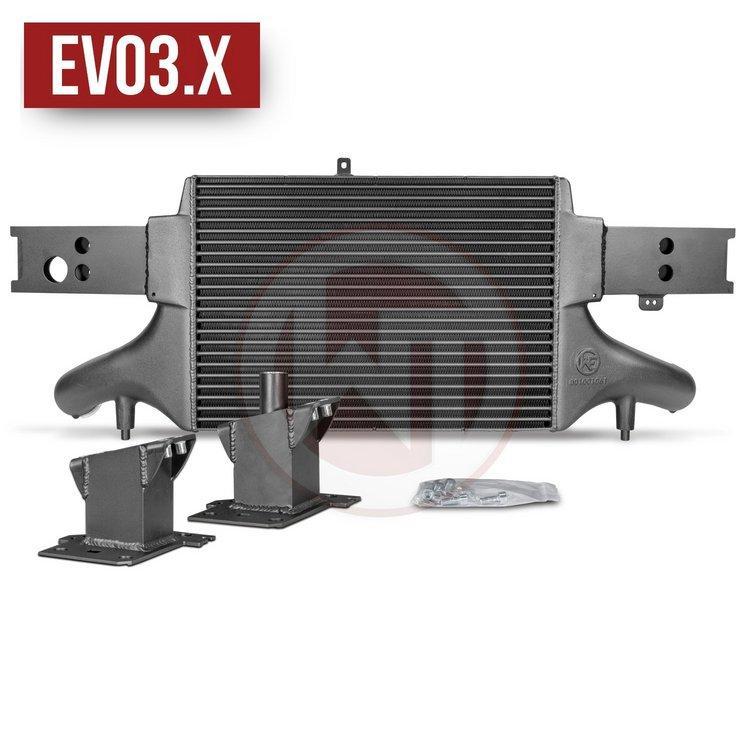

  • 1 - Intercooler including crossmember
  • 1 - TÃœV Certification
  • 1 - Mounting Material
  • 1 - Installation instruction

References

Warranty

  • Manufacturers Standard Warranty
