• Wagner Tuning EVO3 Competition Intercooler | Audi TTRS 8S Under 600hp (200001136.S)
1 1

Wagner Tuning EVO3 Competition Intercooler | Audi TTRS 8S Under 600hp (200001136.S)

Wagner Tuning EVO3 Competition Intercooler | Audi TTRS 8S Under 600hp (200001136.S)

200001136.S

Out of stock

$1,728.33 USD
$1,830.00 USD $1,728.33 USD
xADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

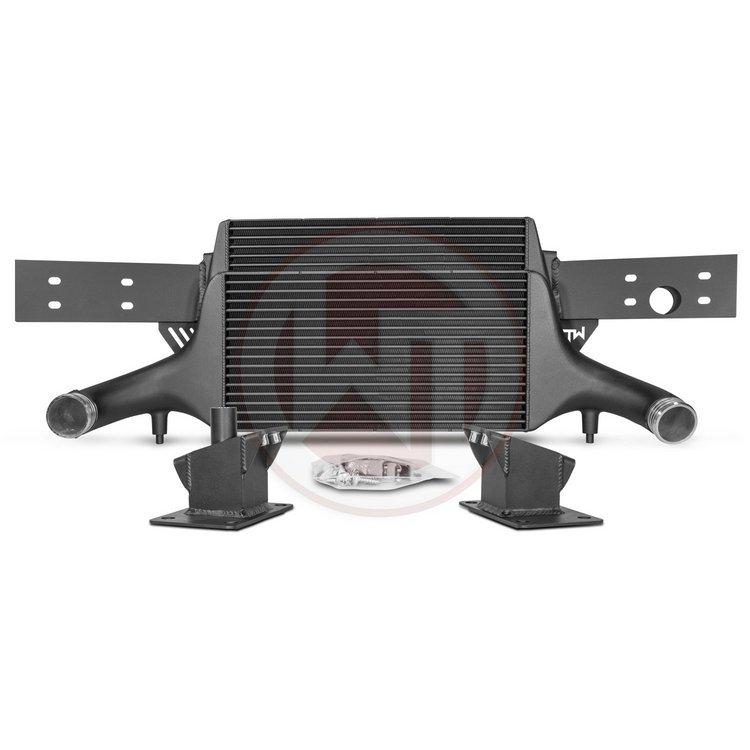

The Wagner Tuning EVO3 Competition Intercooler for the Audi TTRS 8S is a high-performance cooling component designed to enhance charge air cooling efficiency. Featuring a core measuring 515mm by 367mm by 95mm, it provides an 84% increase in cooling surface area and more than double the charge air volume compared to the stock intercooler. Engineered with larger core dimensions and optimized end tank design, this intercooler reduces OEM bottlenecks, resulting in improved airflow and superior heat dissipation. Its construction emphasizes durability and high thermal conductivity, ensuring consistent performance under demanding conditions. The EVO3 Competition intercooler is ideal for enthusiasts seeking increased power output and reliability in high-performance applications.

This intercooler is compatible with 2014-2021 Audi TTRS 8S models, suitable for vehicles with up to 600 horsepower. It is a direct bolt-on upgrade that replaces the OEM unit, offering enhanced cooling capacity for street, track, or high-performance driving. The design ensures optimal fitment without modifications, and the kit includes all necessary mounting hardware. This intercooler is particularly beneficial for tuned engines or those operating under elevated boost pressures, providing improved charge temperature control and overall engine efficiency. It is an ideal upgrade for those aiming to maximize performance and reliability in their Audi TTRS 8S.

Overview

2014-2021 Audi TTRS 8S Intercooler by Wagner Tuning

The high performance intercooler has the following core dimension (515mm x 367mm x 95mm = 16.500cm³) and thus offers a 84% larger cooling surface and 101% more charge air volume compared to the original intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties.

This Audi RS3 intercooler uses our award winning WAGNERTUNING Competition Intercooler Core, which is made specifically for this application. Constructed of the highest quality Tube and Fin intercooler cores with inside turbulators combined with cast aluminium endtanks optimised by CFD for best possible internal airflow. With the help of additional air guides, inside inlet, a uniform filling of the intercooler is provided.

The result is excellent cooling properties with minimum pressure drop. So this kit is just the right thing for racing. The intercooler and the original crossmember form a stable unit and weighs only 11.7 kg. It is mounted to the original mounting points and is easy to perform (simple adjustments necessasy - check installation instruction). Optimum cooling of the charged air with a clear increase in performance! 68mm In and Outlets.

Features

  • Expertly crafted from superior materials
  • Provide superior durability
  • Durable Design and long lasting performance

Applications

  • 2014-2021 Audi TTRS

What's In The Box?

  • 1 Intercooler including crossmember
  • 1 Mounting material

Warranty

  • Manufacturer Standard Warranty.
