The Whiteline Front Control Arm for the 2008-2020 Lexus LX570 and Toyota Land Cruiser (KTA246) is an upgraded upper control arm designed to address alignment and suspension issues common in lifted vehicles. Constructed from durable materials, this offset UCA provides an all-in-one solution to improve camber and caster adjustments, especially when lifting the vehicle by more than one inch. It also enhances ball joint articulation and clearance around coilover struts at various ride heights, ensuring consistent handling and ride quality. This control arm is engineered to optimize suspension geometry, reduce wear, and support better wheel alignment for off-road and on-road performance.

Overview

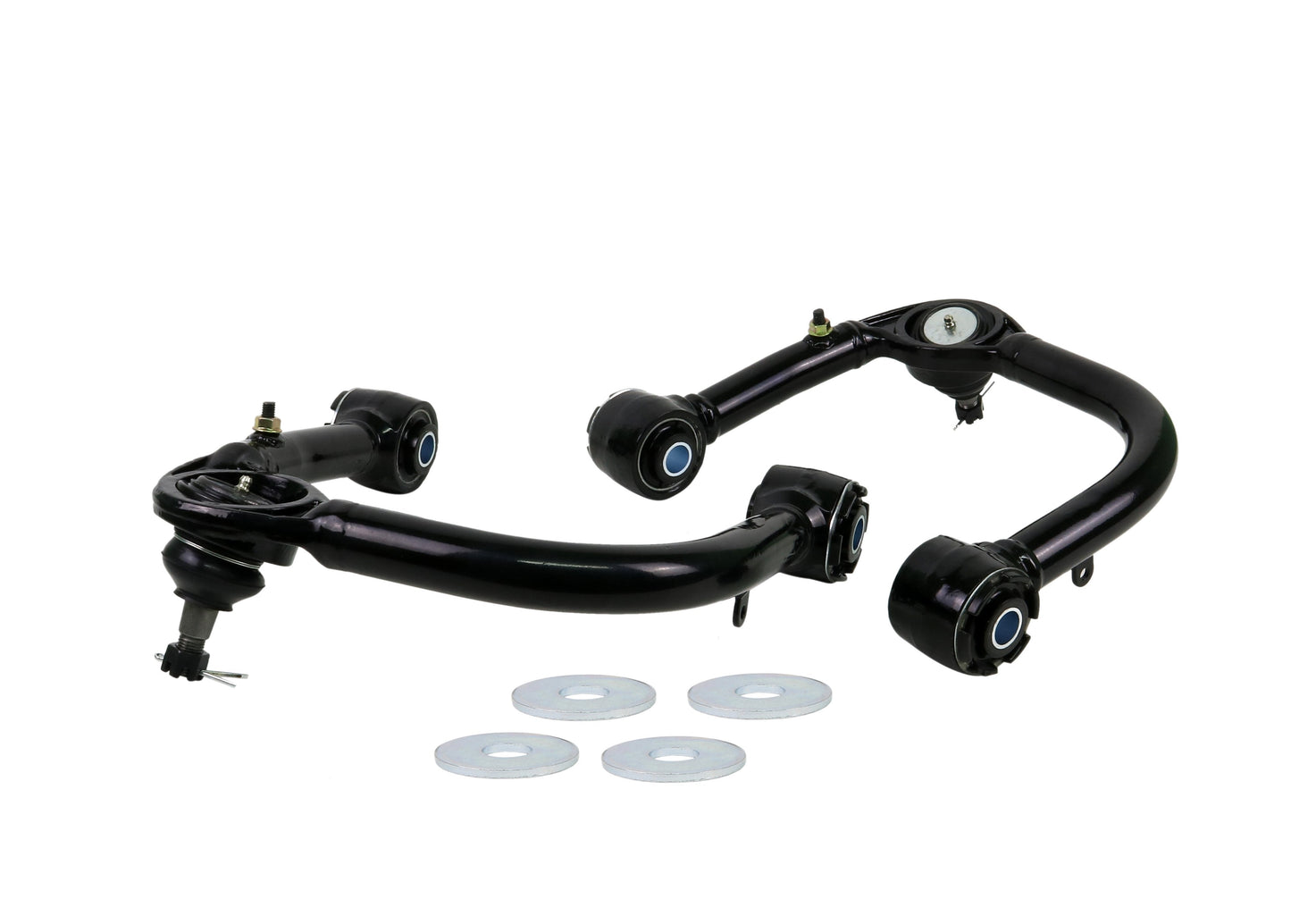

Front Control Arm Upper Arm by Whiteline

A short fall of the modern day IFS 4wd is the adjustment range provided for successful wheel alignments, this becomes even more of an issue when the vehicle is lifted by more than 1 inch. Not only does the vehicle run into camber and caster issues, but ball joint articulation and clearance issues to the coil over strut at ride and droop height.

The new Whiteline offset UCA (Upper Control Arm) is an all-in-one solution for any vehicle that has been lifted between 30mm and 70mm. Providing an increase between +2.5 and +3.5 degrees of caster and up to 1.5 degrees of negative camber increase (figures quoted are based off an approximate 50mm/ 2 inch) along with greater clearance to the coil over strut and more articulation of the arm by virtue of new maintenance free GIIRO bushing technology.

Features

  • Precision engineered for your vehicle
  • Made from premium materials to endure years of abuse

Benefits

  • Tested to outperform all comparable pro

Applications

  • 2008-2020 Lexus LX570
  • 2008-2020 Toyota Land Cruiser

What's In The Box?

  • 1 - Front Control Arm Upper Arm

Warranty

  • Manufacturer Standard Warranty
