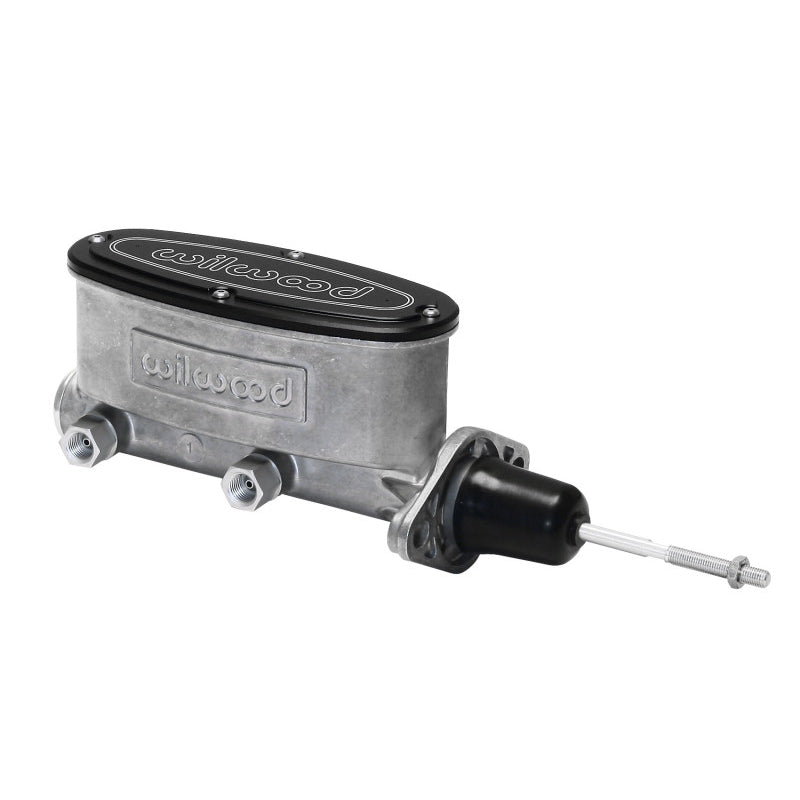

Wilwood Aluminum Tandem Master Cylinder - .875" Bore
Wilwood Aluminum Tandem Master Cylinder - .875" Bore
SKU:260-9439
Out of stock
Couldn't load pickup availability
The Wilwood Aluminum Tandem Master Cylinder with a 0.875-inch bore is a high-performance brake component designed for manual applications. Constructed from durable aluminum, this master cylinder features a stroke length of 1.10 inches and a fluid volume ratio of 2:1 between the primary and secondary circuits. It is available in three finishes: plain, ball burnished, and black e-coat, providing options for corrosion resistance and aesthetic preference. The design includes fluid outlet ports on both sides of the bore, facilitating versatile plumbing configurations. Compatible with a range of vehicles, this master cylinder is engineered to deliver consistent, reliable braking performance, making it suitable for street and track use. Its robust construction ensures durability under demanding conditions, while the included pushrod simplifies installation.
This master cylinder is designed to fit mount flanges measuring from 3.22 inches to 3.40 inches, a common size for most domestic cars and trucks from the mid-1960s to the present. It is primarily intended for manual brake systems, serving as a direct replacement or upgrade for existing units. The product is well-suited for custom builds, restorations, or performance upgrades where precise brake modulation and reliability are essential. Installation involves bolting onto compatible mounting points, with fluid connections on both sides of the bore for flexible routing. The kit includes the master cylinder and pushrod, ensuring a straightforward upgrade process for enthusiasts and professionals alike.
Share
Overview
Overview
Wilwood's 7/8" or 15/16" bore Tandem Aluminum Master Cylinders available in 3 finishes, plain, ball burnished, and black e-coat. These master cylinders are designed primarily for manual applications and include a pushrod. They're designed for mount flanges from 3.22" to 3.40", common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10" with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which includes brackets and stainless lines specifically for use with this master cylinder, see PN 260-13190, or 220-13189 for retrofit kit.
Wilwood is a leading manufacturer of high-performance brake systems and components to fit a wide range of track and street applications. They offer everything from individual components like rotors, calipers, and pads to complete bolt-on kits.
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motorsports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 320 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment to heavy-duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
