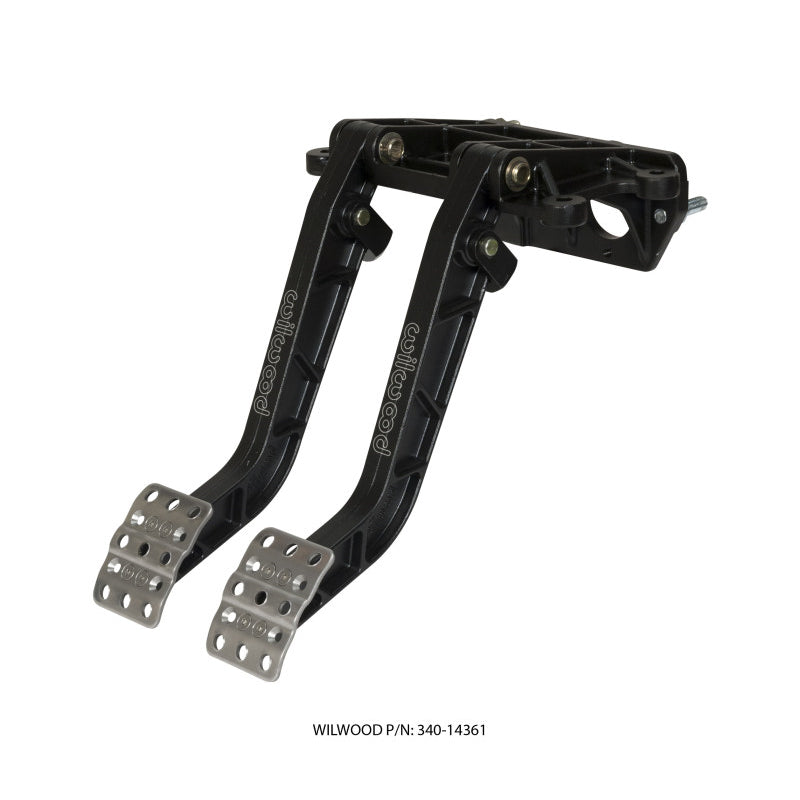

Wilwood Swing Mount Brake/Clutch Pedal Assembly

Universal Fitment

Part #: 340-14361

Overview

The Wilwood Swing Mount Tandem Brake and Clutch Assembly is a versatile and innovative solution designed for custom vehicle builds and performance applications. This assembly simplifies the installation of a tandem outlet, single pushrod brake master cylinder alongside a hydraulic clutch master cylinder, positioned outside the firewall for improved accessibility and space management. Crafted with a lightweight aluminum frame, it offers durability without adding unnecessary weight, making it ideal for both street and race vehicles. The high-strength reinforced I-Beam style forged pedal arms are available in ratios of 6.25:1 or 7.00:1, providing precise pedal feel and responsiveness. The non-skid waffled pedal pads can be laterally adjusted to suit driver preferences or to accommodate clearance requirements, ensuring a comfortable and ergonomic driving experience. Whether you're building a custom hot rod, race car, or upgrading your vehicle's pedal system, this assembly offers a reliable and adaptable solution to meet your needs.

Key Features

This pedal assembly combines thoughtful design with practical functionality to enhance your vehicle's control system. Key features include:

• Lightweight aluminum construction for strength and reduced weight
• Reinforced I-Beam forged pedal arms for durability and stability
• Adjustable pedal pads for personalized positioning and clearance
• Designed to support tandem outlet master cylinders for brake and clutch systems
• Easy outside-the-firewall mounting for simplified installation
• Available in multiple ratios to match driver preference and vehicle setup
• Non-skid pedal pads for secure foot placement during operation

Construction & Design

The assembly features a lightweight aluminum frame that balances strength with weight savings, ideal for performance and custom applications. The reinforced I-Beam forged pedal arms are engineered for high strength and longevity, ensuring consistent pedal feel under demanding conditions. The lateral adjustment capability of the pedal pads allows for tailored ergonomics, enhancing driver comfort and control.

Driving Feel & Feedback

Designed to provide a responsive and predictable pedal feel, this assembly helps improve driver confidence during braking and clutch engagement. The adjustable pedal pads enable precise positioning, contributing to better ergonomics and reduced fatigue during extended driving sessions.

Installation & Fitment

This swing mount assembly is intended for outside-the-firewall mounting, simplifying installation in custom or race vehicles. Compatibility with most tandem outlet master cylinders makes it a versatile choice for various setups. Proper fitment should be verified against your vehicle's specifications and the part number provided.

What’s Included

The package includes the swing mount tandem brake and clutch pedal assembly, with all necessary mounting hardware and adjustable pedal pads to facilitate installation and customization.
