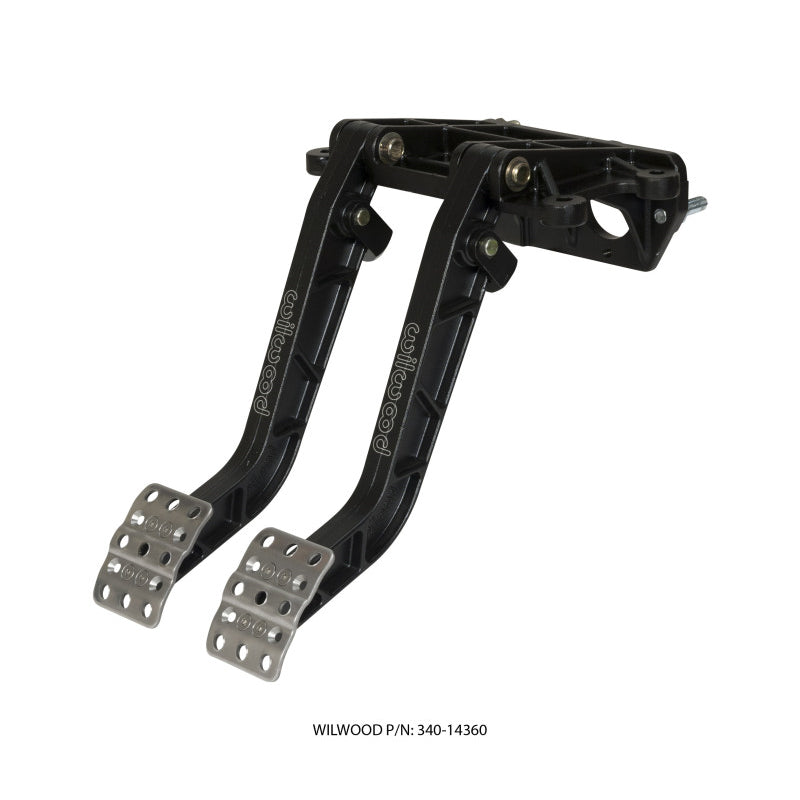

Wilwood Pedal Assembly

Universal Fitment

Part #: 340-14360

Overview

The Wilwood Pedal Assembly is a high-performance brake and clutch pedal system designed for custom applications and vehicle builders seeking precise control and reliable operation. Crafted with a lightweight aluminum frame and reinforced I-beam style forged pedal arms, this assembly offers durability and strength while maintaining a sleek, performance-oriented appearance. Its forward swing design and adjustable pedal pads provide customizable ergonomics, making it suitable for a wide range of vehicle configurations. Whether you're building a race car, hot rod, or custom project, this pedal assembly helps enhance your vehicle’s control and driver feel, supporting confident braking and clutch engagement under demanding conditions.

Key Features

This pedal assembly combines innovative design with practical functionality to deliver a superior driving experience. Key features include:

• Lightweight aluminum construction for reduced weight and increased responsiveness
• High-strength reinforced I-beam forged pedal arms for durability and longevity
• Adjustable, non-skid waffled pedal pads for personalized ergonomics and safety
• Forward swing mounting for easy installation and optimal pedal feel
• Designed to accommodate tandem outlet master cylinders for integrated brake and clutch systems
• Compatible with most tandem outlet master cylinders for versatile application
• Supports a 6.25:1 or 7.00:1 pedal ratio for tailored pedal effort and response

Construction & Design

The assembly features a precision-machined aluminum frame that balances strength and lightweight performance. The reinforced I-beam style pedal arms are forged for maximum durability, ensuring reliable operation over time. The non-skid pedal pads are designed for secure foot placement and can be laterally adjusted to suit driver preferences or clearance requirements, providing a customizable driving interface.

Driving Feel & Feedback

This pedal system is engineered to deliver a responsive and predictable pedal feel, enhancing driver confidence during braking and clutch engagement. The adjustable pedal pads and optimized ratio help achieve a comfortable and controlled pedal travel, supporting precise modulation and feedback for spirited driving or demanding applications.

Installation & Fitment

Designed for straightforward installation, this assembly mounts with a forward swing configuration, facilitating compatibility with a variety of vehicle setups. Proper fitment should be verified against your specific vehicle and master cylinder requirements to ensure optimal performance.

What’s Included

The package includes the pedal assembly with forged pedal arms, adjustable non-skid pedal pads, mounting hardware, and detailed installation instructions. Additional components such as master cylinders are not included and must be sourced separately to complete your setup.
