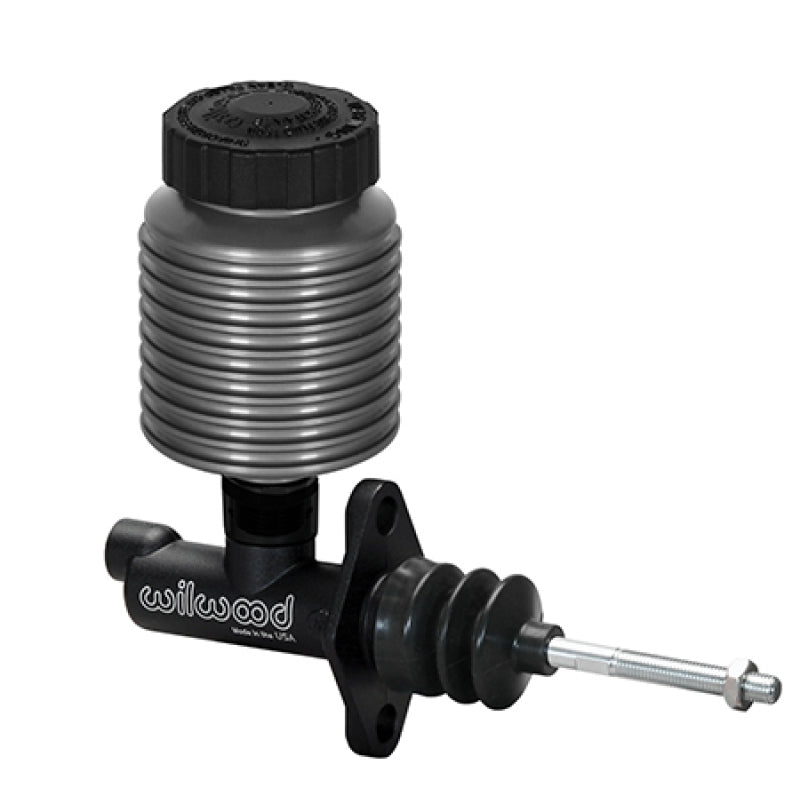

Wilwood Compact Remote Flange Mount Master Cylinder with Aluminum Reservoir - 1-1/8" Bore

Universal Fitment for Custom and Performance Brake Systems

Part #: 261-16841-1.12

Overview

The Wilwood Compact Remote Flange Mount Master Cylinder is a precision-engineered hydraulic component designed to deliver reliable and responsive braking performance in a compact package. Often referred to as the “shorty” master cylinder due to its remarkably small size of just 3.375 inches in length, this unit is ideal for custom brake setups where space is limited but performance cannot be compromised.

Built for automotive enthusiasts, hot rod builders, and racers who demand a high-quality master cylinder that fits tight spaces without sacrificing function, this Wilwood product offers excellent pedal feel and consistent hydraulic pressure. The integrated machined billet aluminum reservoir features a classic finned design, providing both a lightweight construction and passive cooling benefits, making it a stylish and functional upgrade for your brake system.

Whether you are upgrading your street car, building a custom race car, or restoring a classic vehicle, this master cylinder supports a wide range of applications and brake configurations, helping you achieve precise control and improved braking response.

Key Features

This compact master cylinder combines advanced materials and thoughtful design to meet the needs of performance brake systems. Key features include:

• Compact size measuring only 3.375 inches long, allowing installation in tight or confined spaces where traditional master cylinders won’t fit.
• Available bore sizes ranging from 5/8" to 1-1/8" to match various brake system requirements and optimize hydraulic pressure and pedal effort.
• Machined billet aluminum reservoir with classic finned styling, reducing weight while enhancing heat dissipation for improved fluid temperature management.
• Remote flange mount design enables flexible installation options, making it easier to integrate into custom brake setups or retrofit applications.
• Durable construction with high-quality materials ensures long-lasting performance and resistance to corrosion and wear.
• Compatible with a wide variety of brake fluid types and systems, providing versatility for street, strip, or track use.
• Precision-machined components deliver consistent hydraulic pressure and excellent pedal feel for enhanced driver confidence.
• Designed to work seamlessly with Wilwood’s extensive line of brake components, including calipers, boosters, and proportioning valves.

Construction & Design

The Wilwood Compact Remote Flange Mount Master Cylinder features a robust design focused on durability and performance. The reservoir is crafted from billet aluminum, which not only reduces overall weight compared to traditional steel or plastic reservoirs but also offers superior heat dissipation through its finned surface. This passive cooling helps maintain brake fluid integrity during demanding driving conditions.

The master cylinder body is engineered for strength and precision, ensuring reliable hydraulic pressure delivery. Its remote flange mount configuration allows for flexible placement in the engine bay or chassis, accommodating custom builds and tight packaging constraints. The compact length of just over three inches makes it one of the shortest master cylinders available, ideal for applications where space is at a premium.

Every component is machined to exacting tolerances, providing smooth piston operation and consistent performance over time. The finish and fitment reflect Wilwood’s commitment to quality and attention to detail, making this master cylinder both a functional and visually appealing upgrade.

Installation & Fitment

The remote flange mount design simplifies installation by allowing the master cylinder to be mounted in various orientations and locations, depending on your vehicle’s layout and brake system design. This flexibility is particularly beneficial for custom builds, hot rods, and race cars where standard master cylinder placement is not feasible.

Installation typically involves connecting the master cylinder to your existing brake lines and mounting it securely using the flange hardware. No special modifications or machining are generally required, making it a straightforward upgrade for experienced installers and professional shops alike.

• Compact size fits in tight spaces where standard master cylinders cannot.
• Flange mount allows flexible positioning for custom brake setups.
• No cutting, drilling, or special tuning is required for most applications.

What's Included

• Wilwood Compact Remote Flange Mount Master Cylinder with 1-1/8" bore
• Machined billet aluminum finned reservoir
• Mounting flange and hardware for secure installation
• Seals and internal components pre-installed for ready-to-use assembly
• Installation instructions and technical documentation

Ideal For

This master cylinder is perfect for:

• Hot rod builders seeking authentic styling combined with modern performance
• Custom and kit car projects requiring compact brake components
• Race and track vehicles needing precise hydraulic control in limited space
• Classic car restorations where space constraints prevent use of standard master cylinders
• Enthusiasts upgrading brake systems for improved pedal feel and reliability
