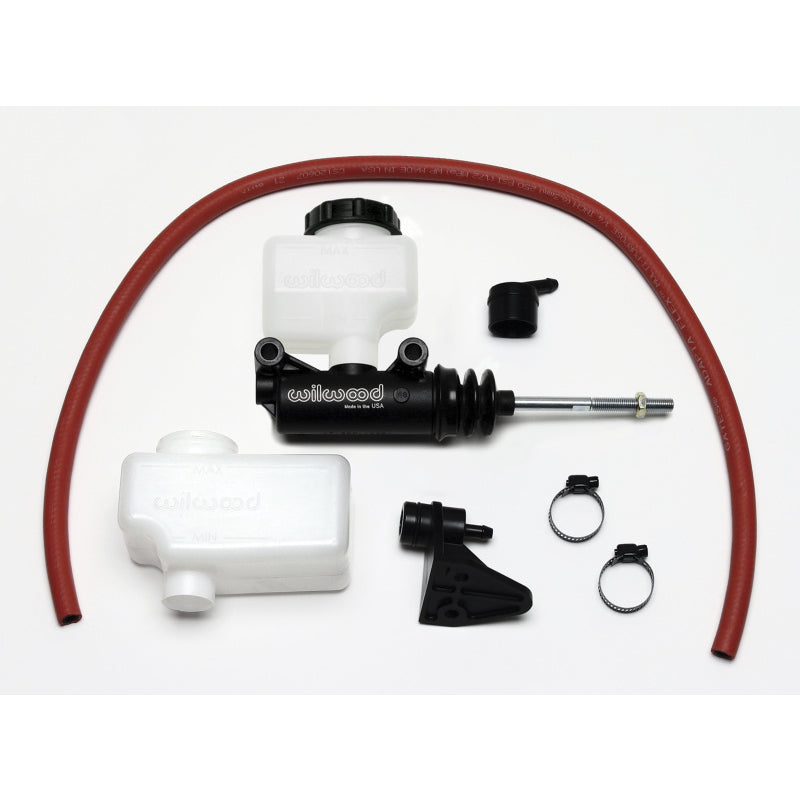

Wilwood Compact Remote Side Mount Master Cylinder - 1" Bore
Wilwood Compact Remote Side Mount Master Cylinder - 1" Bore
SKU:260-12388
Out of stock
Couldn't load pickup availability
The Wilwood Compact Remote Side Mount Master Cylinder is a high-performance brake component designed for applications with limited space. Featuring a compact 3.37-inch body, it provides the output capacity of a full-size master cylinder while offering enhanced clearance—specifically 2.16 inches more—between the mounting boss and fluid outlet. Constructed with integral side mounting lugs spaced 3.00 inches apart and lacking a traditional mounting flange, this design allows for versatile installation in tight engine bays or custom setups. The master cylinder includes a full 1.12-inch bore, ensuring reliable hydraulic pressure and consistent braking performance. Its durable construction and innovative design make it suitable for racing, street, or custom applications where space constraints are critical without sacrificing brake performance.
This side-mount master cylinder is compatible with a variety of vehicle setups requiring a remote brake master cylinder, particularly in custom or limited-space configurations. It is ideal for use on race cars, hot rods, or modified street vehicles that demand a compact yet powerful hydraulic system. The product is designed for direct bolt-on installation, replacing traditional master cylinders in applications where space is at a premium. It can be mounted on the driver’s side or other strategic locations to optimize space and accessibility. The kit includes the master cylinder and necessary mounting hardware, making it suitable for custom brake line routing and performance upgrades in various automotive projects.
Share
Overview
Overview
Wilwood's Compact Combination (Side Mount) Master Cylinders have been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37"compact body provides 2.16" of additional clearance between the mounting boss and the fluid outlet. The new body design incorporates integral side mounting lugs with a 3.00" center to distance and no traditional mounting flange, which further enhances its ability to mount in tight spaces. A full 1.12" of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8" NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.
Wilwood is a leading manufacturer of high-performance brake systems and components to fit a wide range of track and street applications. They offer everything from individual components like rotors, calipers, and pads to complete bolt-on kits.
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motorsports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 320 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment to heavy-duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
Product Descripton:
