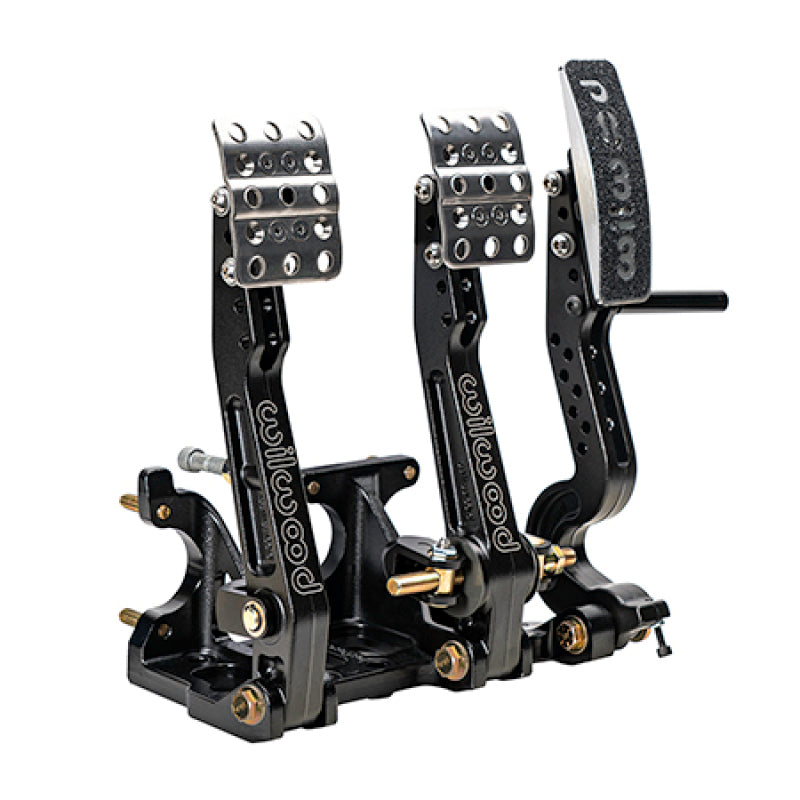

Wilwood Floor Mount Brake, Clutch and Throttle Pedal - Adjustable Ratio

Rear Engine Vehicle Pedal Assembly

Part #: 340-16602

Overview

The Wilwood Floor Mount Brake, Clutch, and Throttle Pedal assembly is a versatile and precision-engineered pedal system designed specifically for rear engine vehicles. This all-in-one floor mount assembly integrates brake, clutch, and throttle pedals into a compact unit that optimizes driver control and pedal feel. Whether you are building a custom race car, restoring a classic, or upgrading your performance vehicle, this pedal assembly offers the adjustability and durability needed for serious driving applications.

Ideal for enthusiasts who demand precise pedal modulation and customizable brake bias, the assembly features an adjustable ratio brake pedal that allows you to tailor pedal effort and feedback to your driving style. The integrated balance bar enables fine-tuning of front-to-rear brake bias, enhancing braking performance and vehicle stability. Additionally, the throttle pedal includes a pull rod designed for rear engine configurations, ensuring smooth and reliable throttle response.

With its robust construction and thoughtful design, the Wilwood pedal assembly provides a professional-grade solution for drivers seeking improved control, comfort, and performance in a single, floor-mounted package.

Key Features

This pedal assembly combines multiple functions into one compact unit, offering adjustability and precision for rear engine vehicles. Key features include:

• Adjustable ratio brake pedal with three settings: 4.75:1, 5.25:1, and 5.75:1, allowing you to customize pedal feel and effort.
• Integrated balance bar for precise front-to-rear brake bias adjustment, enabling optimal braking balance and vehicle control.
• Floor mount design consolidates brake, clutch, and throttle pedals into a single assembly, saving space and simplifying installation.
• Clutch and two brake master cylinders mount directly to the assembly for a clean, organized setup.
• Throttle pedal features a pull rod mechanism tailored for rear engine applications, ensuring smooth throttle actuation.
• Non-skid waffled pedal pads provide secure foot grip and lateral adjustability for ergonomic positioning.
• Heavy-duty construction designed to withstand rigorous use in performance and racing environments.
• Adjustable pedal head height to accommodate different driver preferences and vehicle configurations.

Construction & Design

The Wilwood pedal assembly is engineered with durability and precision in mind. The floor mount design integrates all three pedals into a single, sturdy framework that mounts securely to the vehicle floor. The brake pedal features an adjustable ratio balance bar that allows vertical adjustment of the pedal head, providing three distinct leverage ratios to fine-tune pedal effort and feedback. This design enhances driver confidence by delivering a pedal feel that matches personal preference and vehicle setup.

The assembly accommodates mounting of a clutch master cylinder and two brake master cylinders directly to the frame, streamlining hydraulic connections and reducing clutter. The throttle pedal’s pull rod is specifically designed for rear engine vehicles, ensuring reliable throttle linkage operation without interference. Non-skid waffled pedal pads are laterally adjustable, allowing drivers to position pedals for optimal comfort and control.

Installation & Fitment

This pedal assembly is designed for rear engine vehicles and mounts directly to the floor for a secure and compact installation. It utilizes standard mounting points for the master cylinders and throttle linkage, simplifying the integration into custom or retrofit applications. The adjustable features allow for fine-tuning without the need for additional modifications.

No cutting, drilling, or special tuning is required for installation, making it a straightforward upgrade for builders and racers looking to improve pedal feel and control in their rear engine cars.

• Floor mount design for secure and compact installation
• Direct mounting for clutch and brake master cylinders
• Adjustable pedal ratios and lateral pedal pad positioning
• No cutting, drilling, or special tuning required

What's Included

• Complete floor mount pedal assembly with brake, clutch, and throttle pedals
• Adjustable ratio balance bar brake pedal
• Mounting provisions for clutch and two brake master cylinders
• Throttle pedal with pull rod for rear engine applications
• Non-skid waffled pedal pads with lateral adjustment capability
• All necessary hardware for assembly and installation

Ideal For

This pedal assembly is perfect for:

• Builders of custom rear engine race cars and performance vehicles
• Enthusiasts seeking precise brake bias adjustment and pedal feel customization
• Drivers who want a compact, integrated pedal solution for brake, clutch, and throttle
• Applications requiring durable, high-quality pedal components for spirited driving or track use
