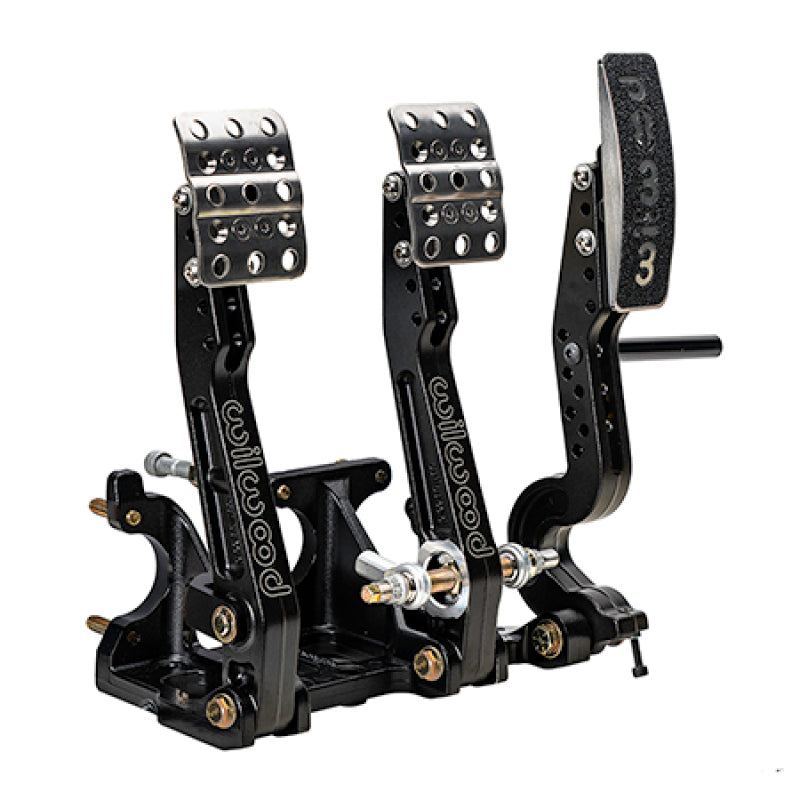

Wilwood Floor Mount Tru-Bar Brake, Clutch and Throttle Pedal - Adjustable Ratio

Rear Engine Vehicles

Part #: 340-16604

Overview

The Wilwood Floor Mount Tru-Bar Brake, Clutch, and Throttle Pedal assembly is a precision-engineered pedal system designed specifically for rear engine cars. This all-in-one floor mount unit integrates adjustable brake, clutch, and throttle pedals into a compact and durable assembly, providing enhanced driver control and comfort. Whether you are a performance enthusiast or a dedicated racer, this pedal assembly offers the adjustability and reliability needed for precise pedal feel and balanced braking performance.

Built to improve pedal ergonomics and brake bias tuning, the Wilwood Tru-Bar assembly allows you to customize your pedal ratios and brake balance to suit your driving style and vehicle setup. The adjustable pedal head ratios and friction-free balance bar make it ideal for drivers seeking enhanced modulation and pedal feedback in demanding driving conditions.

Key Features

This pedal assembly combines innovative design with robust construction to deliver superior performance and adjustability. Key features include:

• Adjustable pedal head with vertical positioning to provide three distinct pedal ratios: 4.75:1, 5.25:1, and 5.75:1, allowing you to tailor pedal effort and feel.
• Integrated clutch and two brake master cylinder mounting points for a complete pedal solution in one assembly.
• Friction-free, trunnion-based adjustable Tru-Bar balance bar enables precise front-to-rear brake bias tuning for optimal braking performance.
• Floor mount design engineered specifically for rear engine applications, ensuring proper fitment and pedal positioning.
• Throttle pedal includes a pull rod mechanism designed to accommodate rear engine throttle linkage setups.
• Non-skid waffled pedal surfaces provide secure foot grip under all driving conditions.
• Durable construction with high-quality materials designed to withstand rigorous use and provide long-lasting reliability.
• Compact assembly reduces cockpit clutter while maintaining full adjustability and functionality.

Construction & Design

The Wilwood Tru-Bar pedal assembly is crafted with precision and durability in mind. The floor mount design ensures a solid and secure installation in rear engine vehicles, while the adjustable pedal head allows vertical movement to achieve the desired leverage ratio. This flexibility lets drivers optimize pedal feel for either increased feedback or reduced effort, depending on personal preference and driving conditions.

The friction-free trunnion-based balance bar is a standout feature, allowing smooth and precise adjustment of brake bias without binding or excess play. This design enhances brake modulation and helps maintain consistent pedal feel throughout demanding driving sessions. The inclusion of mounting points for both clutch and dual brake master cylinders consolidates multiple functions into a single, streamlined assembly.

Installation & Fitment

The Wilwood Floor Mount Tru-Bar assembly is designed for straightforward installation in rear engine cars. It mounts securely to the floor, utilizing factory or custom mounting points depending on the vehicle. The integrated design simplifies the installation process by combining brake, clutch, and throttle pedals into one unit, reducing the need for multiple separate components.

No cutting, drilling, or special tuning is required for proper installation, making it a convenient upgrade for drivers looking to enhance pedal control and adjustability without extensive modifications.

• Floor mount installation tailored for rear engine vehicles
• Uses existing mounting points or straightforward bolt-on hardware
• No modifications or custom fabrication necessary

What’s Included

• Complete floor mount pedal assembly with adjustable brake, clutch, and throttle pedals
• Adjustable Tru-Bar balance bar for brake bias tuning
• Mounting hardware for clutch and dual brake master cylinders
• Throttle pedal with pull rod for rear engine throttle linkage
• Installation instructions

Ideal For

This pedal assembly is ideal for drivers of rear engine cars who demand precise pedal control and adjustability. It suits:

• Performance enthusiasts seeking improved brake bias tuning and pedal feel
• Track and race drivers requiring reliable and adjustable pedal ratios
• Street drivers wanting enhanced ergonomics and pedal response
• Builders and restorers of rear engine vehicles looking for a comprehensive pedal solution
