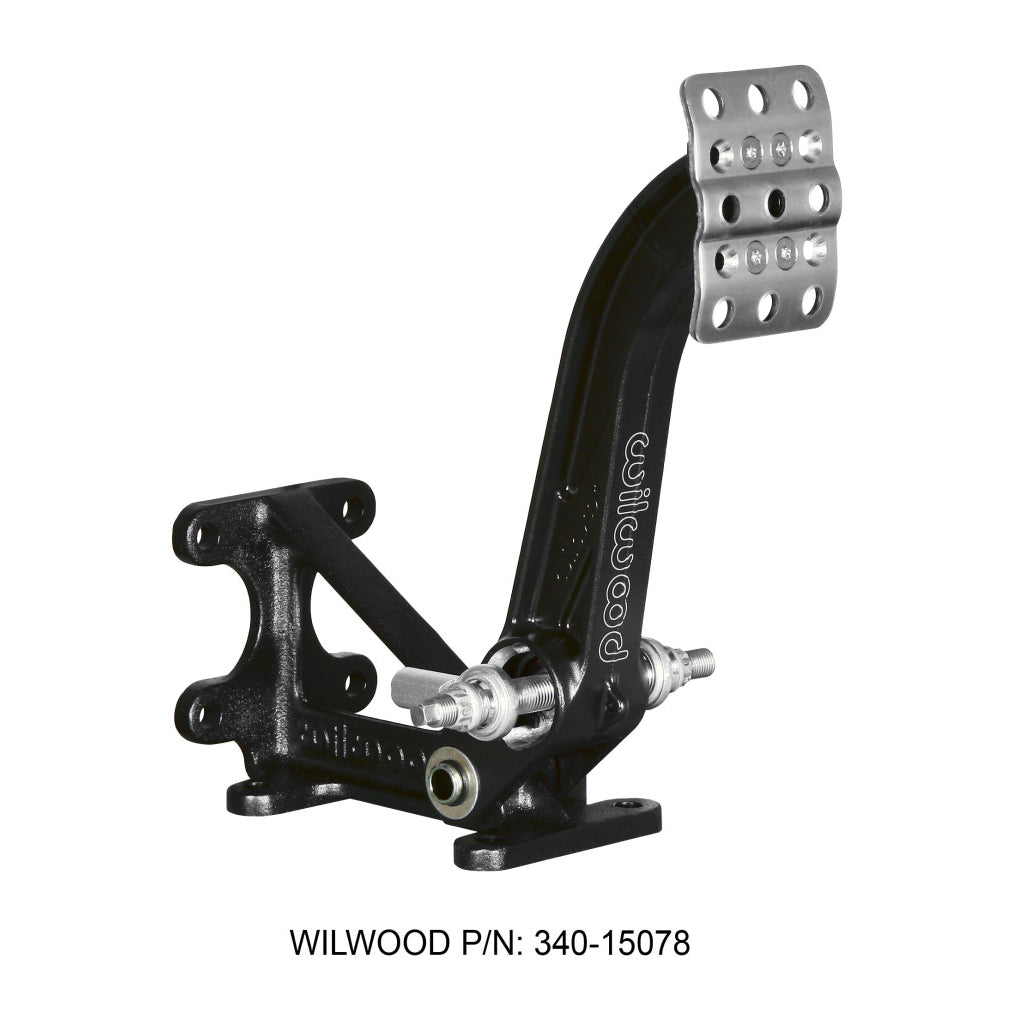

Wilwood Floor Mount Tru-Bar Pedals- 6:1
Wilwood Floor Mount Tru-Bar Pedals- 6:1
SKU:340-15078
In stock
Couldn't load pickup availability
The Wilwood Tru-Bar Floor Mount Pedals with a 6:1 ratio are high-performance brake pedal assemblies designed for race-prepped vehicles. Featuring Wilwood's innovative Tru-Bar balance bar system, these pedals incorporate a fixed trunnion bearing in the pedal arm and spherical rod-end bearing pushrod attachments, ensuring maximum precision and control. The design allows for fine adjustment of brake bias, making them ideal for competitive motorsport applications. Constructed with a larger diameter 7/16-20 bar, these pedals deliver quicker response and enhanced durability, supporting aggressive driving and high-performance braking demands.
Designed to fit all Wilwood balance bar style pedal assemblies, these floor-mounted pedals utilize the same chassis and master cylinder mounting points for straightforward installation. Suitable for a wide range of race cars and performance builds, they provide a direct replacement or upgrade for existing pedal setups. The robust construction and adjustable features make them suitable for track use, offering improved pedal feel and modulation. Installation typically involves bolting into the existing mounting points, with compatibility confirmed for vehicles utilizing Wilwood's balance bar systems.
Share
Overview
Overview
Wilwood's Tru-Bar balance bar system is now available in a Forward Floor mount pedal with a 6:1 ratio. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8" diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood's Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers.
Wilwood is a leading manufacturer of high-performance brake systems and components to fit a wide range of track and street applications. They offer everything from individual components like rotors, calipers, and pads to complete bolt-on kits.
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motorsports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 320 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment to heavy-duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
Product Descripton:
