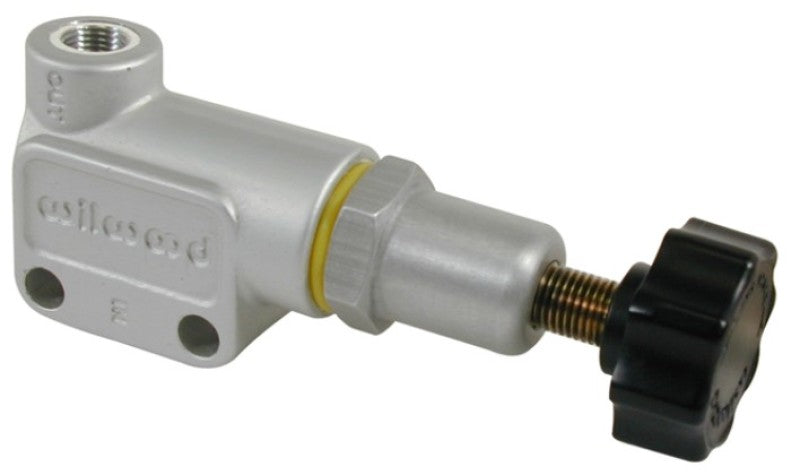

Wilwood Proportioning Valve
Wilwood Proportioning Valve
SKU:260-12627
In stock
Couldn't load pickup availability
The Wilwood Proportioning Valve is an adjustable brake proportioning device designed to optimize braking performance by precisely controlling pressure distribution between the front and rear brakes. Constructed from a compact forged billet design, this valve offers durability and strength under demanding conditions. It features a fine-threaded adjuster knob that allows for fine-tuning pressure adjustments from 100 to 1000 PSI, enabling users to achieve optimal brake balance. The maximum pressure reduction of 57% provides significant flexibility for customizing braking response, making it suitable for high-performance applications. This valve enhances braking efficiency and safety by allowing precise pressure modulation, which is critical for track days, racing, or custom street setups.
Designed to fit a wide range of vehicles, the Wilwood Proportioning Valve is ideal for use on various makes and models requiring adjustable brake bias. It is suitable for applications where fine pressure control is necessary to improve braking stability and pedal feel. The valve is a direct replacement or upgrade for existing proportioning components, offering a straightforward installation process. It is compatible with brake systems that demand precise pressure regulation and is commonly used in performance street, track, or racing setups. The kit includes the proportioning valve and necessary fittings for a secure, leak-free connection, ensuring reliable operation in demanding driving conditions.
Share
Overview
Overview
The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. This adjustment lets you fine tune the front to rear braking balance by proportionally decreasing the rear brake line pressure. Valves weigh only 5.2 ounces and have two .25" side mounting holes spaced 1.00" apart. This valve varies from our standard Knob Style Proportioning valve, as the inlet and outlet ports are 10MM X 1 bubble flare seats and do not require tube nut adapters to directly install tubing with bubble flare 10MM x 1 nuts.
Wilwood is a leading manufacturer of high-performance brake systems and components to fit a wide range of track and street applications. They offer everything from individual components like rotors, calipers, and pads to complete bolt-on kits.
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motorsports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 320 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment to heavy-duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
