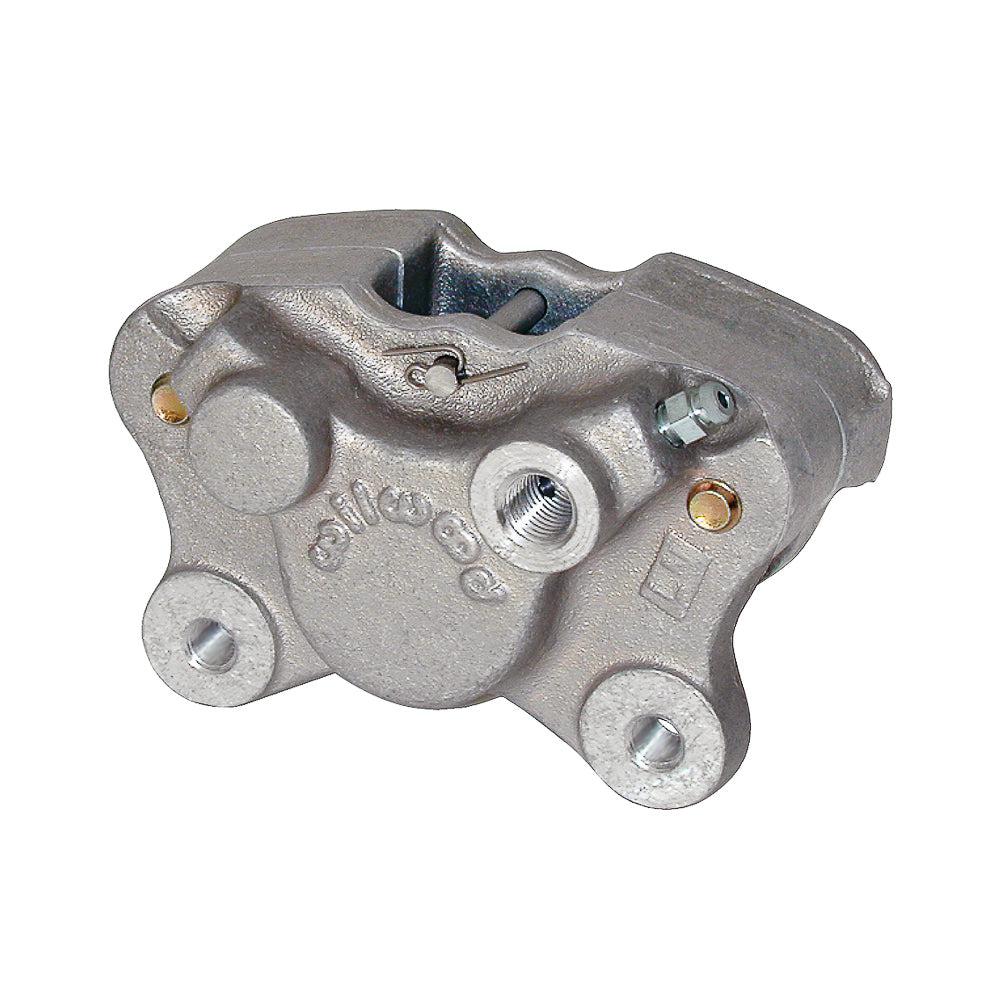

Wilwood PS-1 Brake Caliper - Passenger Side - 2.5 in Lug Mount
Wilwood PS-1 Brake Caliper - Passenger Side - 2.5 in Lug Mount
SKU:120-5453
In stock
Couldn't load pickup availability
The Wilwood PS-1 Brake Caliper is a compact, lightweight performance brake component designed for high-efficiency braking systems. Constructed from cast aluminum, this caliper weighs only 0.93 pounds, offering a sleek low-profile design that minimizes weight without sacrificing strength. It features two stainless steel deep cup pistons that reduce heat transfer from the 0.30-inch thick brake pads to the brake fluid, enhancing thermal management during intense braking. The caliper employs high-temperature square piston seals to ensure optimal piston retraction and consistent pad contact. Internal crossover brake fluid passages eliminate external crossover tubes, simplifying installation and improving fluid flow. Overall, the PS-1 caliper delivers reliable, high-performance braking suitable for demanding applications.
Designed for rotors with diameters from 6.00 to 9.00 inches, the Wilwood PS-1 caliper fits a variety of performance vehicles requiring a passenger side, 2.5-inch lug mount setup. Its versatile design makes it suitable for track days, street use, or racing applications where precise braking response and heat management are critical. This direct bolt-on caliper is engineered for easy installation and compatibility with existing Wilwood brake systems. The kit includes the caliper itself, with internal crossover passages for efficient brake fluid flow, ensuring consistent performance under high-stress conditions. Ideal for enthusiasts seeking a durable, lightweight upgrade for improved braking performance.
Share
Overview
Overview
The PS-1 Caliper is compact, lightweight (.93 pounds) and combines the strength of cast aluminum construction with a sleek low profile design. This caliper utilizes two stainless steel deep cup pistons to minimize heat transfer from the .30" thick pad to the brake fluid while employing high temperature square piston seals to control piston retraction. Internal crossover brake fluid passages eliminate the use of external crossover tubes. The PS-1 fits rotors with diameters ranging from 6.00" to 9.00", thickness sizes from .15" to .20".
Product Description:
We proudly feature Wilwood Disc Brakes. For nearly three decades, Wilwood has been deeply involved in all types of motor sports. This involvement includes more than just hands-on experience from expert design and development engineers. Wilwood's high performance racing disc brake components include Wilwood Brake Calipers, Wilwood Brake Rotors, Wilwood Rotor Mounting Hats, Wilwood Wide 5 Hubs, Wilwood Master Cylinders, Wilwood Brake Pedals and other Wilwood Disc Brakes components. Wilwood Brake Calipers are offered with a choice of piston sizes, construction and material and feature Stainless steel pistons or Wilwood's exclusive multi-piece insulated ThermlockA pistons. We offer Wilwood Forged Billet Superlite Calipers, Wilwood Forged Billet Dynalite Calipers, Wilwood GM Metric Calipers, Wilwood GM III Calipers, Wilwood Billet Dynalite Single Calipers, Wilwood Billet NDL Calipers, Wilwood Billet Dynalite Calipers, Wilwood Forged Billet Superlite FSL Calipers, Wilwood Superlite III Calipers, Wilwood Billet Superlite 4 Calipers and Wilwood Superlite III Calipers. Wilwood Engineering produces over 120 different types of high performance disc brake rotors designed specifically for racing applications and Wilwood brake rotors are considered the best in the industry. Wilwood's Rotor Mounting Hats have been precision machined from high strength, lightweight aluminum alloy. Wilwood Engineering's racing brake and clutch pedal assemblies are the result of years of hands-on experience and input from racers and chassis builders that result in durable, lightweight components. Wilwood High-Volume Aluminum Master Cylinders represent the latest refinements in brake pressure actuation and fluid control. The Wilwood PolyMatrix Brake Pads are widely used in all type of motor sports. Wilwood PolyMatrix racing brake pads are available in a highly diversified selection of compounds and pads.
