Wilwood Brake Pedals

Universal Fitment

Part #: 340-12509

Overview

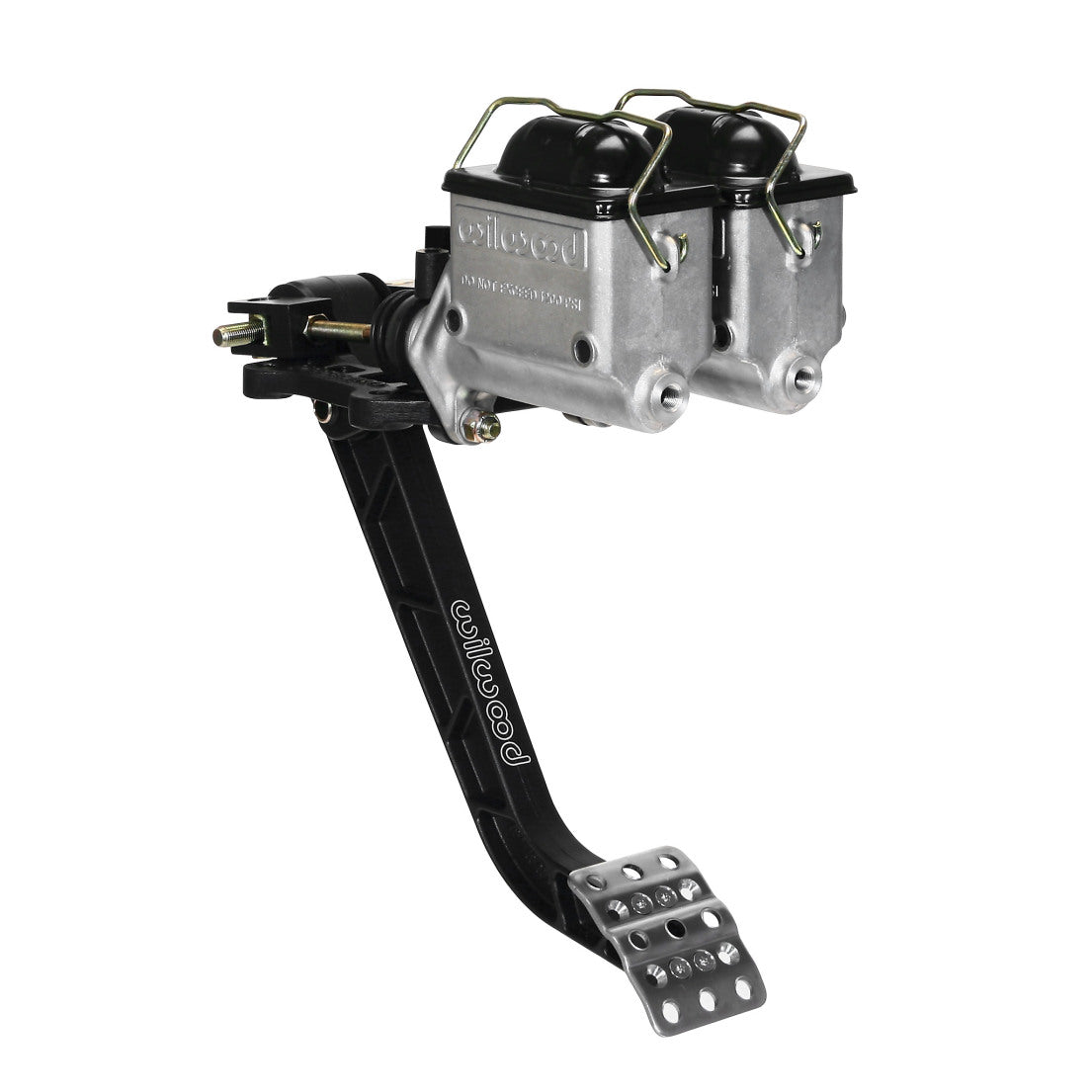

The Wilwood Adj Reverse Mount Brake Pedal is a high-performance pedal assembly designed for custom and race applications. It features a swinging mount that accommodates two single outlet brake master cylinders, mounted in a reverse position inside the firewall for optimized space and driver ergonomics. Crafted from lightweight aluminum, this pedal assembly offers durability and strength while maintaining a low weight profile. Its forged I-Beam style pedal arm with a 6.25:1 ratio provides a responsive and precise pedal feel, essential for confident braking control. The non-skid waffled pedal pad ensures secure foot placement, even during aggressive driving. The adjustable lateral position allows drivers to customize pedal placement for comfort and clearance, enhancing driving ergonomics. The balance bar incorporates a positive detent stop every full turn, maintaining the desired adjustment and providing consistent pedal feel throughout use. Designed for serious enthusiasts and professional racers, this pedal assembly helps improve braking response and driver feedback, supporting precise modulation and control during high-performance driving.

Key Features

This pedal assembly combines innovative design with practical features to enhance your vehicle’s braking system:

• Lightweight aluminum construction for strength and reduced weight
• High-strength forged I-Beam style pedal arm with a 6.25:1 ratio for optimal response
• Adjustable lateral pedal position for personalized fit and clearance
• Non-skid waffled pedal pad for secure foot grip
• Positive detent stops on the balance bar for consistent adjustment
• Reverse mount design for space-efficient installation inside the firewall
• Supports dual master cylinders for improved braking versatility

Construction & Design

The Wilwood brake pedal assembly is constructed from high-quality aluminum, ensuring a lightweight yet durable framework. The forged I-Beam pedal arm is designed for maximum strength and responsiveness, with a precise 6.25:1 ratio that enhances pedal feel and modulation. The adjustable pedal pad and lateral positioning mechanism allow for tailored ergonomics, while the positive detent stops on the balance bar ensure consistent adjustments. The reverse mount configuration is engineered for seamless integration into custom firewall setups, providing a clean and efficient installation.

Driving Feel & Feedback

This pedal assembly is designed to deliver a responsive and predictable braking experience. The forged pedal arm and adjustable features help drivers achieve optimal pedal travel and pressure modulation, resulting in improved control during high-performance driving. The non-skid pedal pad ensures secure foot contact, enhancing driver confidence and feedback. The overall design promotes a firm, linear pedal feel that supports precise braking inputs and consistent performance.

Installation & Fitment

Installation requires mounting within the vehicle’s firewall and connection to the brake master cylinders. The assembly is designed for custom applications, so fitment details should be verified against your specific vehicle setup and requirements. Proper alignment and secure mounting are essential for optimal performance and safety.

What’s Included

The package includes the reverse mount pedal assembly, adjustable pedal pad, and all necessary mounting hardware for installation. Additional components such as master cylinders are not included and must be sourced separately based on your vehicle’s specifications.
