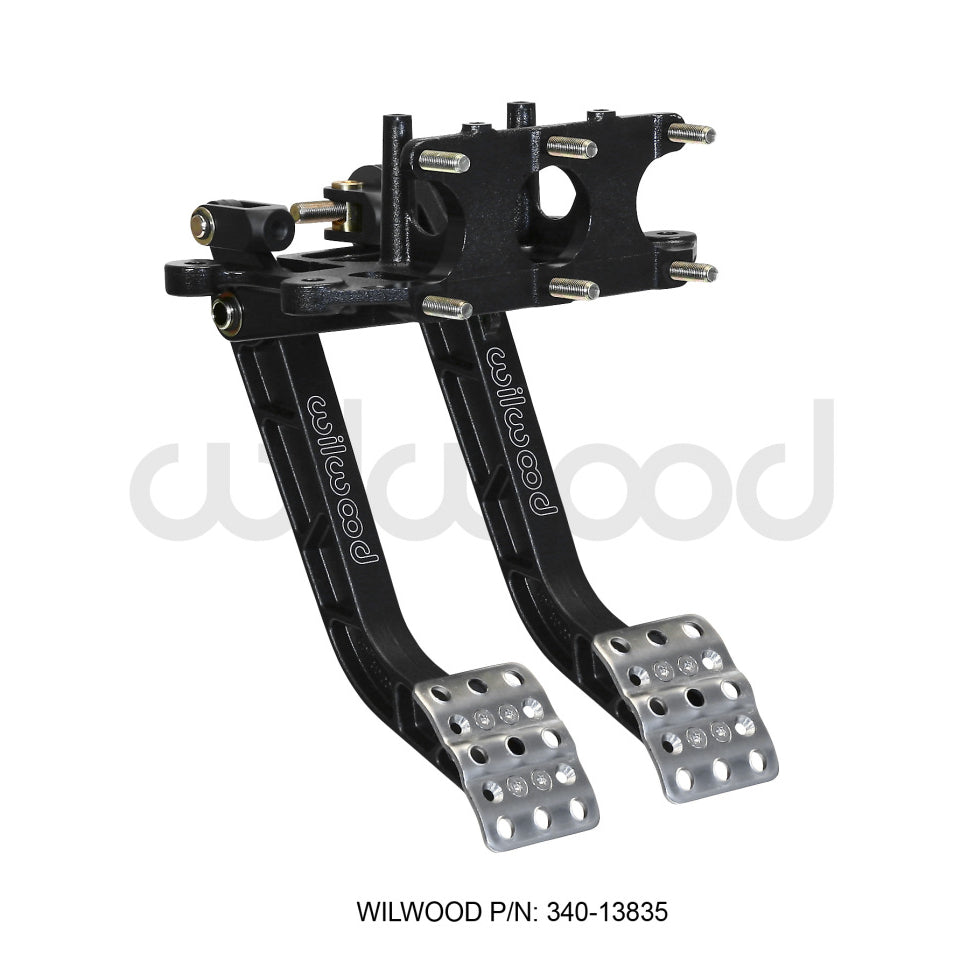

Wilwood Reverse Mount Triple Master Cylinder Pedal Assembly

Universal Fitment

Part #: 340-13835

Overview

The Wilwood Reverse Mount Triple Master Cylinder Pedal Assembly is a high-performance, custom pedal setup designed for racing and high-performance street applications. This innovative swinging mount pedal assembly integrates the brake and clutch pedals into a single unit with master cylinders positioned inside the firewall, providing a clean and efficient installation. Crafted for enthusiasts seeking precise control and reliable operation, this assembly enhances your vehicle’s pedal feel and responsiveness. Its lightweight aluminum frame ensures durability without adding unnecessary weight, making it ideal for race cars, hot rods, and custom builds where performance and aesthetics matter. Designed for drivers who demand a combination of style, functionality, and adjustability, this pedal assembly offers a tailored driving experience. The high-strength forged pedal arms feature a 5.1:1 ratio, providing a responsive pedal feel that supports confident braking and clutch engagement. The non-skid, waffled pedal pads improve grip and comfort during spirited driving or racing conditions. Additionally, the lateral adjustability of the pedals allows for personalized positioning to suit driver preferences or clearance requirements. The inclusion of a balance bar with a positive detent stop ensures consistent pedal adjustment and driver awareness, contributing to precise control and safety.

Key Features

This pedal assembly combines advanced design with practical features to optimize your vehicle’s control system:

• Lightweight aluminum construction for strength and reduced weight
• High-strength forged I-beam style pedal arms with a 5.1:1 ratio for responsive pedal feel
• Swings mounted design integrating brake and clutch pedals into one unit
• Master cylinders positioned inside the firewall for a clean engine bay appearance
• Non-skid, waffled pedal pads for enhanced grip and comfort
• Lateral pedal adjustment for customized fit and clearance
• Balance bar with positive detent stop for consistent pedal positioning

Construction & Design

The assembly features a precision-machined aluminum frame that balances lightweight performance with structural integrity. The forged pedal arms are designed for durability and optimal leverage, supporting high-performance braking and clutch engagement. The internal master cylinder placement not only improves aesthetics but also simplifies installation and maintenance, making it suitable for custom and race applications.

Driving Feel & Feedback

This pedal setup provides a firm, predictable pedal feel that enhances driver confidence. The 5.1:1 ratio ensures quick response and precise modulation, critical for competitive driving or spirited street use. The adjustable pedals and positive detent stop help maintain consistent pedal positioning, contributing to improved feedback and control during operation.

Installation & Fitment

Installation requires mounting the assembly within the vehicle’s firewall and connecting the hydraulic lines to your existing brake and clutch systems. Proper fitment should be verified against your vehicle’s specifications and the part number provided.

What’s Included

The package includes the pedal assembly, master cylinders, and all necessary mounting hardware for a complete upgrade to your vehicle’s pedal system.
