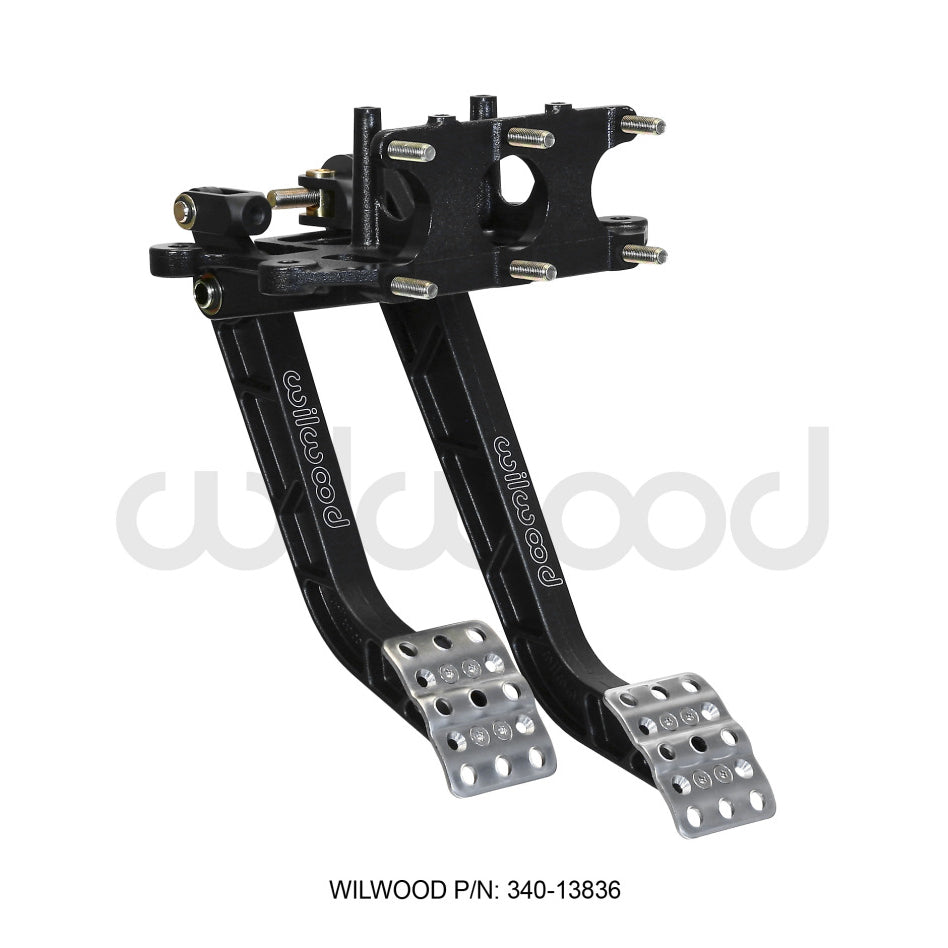

Wilwood Reverse Swing Mount Brake and Clutch Pedal
Wilwood Reverse Swing Mount Brake and Clutch Pedal
SKU:340-13836
In stock
Couldn't load pickup availability
The Wilwood Reverse Swing Mount Brake and Clutch Pedal is a high-performance pedal assembly designed to streamline brake and clutch operation in racing and custom applications. Constructed with a lightweight aluminum frame and reinforced I-beam style forged pedal arms, this unit offers durability and strength while minimizing weight. The assembly features a reverse-position master cylinder setup inside the firewall, optimizing space and driver ergonomics. The brake pedal has a 6.25:1 ratio arm for precise modulation, while the clutch pedal includes a shorter 5.1:1 ratio arm to provide additional clearance. Non-skid waffled pedal pads are included and can be laterally adjusted to suit driver preference or clearance needs, enhancing safety and control during aggressive driving.
Designed for custom and race vehicle builds, this swing mount pedal assembly is suitable for a variety of applications where space efficiency and performance are critical. It integrates both brake and clutch functions into a single, compact unit, making it ideal for race cars, street rods, and track vehicles. The reverse mounting configuration allows for flexible installation options, with master cylinders positioned inside the firewall for a clean look and improved weight distribution. This assembly is a direct replacement or upgrade for traditional pedal setups, offering improved pedal feel and adjustability. Suitable for use in vehicles with custom firewall configurations, it provides reliable performance for street, track, or off-road use.
Share
Overview
Overview
This swinging mount pedal assembly combines the brake and clutch pedals in one unit with the master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged pedal arms. The brake pedal uses a 6.25:1 ratio arm, but with a shorter 5.1:1 ratio arm on the clutch pedal for additional clearance when necessary. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size. .
Wilwood is a leading manufacturer of high-performance brake systems and components to fit a wide range of track and street applications. They offer everything from individual components like rotors, calipers, and pads to complete bolt-on kits.
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motorsports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 320 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment to heavy-duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
