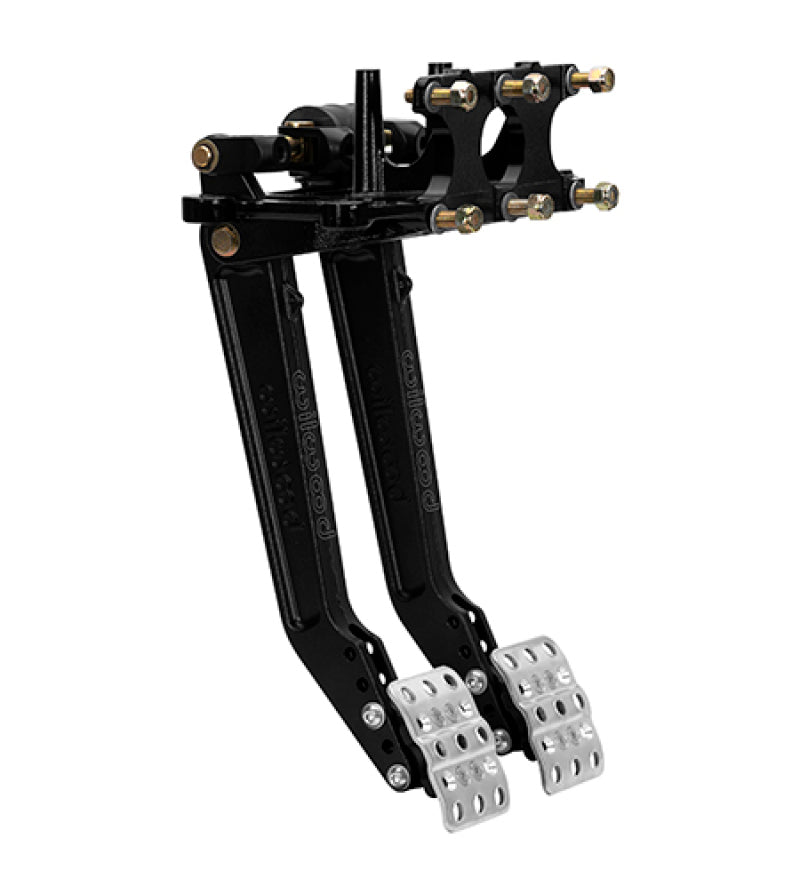

Wilwood Reverse Swing Mount Brake and Clutch Pedal - Adjustable Ratio

Universal Fitment

Part #: 340-16385

Overview

The Wilwood Reverse Swing Mount Brake and Clutch Pedal assembly is a precision-engineered solution designed for drivers seeking enhanced pedal feel and customizable brake bias control. This adjustable ratio balance bar pedal combo features a reverse swing hanging assembly that integrates both brake and clutch pedals into a compact, durable unit. Ideal for performance enthusiasts, racers, and custom vehicle builders, this pedal assembly offers superior control and comfort for a wide range of applications.

Whether you are upgrading your race car, building a custom project, or improving your vehicle’s pedal response, the Wilwood pedal assembly provides a versatile and reliable platform. You’ll benefit from adjustable pedal ratios, fine-tuned brake bias, and ergonomic pedal positioning that can be tailored to your driving style and preferences.

Key Features

This pedal assembly combines innovative design with robust construction to deliver precise control and adjustability. Key features include:

• Adjustable pedal ratio with three settings: 5.50, 5.88, and 6.25:1, allowing you to select the ideal balance between pedal feel and effort.
• Reverse swing hanging assembly design that optimizes pedal travel and driver ergonomics.
• Integrated clutch master cylinder and two brake master cylinder mounting points for a complete pedal solution.
• Adjustable balance bar for front-to-rear brake bias fine tuning, enabling precise brake system customization.
• Non-skid waffled pedal pads that provide excellent grip and safety under all driving conditions.
• Lateral adjustment of pedal pads from 3 to 5 inches on center, allowing you to set pedal spacing for maximum comfort and control.
• Heavy-duty construction designed to withstand rigorous use in performance and racing environments.

Construction & Design

The Wilwood Reverse Swing Mount Pedal assembly is crafted from high-quality materials to ensure durability and consistent performance. The reverse swing design reduces pedal effort while maintaining a natural feel, improving driver confidence and control. The assembly’s robust frame supports multiple master cylinders, simplifying installation and integration into your vehicle’s hydraulic system.

Pedal heads are vertically adjustable, enabling you to fine-tune the pedal ratio to suit your driving style. This adjustability allows for a more responsive brake pedal or a lighter clutch pedal feel, depending on your needs. The non-slip pedal pads are designed for safety and comfort, with lateral adjustability to accommodate different foot sizes and driver preferences.

Installation & Fitment

This pedal assembly is designed for universal fitment in custom and race vehicles where a reverse swing mount pedal setup is desired. It mounts securely to the vehicle’s firewall or pedal box and accommodates a clutch master cylinder plus two brake master cylinders for dual-circuit brake systems.

No cutting, drilling, or special tuning is required for installation when used with compatible master cylinders and mounting points. The adjustable features allow for easy adaptation to various vehicle configurations and driver ergonomics.

• Mounts clutch and two brake master cylinders
• Adjustable pedal spacing and ratio for personalized setup
• Designed for reverse swing hanging pedal applications

What's Included

• Complete reverse swing mount pedal assembly with brake and clutch pedals
• Adjustable balance bar for brake bias tuning
• Non-skid waffled pedal pads with lateral adjustment capability
• Hardware for master cylinder mounting

Ideal For

This Wilwood pedal assembly is ideal for:

• Race cars requiring precise brake bias adjustment and pedal feel customization
• Custom vehicle builds needing a compact, adjustable pedal solution
• Performance enthusiasts seeking improved pedal ergonomics and control
• Drivers who want to tailor pedal ratios for comfort and responsiveness
