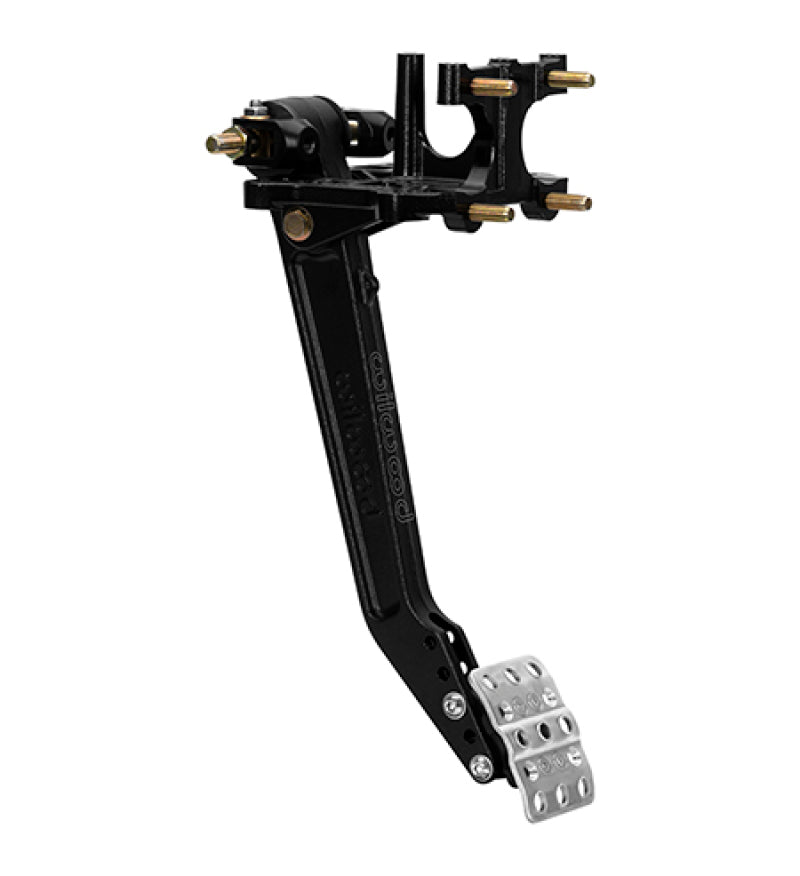

Wilwood Reverse Swing Mount Brake Pedal - Adjustable Ratio

Universal Fitment for Performance and Racing Applications

Part #: 340-16387

Overview

The Wilwood Reverse Swing Mount Brake Pedal with Adjustable Ratio is a precision-engineered component designed to enhance brake pedal feel and control for performance enthusiasts and racers. This pedal assembly features a reverse swing hanging design that optimizes pedal travel and ergonomics, providing a more natural and responsive braking experience. Ideal for custom race cars, kit cars, and high-performance street vehicles, this pedal system allows drivers to fine-tune their brake bias and pedal ratio to match their driving style and vehicle setup.

Whether you are building a dedicated race car or upgrading your street machine, the Wilwood adjustable brake pedal offers superior adjustability and craftsmanship. It delivers improved pedal modulation and reduced effort, helping you maintain confidence and control under demanding driving conditions.

Key Features

This brake pedal assembly combines innovative design with durable materials to deliver reliable performance and adjustability:

• Adjustable pedal ratio with three settings: 5.50, 5.88, and 6.25:1, allowing you to customize pedal feel and leverage for more precise braking control.
• Reverse swing hanging pedal design that optimizes pedal travel and ergonomics, enhancing driver comfort and response.
• Dual master cylinder mounting capability, enabling installation of two brake master cylinders for front and rear brake circuits.
• Adjustable balance bar integrated into the assembly for fine-tuning front-to-rear brake bias, critical for performance tuning and safety.
• Lightweight yet strong aluminum frame construction that reduces weight without compromising durability or rigidity.
• Non-skid waffled pedal pad that provides excellent grip and can be laterally adjusted up to ½ inch in either direction to suit driver preference and foot positioning.
• High-strength reinforcement in key stress areas to ensure long-lasting reliability under racing or spirited driving conditions.
• Precision-machined components for smooth operation and consistent pedal feel.

Construction & Design

The Wilwood Reverse Swing Mount Brake Pedal is crafted from high-quality aluminum alloy, offering an excellent strength-to-weight ratio. The pedal’s reverse swing design places the pivot point behind the pedal face, which reduces the pedal’s overall travel distance and improves ergonomics for the driver. This design is particularly favored in race cars where pedal placement and response are critical.

The adjustable pedal head allows vertical positioning to achieve the desired pedal ratio, giving you control over the mechanical advantage and pedal effort. The assembly’s balance bar is engineered for smooth, precise adjustment of brake bias, allowing you to dial in the perfect front-to-rear braking distribution for your vehicle’s setup and track conditions.

Attention to detail is evident in the non-skid waffled pedal pad, which not only enhances grip but also offers lateral adjustability to accommodate different driver foot sizes and preferences. The entire assembly is designed for durability and consistent performance, even under the rigors of competitive motorsports.

Installation & Fitment

This brake pedal assembly is designed for universal fitment in custom and race vehicles where a reverse swing mount pedal is desired. It mounts securely to the chassis or pedal box and accommodates two master cylinders for dual-circuit brake systems. The adjustable features allow for precise setup without the need for complex modifications.

No cutting, drilling, or special tuning is required for installation when used with compatible master cylinders and mounting points. The pedal’s modular design facilitates straightforward assembly and adjustment, making it suitable for both professional race shops and experienced DIY builders.

What's Included

• Reverse swing mount brake pedal assembly with adjustable pedal ratio
• Adjustable balance bar for front-to-rear brake bias tuning
• Non-skid waffled pedal pad with lateral adjustment capability
• Hardware for mounting two brake master cylinders
• Installation instructions

Ideal For

• Race car builders seeking precise brake pedal control and adjustability
• Performance enthusiasts upgrading brake feel and response
• Custom and kit car projects requiring a versatile pedal assembly
• Drivers who want to fine-tune brake bias for improved handling and safety
• Applications where lightweight and durable pedal components are essential
