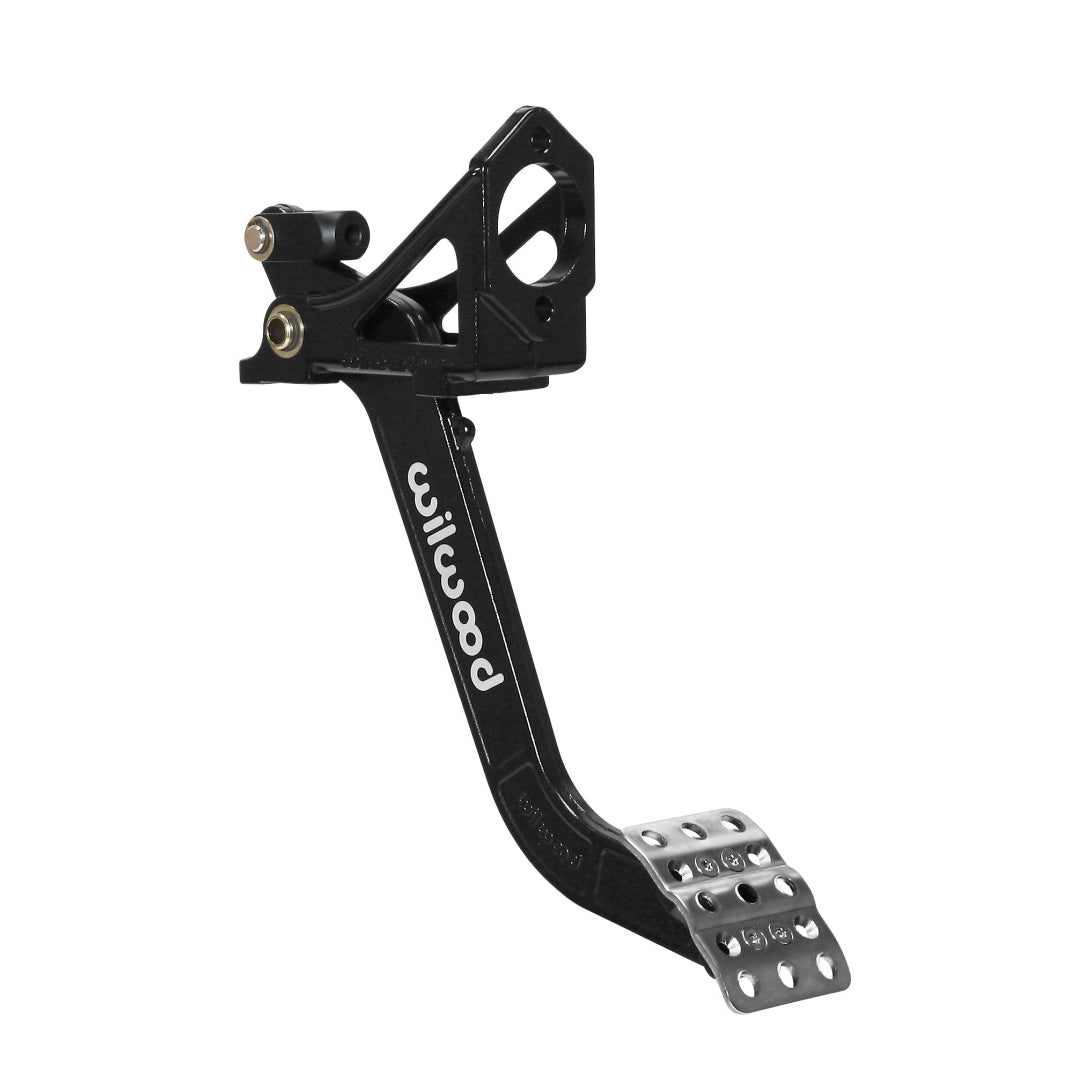

Wilwood Reverse Swing Mount Clutch / Brake Pedal

Universal Fitment

Part #: 340-13574

Overview

The Wilwood Reverse Swing Mount Clutch / Brake Pedal is a high-performance pedal assembly designed for racing and custom automotive applications. Crafted with precision, this swinging mount pedal features a lightweight aluminum frame and a reinforced I-Beam style forged 6:1 ratio pedal arm, providing durability and reliable response under demanding conditions. Its versatile design allows for mounting a single brake or clutch master cylinder in a reverse position inside the firewall, making it ideal for race cars, kit cars, and custom builds where space and configuration flexibility are critical. The non-skid waffled pedal pad enhances driver control and comfort, while the lateral adjustment feature ensures optimal positioning for driver preference and clearance. Compatible with Wilwood vertical mount flange master cylinders, this pedal assembly supports a wide range of hydraulic setups, with adapters available for horizontal mount flange cylinders.

Key Features

This pedal assembly combines innovative design with practical functionality to meet the needs of performance enthusiasts. Key features include:

• Lightweight aluminum construction for reduced weight and increased responsiveness
• Reinforced I-Beam forged pedal arm for high strength and durability
• Adjustable pedal pad for customized driver ergonomics and clearance
• Designed to mount a single master cylinder in a reverse position for optimized firewall clearance
• Compatible with Wilwood vertical mount flange master cylinders
• Supports tandem outlet master cylinders with optional adapters
• Non-skid, waffled pedal pad for enhanced pedal grip and control

Construction & Design

The pedal assembly features a lightweight aluminum frame that balances strength and weight savings, essential for performance applications. The forged I-Beam style pedal arm is engineered for high load capacity and longevity, ensuring consistent operation during intense driving conditions. The lateral adjustment mechanism allows for precise positioning, accommodating driver preferences and vehicle configurations. The non-skid pedal pad is designed to provide reliable foot grip, enhancing pedal feel and control.

Installation & Fitment

Installation involves mounting the pedal assembly inside the firewall, with compatibility for various master cylinder configurations. The design supports straightforward bolt-on installation, but verifying fitment with your specific vehicle and master cylinder setup is recommended. The assembly is intended for use with Wilwood master cylinders, with adapters available for different flange types.

What’s Included

The package includes the swing mount pedal assembly, mounting hardware, and instructions for installation. Additional adapters may be required for certain master cylinder configurations.

Ideal For

This pedal is ideal for race cars, custom builds, and performance vehicles where space-efficient, adjustable pedal control is essential. It is suitable for enthusiasts seeking a durable, high-quality pedal assembly that supports precise hydraulic setup and driver ergonomics.
