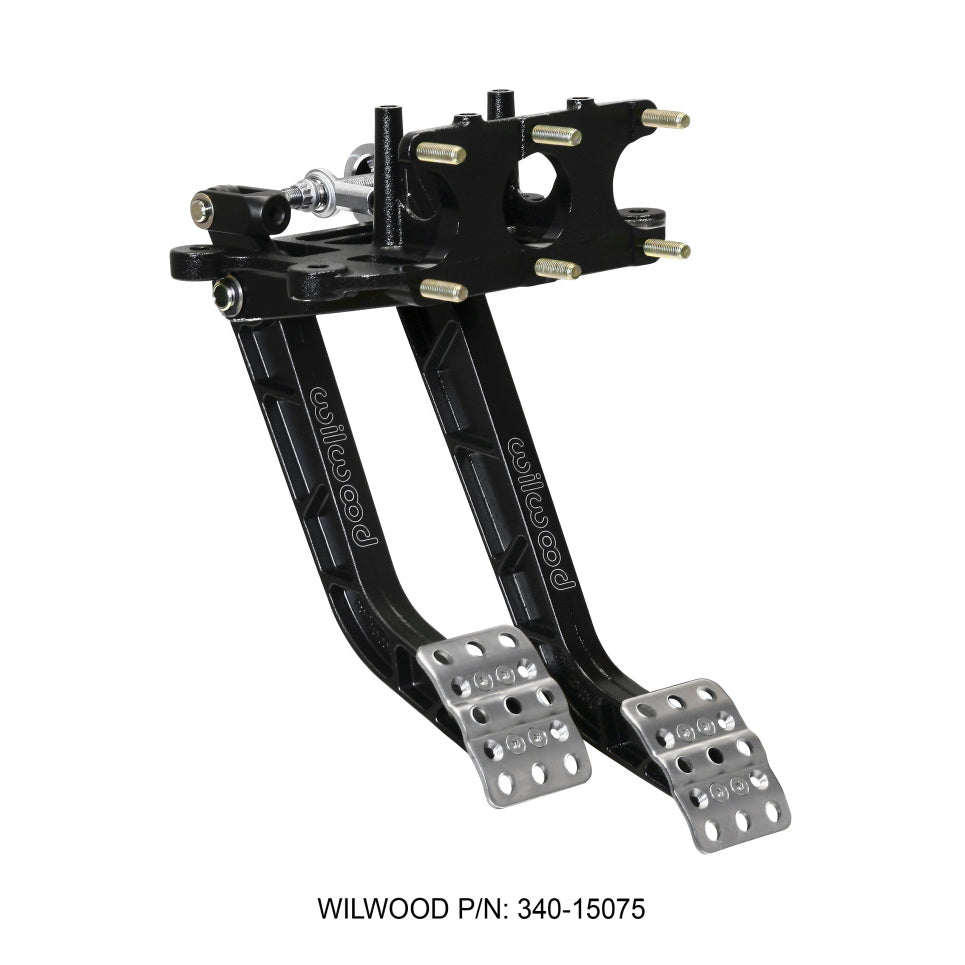

Wilwood Reverse Swing Mount Tru-Bar Brake and Clutch Pedal - 6.25:1 Brake - 5:1 Clutch
Wilwood Reverse Swing Mount Tru-Bar Brake and Clutch Pedal - 6.25:1 Brake - 5:1 Clutch
SKU:340-15075
In stock
Couldn't load pickup availability
The Wilwood Tru-Bar Reverse Swing Mount brake and clutch pedal set is a high-performance pedal assembly designed for race-prepped vehicles. Featuring a 6.25:1 brake ratio and a 5:1 clutch ratio, these pedals offer precise modulation and control essential for competitive driving. The Tru-Bar system employs a fixed trunnion bearing in the pedal arm and spherical rod-end bearing pushrod attachments, ensuring ultimate accuracy and adjustability. Constructed with a larger diameter 7/16-20 bar, the pedals provide increased strength and durability. This setup is ideal for drivers seeking enhanced pedal feel, consistent brake bias, and reliable performance under demanding conditions.
Designed to fit all Wilwood balance bar style pedals, the reverse swing mount configuration maintains compatibility with existing chassis and master cylinder mounting points. Suitable for a variety of race vehicles, these pedals are intended for track use, high-performance street applications, or any scenario requiring precise pedal control. Installation involves direct bolt-on mounting, utilizing the same chassis interface as other Wilwood pedals. The kit includes the pedal assembly with the Tru-Bar balance bar system, offering a robust upgrade for race cars and high-performance builds that demand superior pedal feel and adjustability.
Share
Overview
Overview
Wilwood's Tru-Bar balance bar system is now available in a Reverse Swing mount pedal with a 6.25:1 ratio and 5;1 clutch. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8" diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood's Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers.
Wilwood is a leading manufacturer of high-performance brake systems and components to fit a wide range of track and street applications. They offer everything from individual components like rotors, calipers, and pads to complete bolt-on kits.
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motorsports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 320 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment to heavy-duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
Product Descripton:
