Wilwood Reverse Swing Mount Tru-Bar Brake and Clutch Pedal - Adjustable Ratio

Universal Fitment for Performance and Racing Applications

Part #: 340-16386

Overview

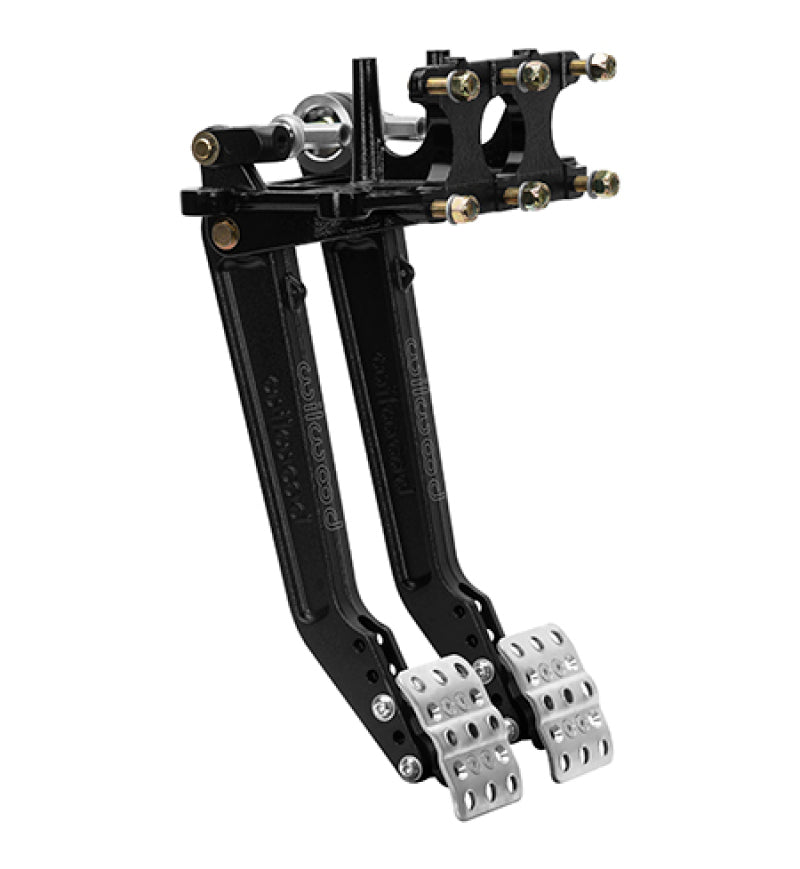

The Wilwood Reverse Swing Mount Tru-Bar Brake and Clutch Pedal assembly is a precision-engineered solution designed for drivers seeking enhanced pedal feel, adjustability, and control in their braking and clutch systems. This combo pedal setup features a reverse swing hanging assembly that optimizes pedal ergonomics and responsiveness, making it ideal for performance enthusiasts, racers, and custom vehicle builders.

Whether you’re upgrading a race car, a street performance vehicle, or a custom build, this pedal assembly offers a versatile and durable platform to improve your driving experience. The adjustable pedal ratio allows you to tailor the pedal effort and feedback to your preference, helping you achieve better modulation and confidence under braking and clutch engagement.

Wilwood’s reputation for high-quality braking components ensures that this pedal assembly not only enhances performance but also delivers reliable operation and long-lasting durability in demanding environments.

Key Features

This pedal assembly combines innovative design with robust construction to provide precise control and adjustability. Key features include:

• Adjustable pedal ratio with three settings: 5.50, 5.88, and 6.25:1, allowing you to customize pedal feel and effort according to your driving style and vehicle setup.
• Reverse swing hanging assembly design that improves pedal ergonomics and frees up space in the footwell area.
• Trunnion-based Tru-Bar balance bar with friction-free pivoting, enabling fine tuning of front-to-rear brake bias for optimal braking performance.
• Integrated mounting points for one clutch master cylinder and two brake master cylinders, simplifying installation and ensuring a compact, clean setup.
• Non-skid waffled pedal pads that provide excellent grip and safety, even in wet or slippery conditions.
• Lateral adjustment of pedal pads from 3 to 5 inches on center, allowing you to position the pedals for maximum comfort and control.
• Heavy-duty construction using high-quality materials designed to withstand the rigors of racing and spirited driving.
• Compatible with a wide range of master cylinder bore sizes and brake system configurations for versatile application.

Construction & Design

The Wilwood Reverse Swing Mount Tru-Bar pedal assembly is crafted with precision and durability in mind. The reverse swing design positions the pedals in a hanging configuration, which enhances driver ergonomics by providing a natural foot position and reducing fatigue during extended driving sessions.

The Tru-Bar balance bar is engineered with a trunnion pivot system that eliminates friction, allowing smooth and accurate adjustment of brake bias between the front and rear circuits. This feature is critical for fine-tuning braking performance on the track or during high-performance driving.

Pedal heads are constructed with a textured, waffled surface to maximize grip and safety, while the lateral adjustability of the pedal pads ensures that drivers can customize pedal spacing to suit their foot size and driving preferences. The assembly’s robust mounting points accommodate multiple master cylinders, streamlining installation and integration into custom brake and clutch systems.

Installation & Fitment

This pedal assembly is designed for universal fitment in performance and racing vehicles where a reverse swing mount is desired. It mounts securely to the firewall or pedal box using standard hardware and provides mounting locations for one clutch and two brake master cylinders.

No cutting, drilling, or special tuning is required for installation, making it a straightforward upgrade for custom builds or race cars. The adjustable pedal ratio and lateral pedal pad spacing allow you to tailor the setup to your specific vehicle and driving style without additional modifications.

• Reverse swing mount design for improved ergonomics
• Mounts clutch and two brake master cylinders
• Adjustable pedal ratio and pedal pad spacing
• No cutting, drilling, or special tuning required

What's Included

• Reverse swing hanging pedal assembly with adjustable Tru-Bar balance bar
• Brake and clutch pedal heads with non-skid waffled pads
• Mounting hardware for master cylinders
• Instructions for installation and adjustment

Ideal For

This Wilwood pedal assembly is ideal for:

• Performance enthusiasts seeking improved pedal feel and adjustability
• Race car builders requiring precise brake bias tuning and ergonomic pedal placement
• Custom vehicle projects needing a versatile and durable pedal solution
• Drivers who want to reduce pedal effort without sacrificing control
• Applications where space-saving reverse swing pedal design is preferred
