Wilwood Swing Mount Brake Pedal - Adjustable Ratio

Universal Fitment

Part #: 340-16379

Overview

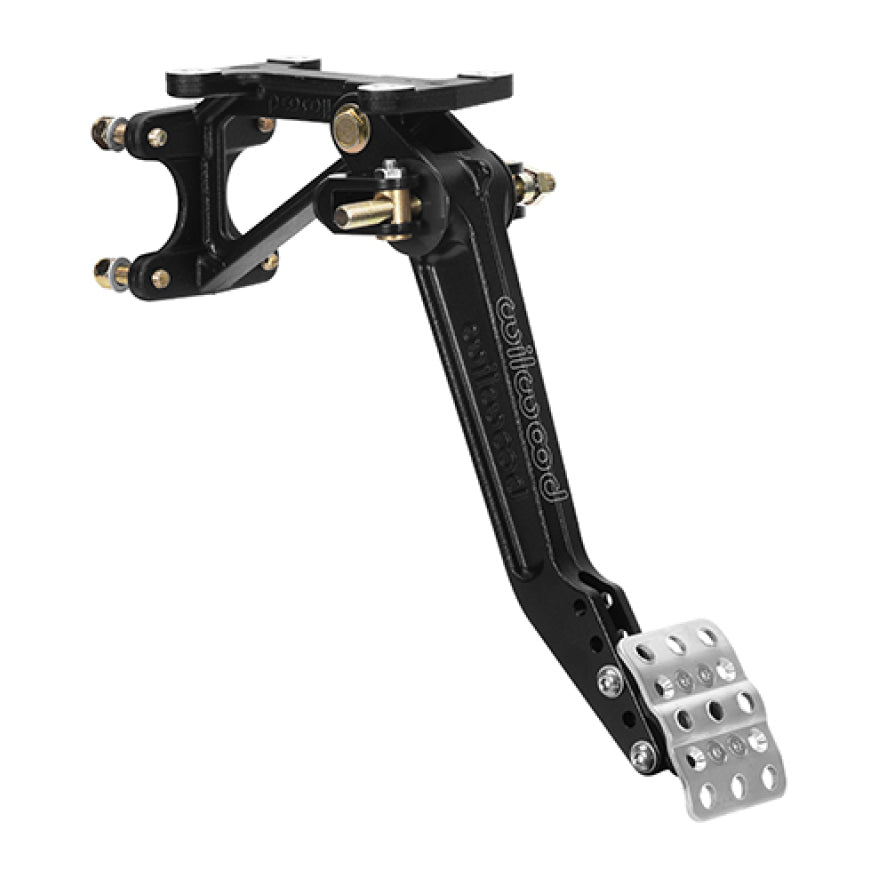

The Wilwood Swing Mount Brake Pedal with Adjustable Ratio is a precision-engineered component designed to enhance your vehicle’s braking performance and driver control. This pedal assembly features a forward swing hanging design that provides a natural and ergonomic pedal feel, making it ideal for both street and performance driving applications. Whether you are upgrading a custom build, a race car, or a street rod, this pedal system offers the adjustability and quality needed to optimize brake response and pedal effort.

Designed for enthusiasts who demand precise brake modulation and customizable pedal feel, the Wilwood Swing Mount Brake Pedal allows you to tailor the brake ratio to your driving style and vehicle setup. Its robust construction and thoughtful design ensure reliable operation and long-lasting durability under demanding conditions.

Key Features

This adjustable brake pedal assembly combines innovative design with high-quality materials to deliver superior performance and customization options.

• Adjustable pedal ratio with three settings: 6.25:1, 6.63:1, and 7.00:1, allowing you to balance pedal feel and effort according to your preference.
• Forward swing hanging assembly provides a smooth, natural pedal motion that enhances driver comfort and control.
• Includes an adjustable balance bar that mounts two brake master cylinders through the firewall, enabling fine tuning of front-to-rear brake bias for optimal braking performance.
• Non-skid waffled pedal pad designed for maximum grip and safety, reducing the risk of foot slippage during aggressive braking.
• Lateral adjustment of the pedal pad by ½ inch in either direction to accommodate different driver foot positions and preferences.
• Lightweight yet strong aluminum frame construction reduces overall weight without compromising strength or durability.
• Precision-machined components ensure smooth operation and consistent pedal feel over time.
• Compatible with a wide range of brake master cylinders and vehicle configurations, making it versatile for custom and performance applications.

Construction & Design

The Wilwood Swing Mount Brake Pedal is crafted from high-quality aluminum, providing an excellent strength-to-weight ratio that benefits both performance and durability. The forward swing hanging design is engineered to replicate a natural pedal motion, reducing driver fatigue and improving pedal feedback. The adjustable pedal head allows vertical positioning to achieve the desired leverage ratio, giving you control over the balance between pedal travel and braking force.

The assembly includes a robust balance bar that securely mounts two master cylinders through the firewall, facilitating precise front-to-rear brake bias adjustments. This feature is particularly valuable for drivers who require fine-tuned brake distribution for different track conditions or vehicle setups. The pedal pad’s non-slip waffle pattern enhances safety by maintaining consistent foot contact, even in wet or demanding environments.

Installation & Fitment

The Wilwood Swing Mount Brake Pedal is designed for straightforward installation in custom and performance vehicles. It mounts securely using existing firewall provisions for master cylinders, and the adjustable balance bar simplifies the integration of dual master cylinders. No cutting, drilling, or special tuning is required for most applications, making it a convenient upgrade for builders and racers alike.

• Forward swing hanging assembly mounts through the firewall for a clean, factory-style installation.
• Adjustable pedal pad position allows fine-tuning for driver comfort without additional modifications.
• Compatible with a variety of master cylinder sizes and configurations.

What's Included

• Adjustable ratio swing mount brake pedal assembly with aluminum frame
• Adjustable balance bar for dual master cylinder mounting
• Non-skid waffled pedal pad with lateral adjustment capability
• All necessary mounting hardware and linkage components
• Installation instructions

Ideal For

This brake pedal assembly is ideal for:

• Performance enthusiasts seeking customizable pedal feel and brake bias control
• Custom car builders and hot rod projects requiring a versatile and adjustable pedal system
• Track and road racers who need precise brake modulation and bias tuning
• Street drivers wanting improved pedal response and comfort
• Anyone upgrading from a stock pedal assembly to a more refined and adjustable solution
