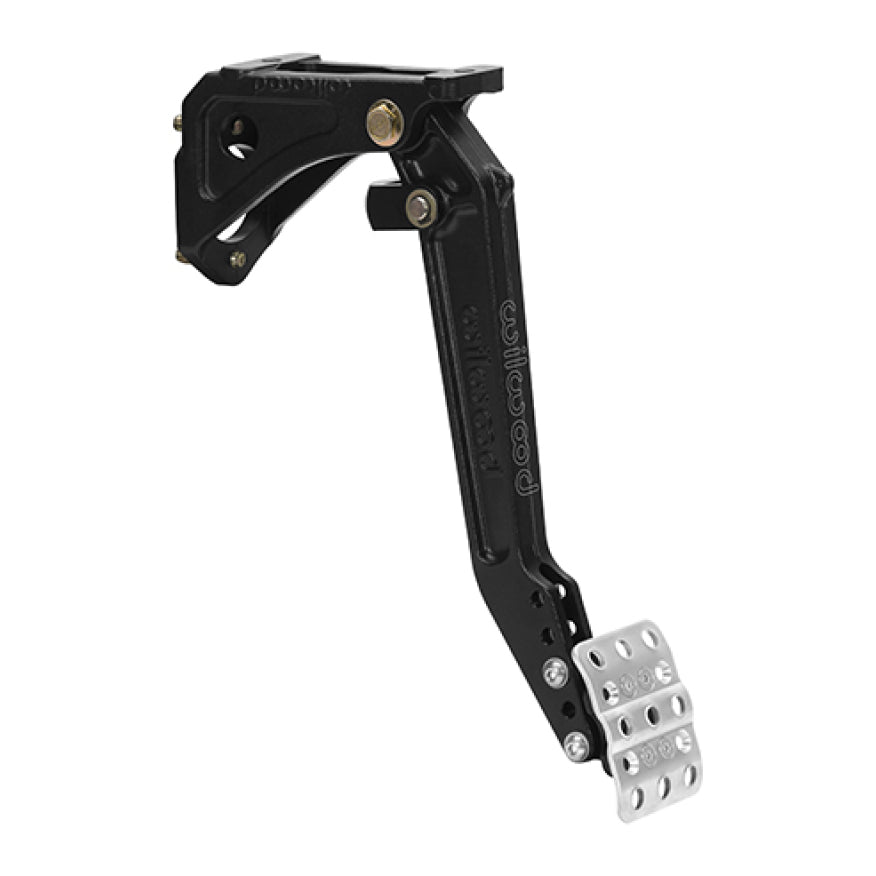

Wilwood Swing Mount Clutch/Brake Pedal - Adjustable Ratio

Universal Fitment

Part #: 340-16381

Overview

The Wilwood Swing Mount Clutch/Brake Pedal with Adjustable Ratio is a precision-engineered pedal assembly designed for drivers seeking enhanced control and customizable pedal feel. This single clutch pedal features a forward swing hanging design that optimizes pedal travel and ergonomics for a more natural driving experience. Whether you are building a race car, restoring a classic, or upgrading your street machine, this pedal assembly offers the adjustability and durability to meet your needs.

Ideal for performance enthusiasts and professional drivers alike, the adjustable ratio allows you to tailor the pedal effort and feedback to your personal preference or specific driving conditions. The pedal head can be vertically adjusted to three distinct ratios—6.25, 6.63, or 7.00:1—giving you the flexibility to increase pedal feel or reduce effort depending on your setup. This level of customization helps improve modulation and control during spirited driving or track use.

Constructed with lightweight yet robust materials, the Wilwood pedal assembly balances strength and responsiveness. The non-skid waffled pedal pad ensures confident foot placement, while lateral adjustment of the pedal pad by half an inch in either direction allows for fine-tuning to driver ergonomics. This pedal is engineered to provide consistent, reliable performance for demanding applications.

Key Features

The Wilwood Swing Mount Clutch/Brake Pedal combines thoughtful design and high-quality materials to deliver superior performance and adjustability. Key features include:

• Adjustable pedal ratio with three settings (6.25, 6.63, and 7.00:1) to customize pedal feel and effort.
• Forward swing hanging assembly design for smooth, natural pedal motion and improved ergonomics.
• Lightweight aluminum frame construction reduces weight without sacrificing strength.
• High-strength reinforced I-beam style forged pedal arms for exceptional durability and rigidity.
• Non-skid waffled pedal pad enhances foot grip and control under all conditions.
• Lateral adjustment of the pedal pad by ½ inch in either direction to suit driver preference.
• Pin and clevis pushrod attachment system minimizes misalignment angle, ensuring precise pedal actuation and reducing wear.
• Designed for easy integration into custom and retrofit pedal assemblies.

Construction & Design

The pedal assembly features a lightweight aluminum frame that offers a strong yet low-mass foundation, helping to reduce overall vehicle weight and improve pedal responsiveness. The pedal arms are forged with a reinforced I-beam profile, providing superior strength and resistance to flex under heavy use. This construction ensures long-lasting durability even in high-stress racing or performance driving environments.

The forward swing hanging design allows the pedal to pivot smoothly on a robust mounting point, delivering a natural pedal travel arc that enhances driver comfort and control. The pedal head’s vertical adjustability is engineered with precision, allowing quick and secure changes to the pedal ratio without compromising structural integrity.

Additionally, the non-skid waffled surface on the pedal pad is designed to maintain consistent foot traction, reducing the risk of slippage during aggressive driving. The lateral adjustment capability of the pedal pad provides further ergonomic customization, enabling drivers to position the pedal exactly where it feels most comfortable.

Installation & Fitment

The Wilwood Swing Mount Clutch/Brake Pedal is designed for universal fitment and can be integrated into a wide range of pedal boxes and custom pedal assemblies. The pin and clevis pushrod attachment system simplifies installation by ensuring minimal misalignment, which helps maintain smooth pedal operation and reduces mechanical wear.

No cutting, drilling, or special tuning is required for installation when used with compatible pedal assemblies and mounting points. This makes it an excellent choice for both professional builders and enthusiasts upgrading their pedal setup.

• Forward swing mounting for straightforward installation.
• Compatible with standard pushrod attachment systems.
• Adjustable pedal ratio and pad position for personalized fitment.

What’s Included

• Adjustable ratio single clutch pedal assembly with forward swing hanging mount.
• Non-skid waffled pedal pad with lateral adjustment capability.
• Pin and clevis pushrod attachment hardware.
• All necessary mounting components for installation.

Ideal For

This pedal assembly is perfect for:

• Performance enthusiasts seeking customizable pedal feel and improved control.
• Race car builders requiring durable, lightweight pedal components.
• Street drivers looking to upgrade their clutch pedal for better ergonomics and modulation.
• Custom and retrofit projects needing a versatile, adjustable pedal solution.
