Wilwood Swing Mount Tandem Brake and Offset Clutch Pedal

Universal Fitment for Performance and Custom Applications

Part #: 340-16833

Overview

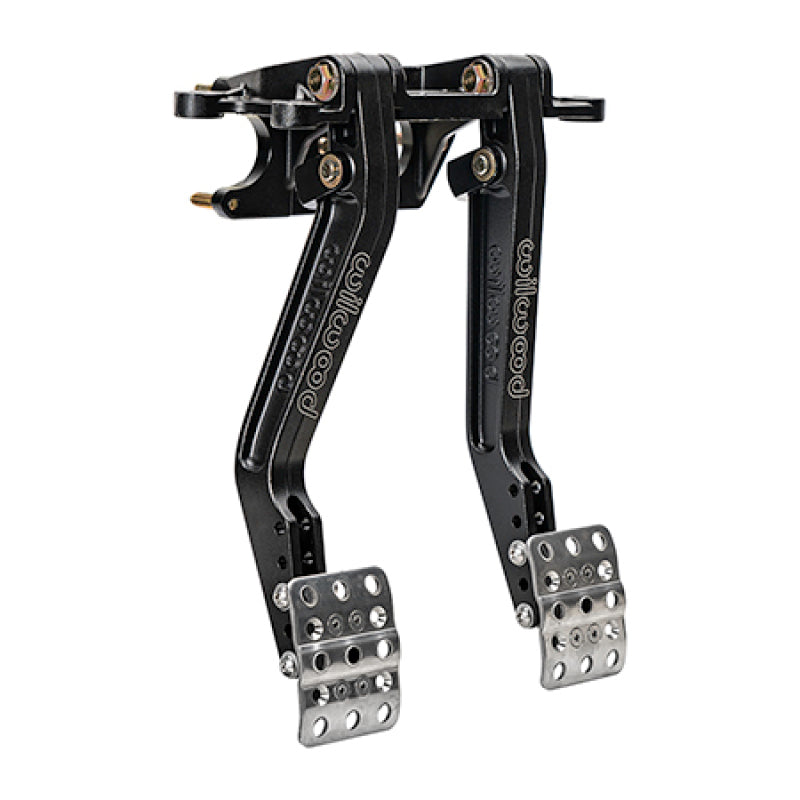

The Wilwood Swing Mount Tandem Brake and Offset Clutch Pedal assembly is a precision-engineered pedal system designed for performance vehicles and custom builds requiring a reliable and adjustable pedal setup. This assembly combines an adjustable ratio brake pedal with an offset clutch pedal in a forward swing hanging design, providing enhanced driver control and comfort. Ideal for racers, hot rod builders, and enthusiasts seeking improved pedal feel and ergonomics, this pedal assembly offers versatility and durability in one compact package.

Whether you are upgrading your vehicle’s braking and clutch controls for track use or custom street applications, this Wilwood pedal assembly delivers a refined driving experience with its adjustable features and robust construction. You’ll benefit from precise pedal ratios, customizable pedal spacing, and a lightweight yet strong frame that supports consistent performance and driver confidence.

Key Features

This pedal assembly is thoughtfully designed to meet the needs of performance drivers and fabricators. Key features include:

• Adjustable brake pedal ratio with three settings: 5.50, 5.88, and 6.25:1, allowing you to tailor pedal effort and feel to your preference.
• Offset clutch pedal positioned for ergonomic access and improved driver comfort in tight cockpit environments.
• Forward swing hanging assembly design that mounts through the firewall, optimizing space and pedal travel.
• Lightweight aluminum frame construction combining strength and reduced weight for durability without unnecessary bulk.
• High-strength reinforced I-beam pedal arms engineered to withstand rigorous use and provide consistent pedal feedback.
• Non-skid waffled pedal pads that enhance grip and safety, reducing the risk of foot slippage during spirited driving.
• Lateral adjustment of pedal pads from 5 to 7 inches on center, enabling customization of pedal spacing to suit individual driver preferences.
• Integrated mounting points for both clutch master cylinder and tandem brake master cylinder, simplifying installation and ensuring secure fitment.

Construction & Design

The Wilwood pedal assembly features a robust aluminum frame that balances lightweight design with high structural integrity. The use of reinforced I-beam pedal arms enhances strength and rigidity, ensuring that the pedals maintain their shape and responsiveness under heavy use. The forward swing hanging design allows the assembly to be mounted through the firewall, saving space in the driver’s footwell and providing a natural pedal motion.

The adjustable brake pedal ratio is achieved through vertical adjustment of the pedal head, allowing drivers to select from three distinct leverage settings. This flexibility enables fine-tuning of pedal effort and feel, whether you prefer a firmer pedal for track driving or a lighter touch for street use. The offset clutch pedal is positioned to optimize ergonomics and reduce driver fatigue during extended driving sessions.

Installation & Fitment

This pedal assembly is designed for universal fitment in custom and performance vehicles where a tandem brake and offset clutch pedal setup is required. It mounts through the firewall and accommodates both clutch and tandem brake master cylinders, streamlining the installation process. The assembly uses factory-style mounting points for master cylinders, ensuring compatibility with a wide range of setups.

No cutting, drilling, or special tuning is required for installation, making it a straightforward upgrade for builders and racers. The lateral adjustment of pedal pads allows you to tailor the pedal spacing after installation to achieve optimal driver comfort and control.

• Mounts through firewall with integrated master cylinder brackets
• Adjustable pedal spacing for personalized fit
• No modifications or special tuning necessary

What’s Included

• Complete swing mount pedal assembly with adjustable brake and offset clutch pedals
• Non-skid waffled pedal pads
• Mounting brackets for clutch and tandem brake master cylinders
• All necessary hardware for assembly and installation
• Installation instructions

Ideal For

This Wilwood pedal assembly is perfect for:

• Performance enthusiasts upgrading pedal feel and ergonomics
• Custom vehicle builders requiring a compact, adjustable pedal setup
• Racers seeking precise brake and clutch control with adjustable leverage
• Hot rod and street rod projects needing a durable and lightweight pedal assembly
• Drivers who want customizable pedal spacing for enhanced comfort and control
