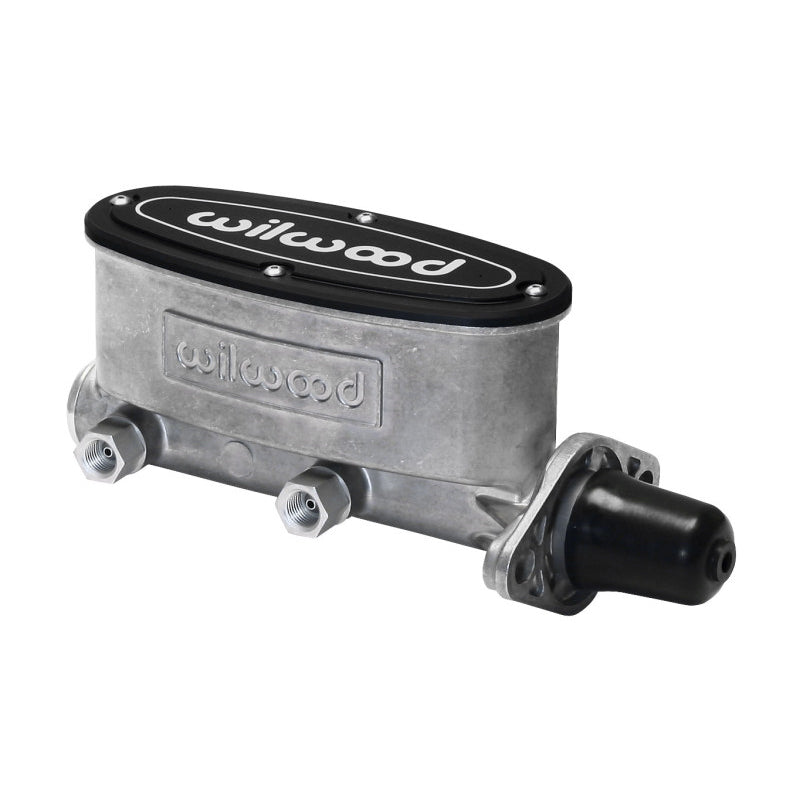

Wilwood Tandem Chamber Master Cylinder - 1.00" Bore
Wilwood Tandem Chamber Master Cylinder - 1.00" Bore
SKU:260-8555
In stock
Couldn't load pickup availability
The Wilwood Tandem Aluminum Master Cylinder with a 1.00-inch bore is a high-performance brake component designed for versatile applications. Crafted from durable aluminum, this master cylinder is suitable for both manual and power-assisted brake systems, offering reliable modulation and consistent braking performance. Its construction ensures resistance to corrosion and heat, making it ideal for demanding driving conditions. The 1.00-inch bore size provides a balanced pedal feel and improved braking response, especially in custom or upgraded brake setups. This model is available in multiple finishes, including plain, ball burnished, and black e-coat, allowing for customization and corrosion resistance.
Designed for a wide range of vehicles and brake configurations, this master cylinder can be mounted in various applications requiring a 1.00-inch bore size. It is suitable for use in manual or power brake systems, including those with vacuum or hydraulic assist. The master cylinder does not include a pushrod, which allows for compatibility with existing or custom pedal setups. It is an ideal upgrade for performance street or track vehicles, providing precise brake control and durability. The kit includes the master cylinder and necessary mounting hardware for straightforward installation.
Share
Overview
Overview
Wilwood's Tandem Aluminum Master Cylinder is available in 2 bore sizes 1.00" and 1-1/8"; and 3 finishes, plain, ball burnished and black e-coat. 7/8" bore master cylinders are designed primarily for manual applications and include a pushrod. The 1" bore can be used in manual and power assisted applications and does not come with a pushrod. The 1-1/8" bore is designed for use primarily with power brake applications, either from vacuum assist or hydraulic assist systems. They're designed for mount flanges from 3.22" to 3.40", common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10" with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a our combination proportioning valve kit, which includes brackets and stainless lines specifically for use with these master cylinders, see PN 260-13190, or 220-13189 for retrofit kit.
Wilwood is a leading manufacturer of high-performance brake systems and components to fit a wide range of track and street applications. They offer everything from individual components like rotors, calipers, and pads to complete bolt-on kits.
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motorsports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 320 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment to heavy-duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
