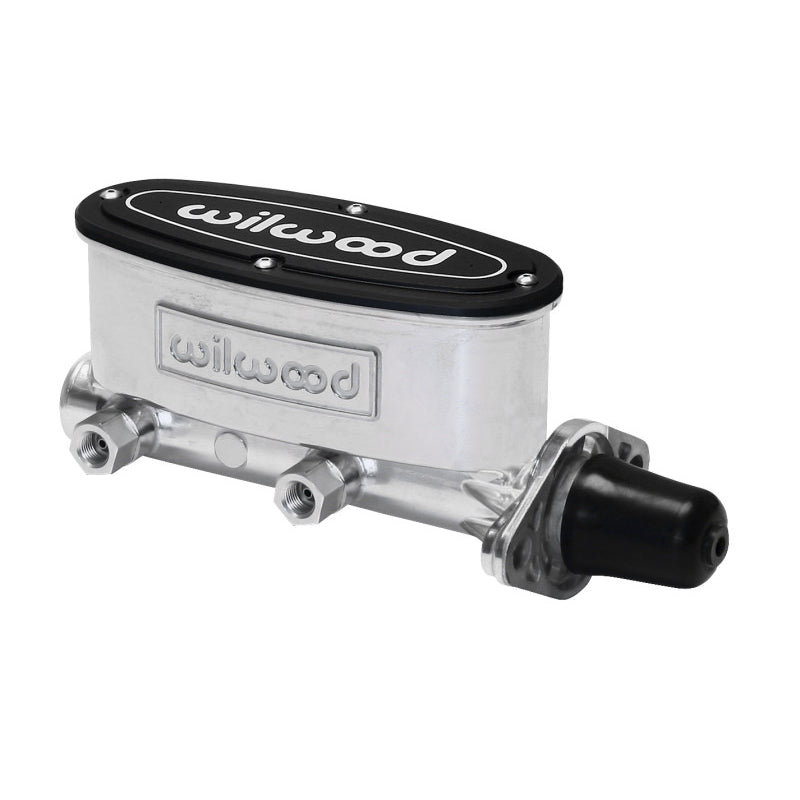

Wilwood Tandem Chamber Master Cylinder (Polished Finish) - 1.00" Bore
Wilwood Tandem Chamber Master Cylinder (Polished Finish) - 1.00" Bore
SKU:260-8555-P
Out of stock
Couldn't load pickup availability
The Wilwood Tandem Chamber Master Cylinder is a high-performance aluminum component designed to enhance braking systems in various applications. Available in bore sizes of 1.00" and 1-1/8", this master cylinder offers versatility for both manual and power-assisted brake setups. The 1.00" bore is suitable for manual applications and does not include a pushrod, providing a reliable, durable solution. The 1-1/8" bore is optimized for power brake systems, whether vacuum or hydraulic assisted, delivering increased braking force and modulation. Constructed from polished aluminum, it combines lightweight strength with corrosion resistance, ensuring long-term performance and a clean aesthetic.
This master cylinder is compatible with a wide range of vehicles and mounting configurations, making it suitable for street, track, or performance applications. It is designed for easy bolt-on installation, fitting standard mounting patterns for various brake setups. The product does not include a pushrod for the 1" bore version, allowing customization based on specific vehicle requirements. Ideal for custom builds, restorations, or upgrades, this master cylinder provides consistent, responsive braking performance. It is suitable for use in manual or power brake systems, enhancing overall safety and control.
Share
Overview
Overview
Wilwood's Tandem Aluminum Master Cylinder is available in 2 bore sizes 1.00" and 1-1/8"; and 3 finishes, plain, ball burnished and black e-coat. 7/8" bore master cylinders are designed primarily for manual applications and include a pushrod. The 1" bore can be used in manual and power assisted applications and does not come with a pushrod. The 1-1/8" bore is designed for use primarily with power brake applications, either from vacuum assist or hydraulic assist systems. They're designed for mount flanges from 3.22" to 3.40", common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10" with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a our combination proportioning valve kit, which includes brackets and stainless lines specifically for use with these master cylinders, see PN 260-13190, or 220-13189 for retrofit kit.
Wilwood is a leading manufacturer of high-performance brake systems and components to fit a wide range of track and street applications. They offer everything from individual components like rotors, calipers, and pads to complete bolt-on kits.
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motorsports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 320 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment to heavy-duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
