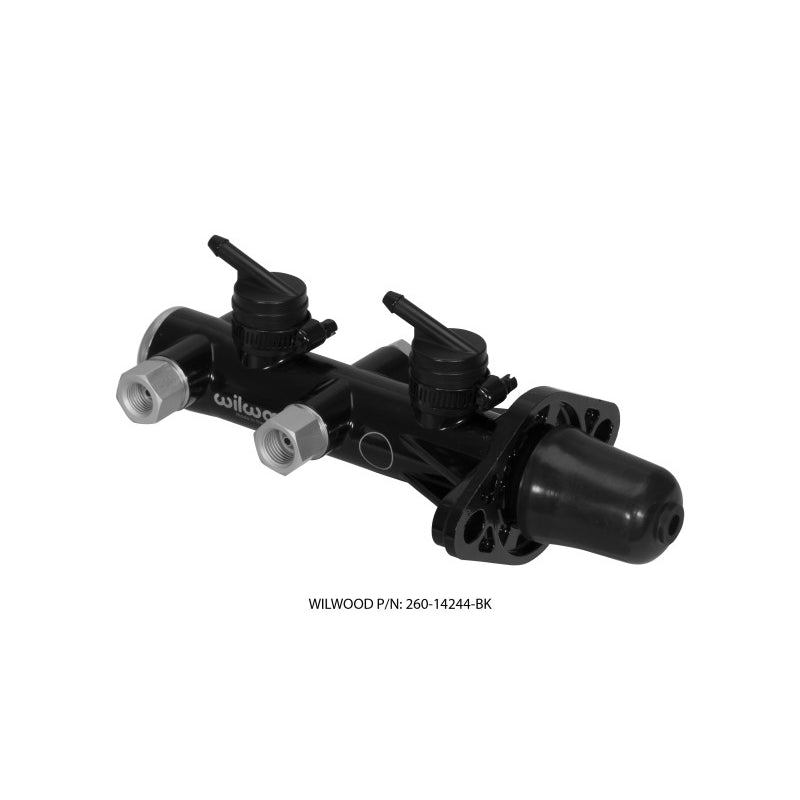

Wilwood Tandem M/C Remote Mount 1.125" Bore Black
Wilwood Tandem M/C Remote Mount 1.125" Bore Black
SKU:260-14244-BK
In stock
Couldn't load pickup availability
The Wilwood Tandem Remote Mount Master Cylinder is a high-performance brake component designed for versatile braking systems. Available in two bore sizes—1.00 inch and 1-1/8 inch—this master cylinder offers options tailored to manual and power-assisted applications. The 1-inch bore is suitable for manual and power brakes without a pushrod, providing reliable modulation and consistent braking feel. The 1-1/8 inch bore is optimized for power brake systems, whether from vacuum or hydraulic assist, delivering increased braking force. Constructed with durable materials and finished in black e-coat or ball burnished options, this master cylinder ensures longevity and resistance to corrosion. Its design emphasizes performance, durability, and compatibility with various brake setups, making it a versatile choice for custom or upgraded braking systems.
Designed for applications with mount flanges measuring from 3.22 inches to 3.40 inches, the Wilwood Tandem Master Cylinder fits a range of vehicles and chassis configurations. It is primarily intended for use in power brake systems, including those with vacuum or hydraulic assist, making it suitable for street, track, or performance driving. The product does not include a pushrod, allowing for customization based on specific installation requirements. This remote mount configuration simplifies installation in tight or custom engine bays. The kit includes the master cylinder body and mounting hardware, with compatibility across various vehicle makes and models that require a tandem remote master cylinder for enhanced braking performance.
Share
Overview
Overview
Wilwood's Remote Tandem Master Cylinder is available in 2 bore sizes 1.00â€_x009d_ and 1-1/8â€_x009d_; and two finishes: ball burnished and black e-coat. The 1â€_x009d_ bore can be used in manual and power assisted applications and does not come with a pushrod. The 1-1/8â€_x009d_ bore is designed for use primarily with power brake applications, either from vacuum assist or hydraulic assist systems. They’re designed for mount flanges from 3.22â€_x009d_ to 3.40â€_x009d_, common measurements for most domestic cars and trucks from the mid-1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.12â€_x009d_ with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer our combination proportioning valve kit, which includes brackets and stainless lines specifically for use with these master cylinders, see PN 260-14248 for a retrofit kit.
Wilwood is a leading manufacturer of high-performance brake systems and components to fit a wide range of track and street applications. They offer everything from individual components like rotors, calipers, and pads to complete bolt-on kits.
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motorsports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 320 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment to heavy-duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
