Wilwood Tandem Master Cylinder - 0.938 in Bore - Black
Wilwood Tandem Master Cylinder - 0.938 in Bore - Black
SKU:260-14157-BK
Out of stock
Couldn't load pickup availability

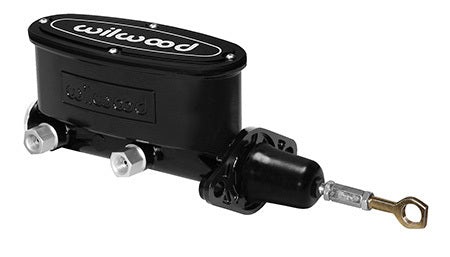

The Wilwood Tandem Aluminum Master Cylinder is a high-performance brake component designed for classic Mustangs, specifically models from 1964 to 1972. Featuring a 15/16-inch bore, this master cylinder provides precise hydraulic control and improved braking response. Constructed from durable aluminum with a black e-coat finish, it offers resistance to corrosion and a sleek appearance. The inclusion of the correct pushrod ensures compatibility with factory brake pedals, making it an ideal upgrade for manual brake systems. Its dual outlet ports on either side of the bore facilitate flexible plumbing options, enhancing brake system efficiency and reliability. This master cylinder is engineered to deliver consistent fluid flow and pedal feel, supporting both street and track applications.
Designed to fit factory mount flanges from 3.22 to 3.40 inches, this master cylinder is compatible with vehicles that utilize the original manual brake setup. It is suitable for use in street performance or restoration projects where improved braking performance is desired. Installation involves direct bolt-on replacement of the factory unit, with no additional modifications required. The kit includes the master cylinder and pushrod, ensuring a straightforward upgrade process. Ideal for enthusiasts seeking enhanced braking power and durability, this Wilwood master cylinder provides a reliable, high-quality solution for classic Mustang brake systems.
Share
Overview
Overview
Wilwood's Tandem Aluminum Master Cylinder for Mustangs comes with the correct pushrod; a 15/16" bore, and is available in 3 finishes; plain, ball burnished, and black e-coat. These master cylinders are designed primarily for manual applications and include the correct pushrod for the factory 64-72 brake pedal. They're designed for mount flanges from 3.22" to 3.40", which match the 64-72 factory manual master cylinder mount, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10" with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which includes brackets and stainless lines specifically for use with this master cylinder, see PN 260-13190, or 220-13189 for retrofit kit
