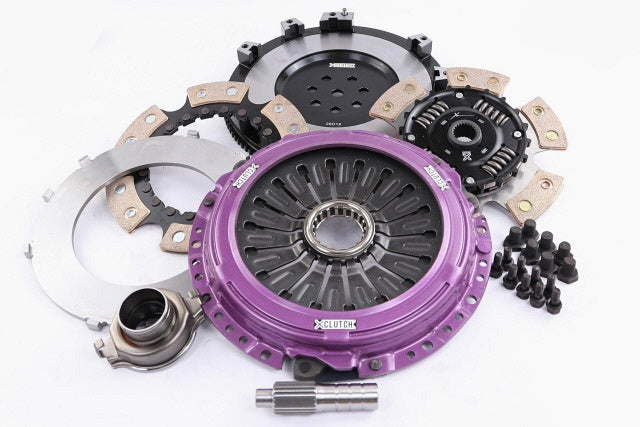

XClutch Stage 5 Twin Sprung Ceramic Clutch Kit | 1996-2006 Mitsubishi Evo 4-9 (XKMI23522-2B)

Mitsubishi Evo 4-9 Stage 5 Twin Sprung Ceramic Clutch Kit by XClutch

The 9" (230mm) range of XClutch kits are available in organic, ceramic and carbon and offer exceptional torque capacity for high powered vehicles. The twin disc organic range is ideal for high horsepower street use whilst the ceramic and carbon options are focused on track use where a higher heat capacity is often required.

These kits are available in twin or triple plate configurations depending on the application and all come with a lightweight, push type alloy cover.

These kits are also available for a variety of vehicles that utilise a pull type pressure plate from factory. These conversion kits come supplied with all of the components required to successfully convert the vehicle to push type.

Features

• Alignment Tool Included: Yes
• Clamping Force % Increase: N/A
• Clutch Disc Diameter: 9.055in
• Disc Material: Ceramic
• Disc Type: Sprung Solid
• Flywheel Bolts Included: Yes
• Flywheel Included: Yes
• Flywheel Step: -0.768in
• Friction Surface Configuration: Recessed
• Input Shaft Diameter: 1in
• Input Spline Quantity: 23
• Maximum Torque: 740ft-lb
• Pilot Bushing Included: No
• Pressure Plate Bolts Included: Yes
• Recommended Use: Track Use
• Release Bearing Included: Yes
• Spline Grease Included: Yes

Applications

• 1996-2006 Mitsubishi Evo 4-9

What's In The Box?

• 1 - XCLutch Stage 5 Twin Sprung Ceramic Clutch Kit

Warranty

• Manufacturer Standard Warranty
